Skylab M&C Technology Co., Ltd
文档信息 Document Information
标题 Title
文档类型 Document Type
文档编号 Document No.
版本日期 Version & Date
秘密等级 Security
1 / 7
SKB360_369_501_EVB
使用说明 User Manual
SKB360_369_501_EVB 使用说明 User Manual
使用说明 User Manual
SL-18030023
V1.01
公开 Open
Bluetooth Module User Manual Module
23-02 -2021
SKB360_SKB369_KB501_-DA-001,A/1
No.:SKB360_369_501_EVB
Advertisement
Related Manuals for Skylab SKB360 369 501 EVB
Summary of Contents for Skylab SKB360 369 501 EVB
- Page 1 Skylab M&C Technology Co., Ltd Bluetooth Module User Manual Module No.:SKB360_369_501_EVB SKB360_369_501_EVB 使用说明 User Manual 文档信息 Document Information SKB360_369_501_EVB 使用说明 User Manual 标题 Title 使用说明 User Manual 文档类型 Document Type SL-18030023 文档编号 Document No. V1.01 23-02 -2021 版本日期 Version & Date 公开...
- Page 2 SKYLAB is strictly prohibited. The information contained herein is provided “as is” and SKYLAB assumes no liability for the use of the information. No warranty, either express or implied, is given, including but not limited, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information.
- Page 3 Skylab M&C Technology Co., Ltd Bluetooth Module User Manual Module No.:SKB360_369_501_EVB 目 录 1 评估套件物料清单 Evaluation Kit Part List........................4 2 评估板基本功能说明 EVB basic function introduction....................4 3 EVB 驱动安装 EVB drive installation..........................6 4 联系我们 contact us................................7 3 / 7...
- Page 4 Skylab M&C Technology Co., Ltd Bluetooth Module User Manual Module No.:SKB360_369_501_EVB 1 评估套件物料清单 Evaluation Kit Part List SKB360_SKB369_SKB501_EVB 包含以下物料清单 The EVB including the following part list： 物料名称 物料编号 数量 备注 SKB360_SKB369_SKB501_EVB_5.0 28270 1PCS 16060 1PCS Micro USB 数据线 供电 supply power...

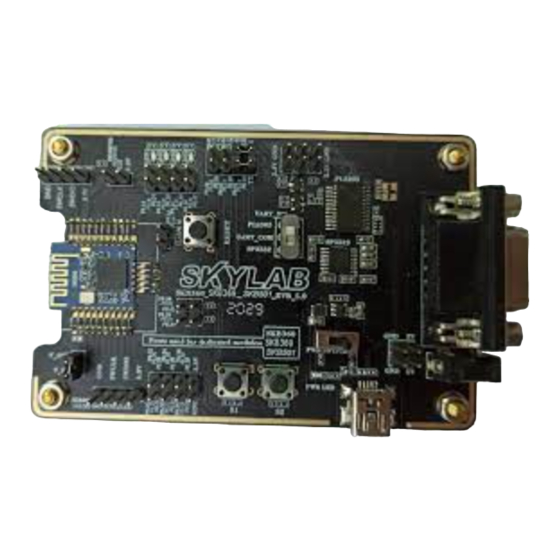

- Page 5 Skylab M&C Technology Co., Ltd Bluetooth Module User Manual Module No.:SKB360_369_501_EVB 评估板实物图 Real photo of EVB 编号 功能 描述 Function Description 模块 3.3V 供电跳帽 一般使用短路帽连接，断开后可以串联电流表测模块电流 Jumper for moudle 3.3V Shorten the 2pins with a jumper for general use. Remove the supply jumper and add a Ampemeter in series you can test the current.
- Page 6 Skylab M&C Technology Co., Ltd Bluetooth Module User Manual Module No.:SKB360_369_501_EVB bank of lights Used for I/O port debugging, low effiective 3.3V 电源 方便给外部提供电源 Power:3.3V 3.3V power supply for external modules 5V 电源 方便给外部提供电源 Power:5V 5.0V power supply for external modules 自定义按键，当...
- Page 7 Skylab M&C Technology Co., Ltd Bluetooth Module User Manual Module No.:SKB360_369_501_EVB PL2303_Prolific_ DriverInstaller_v1190.zip 4 联系我们 contact us 深圳市天工测控技术有限公司 Skylab M&C Technology Co., Ltd. 地址:深圳市龙华新区龙华办事处工业东路利金城科技工业园 9 栋 6 楼 Address: Floor 6, Building 9, Lijincheng Science and Technology Industrial Park, Gongye East Road, Longhua Office, Longhua New District, Shenzhen 电话...
