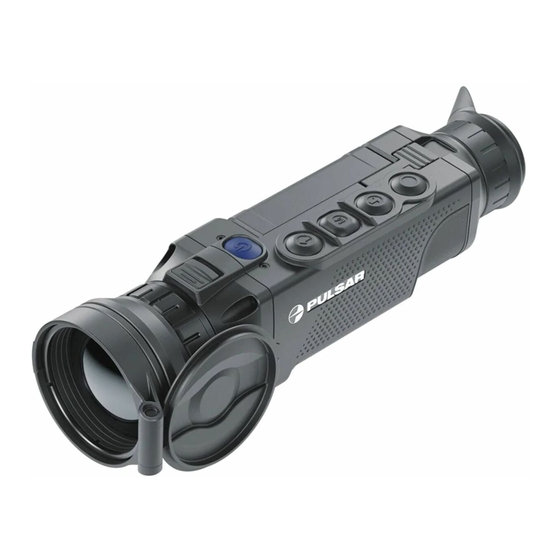

- Page 1 Quick Start Guide HELION 2 XP50 PRO Thermal Imaging Scopes...
- Page 2 Detailed product description and complete user manual are available for download on our official web-page: www.pulsar-nv.com/glo/products/33/thermal-imaging-scopes/helion-version-2/ Attention! Les imageurs thermique Helion nécessitent une licence s’ils sont exportés hors de votre pays. Compatibilité électromagnétique. Ce produit est conforme à la norme européenne EN 55032:2015, Classe A.
- Page 3 HELION Quick Start Guide Thermal Imaging Scope HELION 2 ENGLISH Imageur thermique HELION 2 6-10 FRANÇAIS Wärmebildgerät HELION 2 DEUTSCH 11-15 Monocular térmico HELION 2 16-20 ESPAÑOL Termovisore HELION 2 21-25 ITALIANO Тепловизор HELION 2 26-30 РУССКИЙ v.0321...
-
Page 4: Operation
ENGLISH Operation Powering on and image setup Open the lens cover (1). • Press the ON/OFF button (2) briefly to power the device on. • • Adjust the sharp resolution of the symbols on the display by rotating the dioptre adjustment ring of the eyepiece (3). Rotate the lens focus ring (4) to focus on the visual target. -
Page 5: Buttons Operation
Buttons Operation Button Device Status First Next Long short press short press press Button Device Turning on Sensor Switch display ON/OFF switched off device calibration off/ Switch device off Display off Turning on Sensor display calibration Device on Sensor calibration Navi- Normal Toggle observation modes... - Page 6 Lock the battery by lowering the lever (6). • Stream Vision App Download the Stream Vision app to stream the image via Wi-Fi from the display of your device to a smartphone or tablet. Detailed instructions are available on the Internet at: www.pulsar-vision.com ENGLISH...
-
Page 7: Specifications
Specifications MODEL HELION 2 XP50 PRO SKU 77431 MICROBOLOMETER Type uncooled Resolution, Pixels 1024x768 Pixel Pitch, µm NETD, mК < 25 Frame Rate, Hz OPTICAL SPECIFICATIONS Magnification, x 2.5 Smooth Digital Zoom, x 2.5 - 20 Digital Zoom, x x2/ x4/ x8 ... -
Page 8: Package Contents
• Carrying case • Hand strap • Quick start guide • Lens-cleaning cloth • Warranty sheet The current version of the User’s Manual can be found on the website www.pulsar-vision.com Repair of the device is possible within 5 years. ENGLISH...
