Fortin Electronic Systems INT-BMW-1 Installation Manual

INT-BMW-1
Copyright © 2006, FORTIN AUTO RADIO INC
BMW
Installation manual for vehicles equipped with manual transmission will be available soon.

VEHICLE FITGUIDE

VEHICLE FITGUIDE
VEHICLES
BMW
3 Series
5 Series
6 Series
7 Series

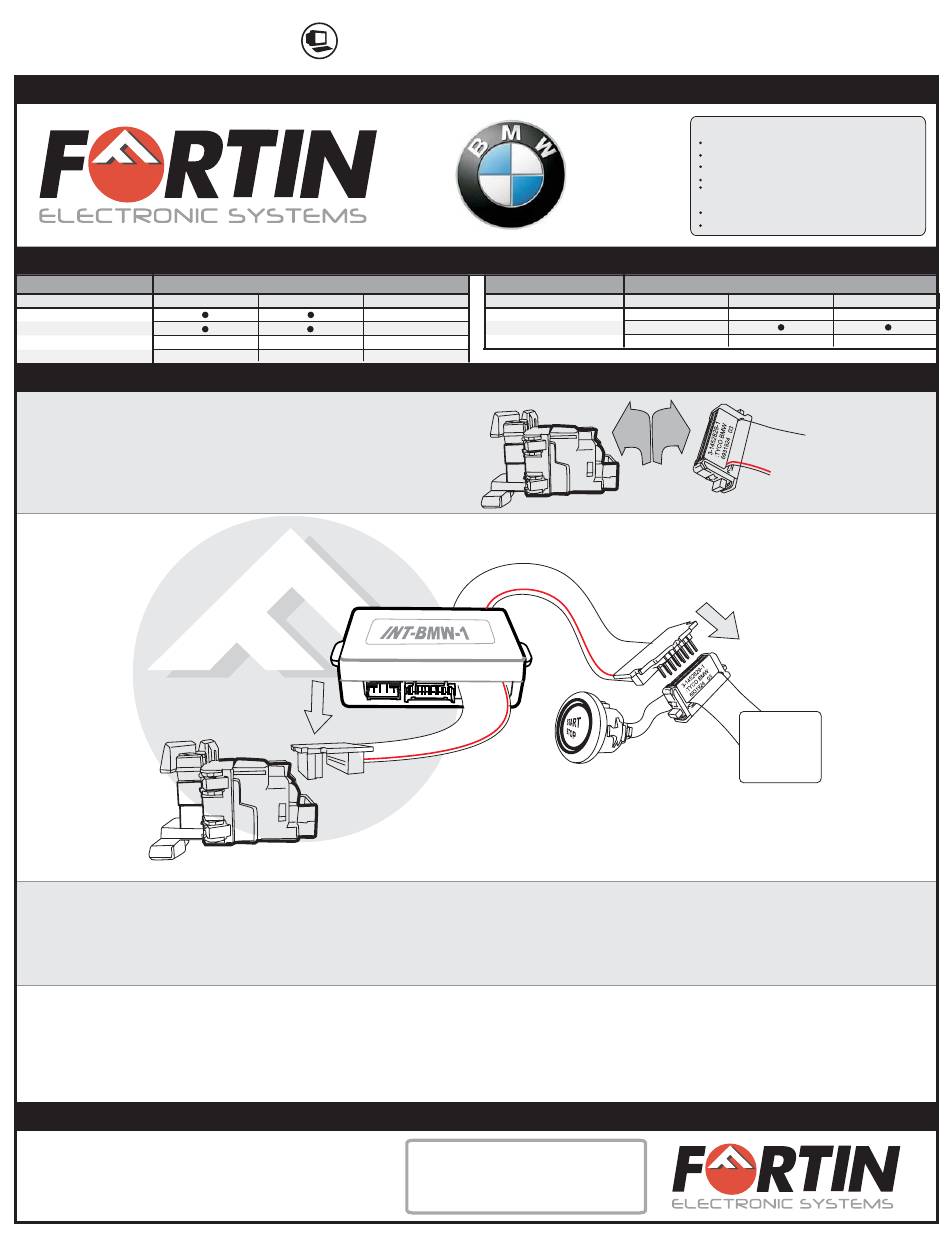

WIRING / CONNECTION GUIDE

WIRING / CONNECTION GUIDE
1
Disconnect the ribbon cable from
the ignition key barrel.
2
A. Connect the ribbon cable
from the INT-BMW 1
ignition key barrel.
Secure with a tiewrap or tape.
3
Smart key vehicle = Configuration 1 (page2)
(when you don't need
barrel to start the vehicle)
• After the vehicle is remote started, the INT-BMW-1 module will stop the engine as soon as the GROUND-OUT is removed.
4
• This feature will be cancelled when the UNLOCK button is pressed and a door is opened, thus allowing the brake pedal to be pressed without shuting
down the engine.
• This feature allows the driver to get into the vehicle and apply brake to disable the remote starter without starting the engine again.
Note: If the vehicle is remote started with the SMART-KEY inside the vehicle, the INT-BMW-1 module will not stop the engine
INFORMATION / TECHNICAL SUPPORT INFORMATION / TECHNICAL SUPPORT
Neither the manufacturer or distributor of this module is responsible of
damages of any kind indirectly or directly caused by this module, except for
the replacement of this module in case of manufacturing defects. This
module must be installed by qualified technician. This instruction guide
V
may change without notice. isit www.ifar.ca to get latest version.
WEB
UPDATE
COMPATIBLE
ALL RIGHTS RESERVED PATENTE PENDING
FOR PUSH TO START VEHICLES EQUIPPED WITH
YEARS OF VEHICLE COMPATIBILITY
2006 2007
? ?
? ?
Ignition key barrel
to the
A
Connector
Ignition key barrel
to put the key in the ignition
VEHICLES
BMW
2008
X3
X5
Z4
Push to start buton
Without Smart Key vehicle = Configuration 2 (page 3)
(when you need to put the key in the ignition barrel to start the vehicle)
Technical support
TEL: 514-255-HELP (4357)
FAX: 514-255-1367
Web: www.ifar.ca
INSTALLATION GUIDE
Made in Canada - Rev. H - 16 / 01 / 2008
W e b s i t e : h t t p : / / w w w . i f a r . c a
AUTOMATIC TRANSMISSION
Parts required

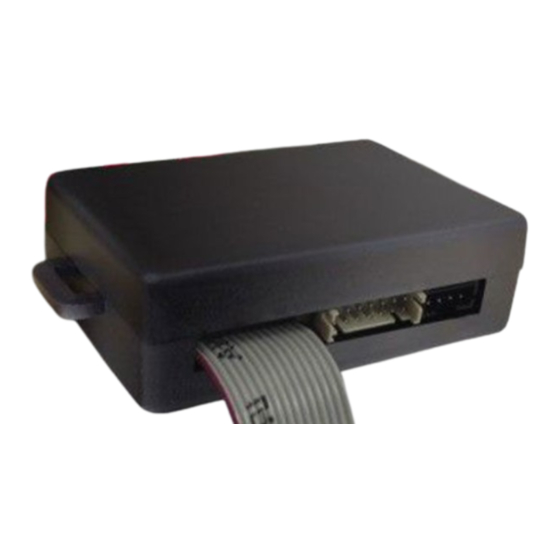

INT-BMW 1 Module
CAN-SL2 Module (V1.11)
Control membrane
Key required or smart key for vehicle equipped
Remote Starter compatible with
FORTIN Data Link
(1-way or 2-way)
Tiewraps, tape
YEARS OF VEHICLE COMPATIBILITY
2006 2007
?
?
?
Connector
B
B. Connect the ribbon cable from
the INT-BMW 1
from the BCM.
Secure with a tiewrap or tape.
Connector
Connector
BCM
2008
?
?
to the ribbon cable
P.1
