Summary of Contents for Sengoku MGN -110

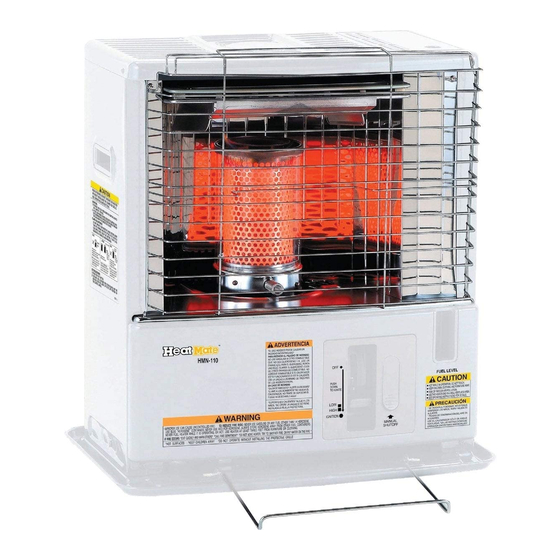

- Page 1 MANUAL SPANISH MANUAL INSIDE FRENCH MANUAL INSIDE MODEL CT-1200 MODEL MGN-110, CTN-110, HMN-110 MEMBER OF SENGOKU L.A., LTD. TORRANCE, CA 90503 877 - GET- HEAT www.SengokuLA.com 877 - 438 - 4328...
- Page 2 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! WARNINGS & CAUTIONS 1.WARNING: than 200 cubic feet (5.7 m ) of air space is FAILURE TO INSTALL, MAINTAIN, AND/OR provided for each 1,000 BTU per hour of heater OPERATE THIS KEROSENE HEATER ACCORD- rating (considering the maximum burner ING TO MANUFACTURER'S INSTRUCTIONS MAY adjustment), the door(s) to adjacent room(s) should...
-
Page 3: Table Of Contents
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! TABLE OF CONTENTS Page Page CAUTIONS ........1 STORAGE OF KEROSENE ● ● FEATURES ........2 HEATER ........12 ● SPECIFICATIONS ......2 EXPLODED PARTS ● ● PRECAUTIONS .......3 DRAWING ........14 ● USAGE ..........5 TROUBLE SHOOTING ●... -
Page 4: Precautions
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! PRECAUTIONS 1 FUEL This kerosene heater is designed to operate with No. 1-K kerosene ONLY. The use of any other kerosene, liquids that are flammable or non-flammable is dangerous. Improper fuel may contaminate the unit , influence its performance and may be a RISK of explosion, fire or bodily injury. -
Page 5: Usage
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 4 USAGE Wick does not have low or medium flame but burns in one position with blue flame about 1/2 inch high. (Refer to Fig. 15, Page 9) Ignite the wick in correct order, and confirm the wick is burning normally. Raising the wick too high ●... - Page 6 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! USAGE (A) Unpacking Remove the heater from the cardboard box. Remove all ● Front protections and packing materials. Remove the sticky tape guard from the protection grid and open it as described below: Cardboard 1.
- Page 7 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! (3) Improper kerosene a) Deteriorated kerosene may be caused by the following: Kerosene kept over from the preceding season. ● Kerosene stored for a long period of time in a sunlit place. ● Kerosene stored for a long period of time in a place of high temperature.
- Page 8 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! NOTE Extinguish the kerosene heater and refill the tank before the fuel reaches the ● bottom of the cartridge tank. (Fig. 10) Empty Full tank Adequate amount of small kerosene (stop amount of supplying kerosene kerosene)
- Page 9 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! (C) Ignition by a match A broken igniter wire or dead batteries should be replaced with new ones. When using matches, ● open the front guard and light as illustrated. (Fig. 13) Never leave a burnt match on the wick adjuster or horizontal reflector. Incomplete burning or fire ●...
-
Page 10: Daily Checks And Maintenance
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! WARNING: RISK OF INDOOR AIR POLUTION AND FIRE Do not operate your heater at a wick setting lower than the minimum wick-stop setting. If the heater is used at lower than the low wick stop, it may cause the generation of odor or Carbon Monoxide. - Page 11 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! Checking batteries ● In the event of low battery voltage (when the Ignition plug is normal), the Ignition plug will not spark enough. In this case, replace batteries. Check condition of wick (and how to replace, see Page 11.) ●...
-
Page 12: Replacement Of Parts
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! REPLACEMENT OF PARTS 1 WICK REPLACEMENT Wick replacement should be performed on a completely cooled heater after the cartridge tank has been removed and the remainder of the kerosene in the heater has been burned off. Remove the cartridge tank. - Page 13 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! Remove the wick Set the new wick to the wick Reinstall the wick from the wick holder. holder. (Mesh right side) holder to body. Push Round form Adjust Black line to the wick holder Step 13 Step 14 Step 15...
-
Page 14: Storage Of Kerosene Heater
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! Fill the cartridge tank with clean, pure 1-K kerosene. Place the cartridge tank in the heater and wait at least 60 minutes for kerosene to fully saturate the new wick. IMPORTANT! If this is not done air bubbles may form in the wick reducing its ability to draw up kerosene. -
Page 15: Exploded Parts Drawing
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! EXPLODED PARTS DRAWING NOTE SPECIFY MODEL NUMBER SERIAL NUMBER WHEN ORDERING PARTS. PICTURE PICTURE PART PART DESCRIPTION DESCRIPTION REFERENCE REFERENCE NUMBER NUMBER NUMBER NUMBER FILL CAP ASS'Y OS-CT101 WIND COVER OS-CT120 SPRING HINGE OS-CT102 IGNITION PLUG OS-CT121... -
Page 16: Trouble Shooting Guide
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! TROUBLE SHOOTING GUIDE TROUBLES ACTION TO BE TAKEN Heater Will Not Light Fill tank with water-clear 1-K kerosene. 1. Empty cartridge tank Drain tank. Remove wick assembly and replace 2. Water in kerosene wick.
