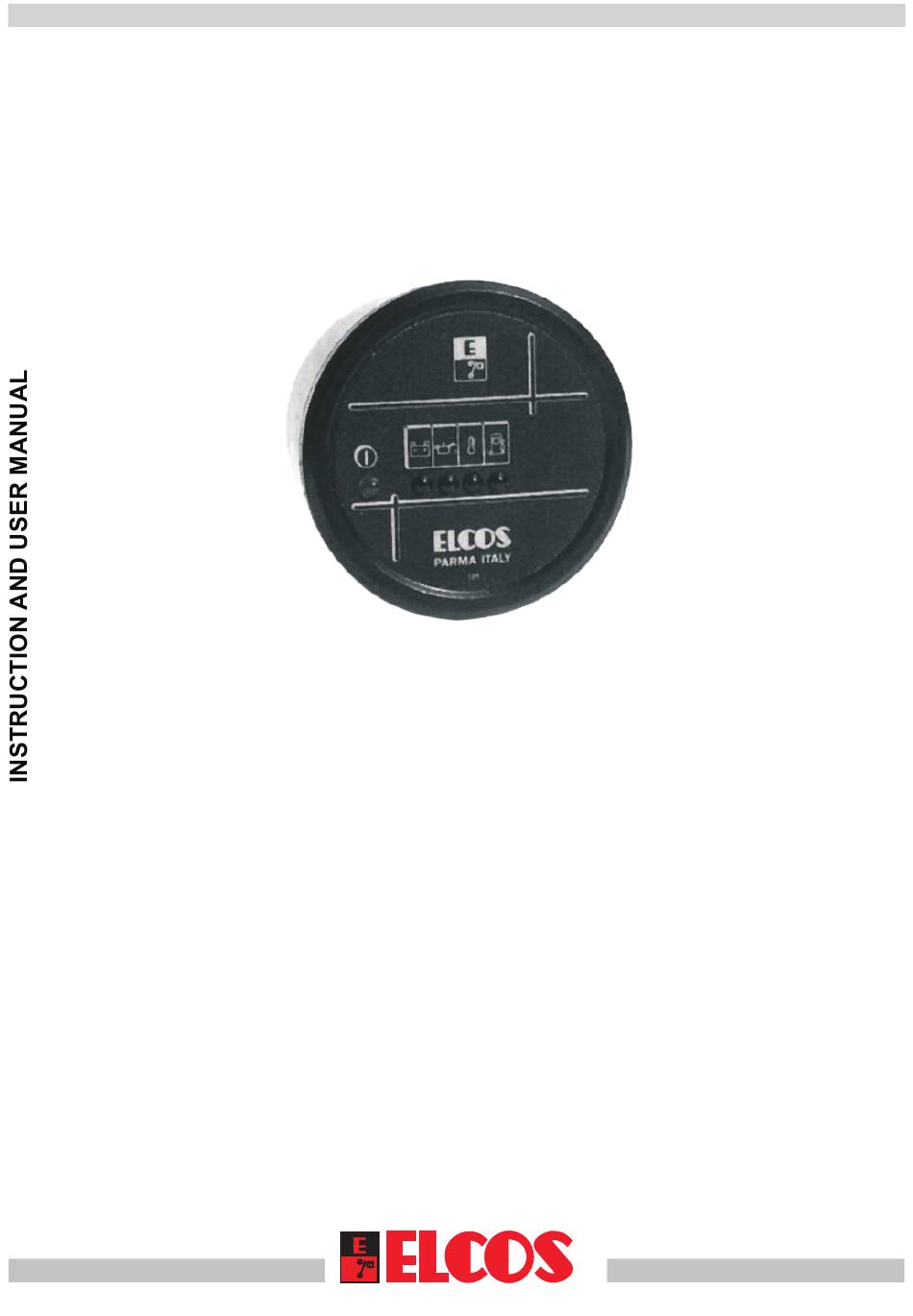

ENGINE PROTECTION DEVICE
DIP-804/00
TYPE
THE ENGINE IS STOPPED (VIA ELECTROMAGNET
OR SOLENOID) IN CASES OF ANOMALY FOR:
• INEFFICIENT BATTERY CHARGE ALTERNATOR (BELT BREAKAGE)
• LOW OIL PRESSURE
• OVERHEATING
• FUEL RESERVE (without stopping engine)
OIL AND BATTERY INDICATORS INTEGRATED INTO THE DEVICE
®
PARMA
ITALY
Tel. +39 0521/772021
Fax +39 0521/270218
E-mail: info@elcos.it - HTTP://www.elcos.it
GB DIP-804/00/2
1
Advertisement
Table of Contents
Related Manuals for ELCOS DIP-804/00
Summary of Contents for ELCOS DIP-804/00
- Page 1 • INEFFICIENT BATTERY CHARGE ALTERNATOR (BELT BREAKAGE) • LOW OIL PRESSURE • OVERHEATING • FUEL RESERVE (without stopping engine) OIL AND BATTERY INDICATORS INTEGRATED INTO THE DEVICE ® PARMA ITALY Tel. +39 0521/772021 Fax +39 0521/270218 E-mail: info@elcos.it - HTTP://www.elcos.it GB DIP-804/00/2...
- Page 2 ENGINE PROTECTION DEVICE TYPE DIP-804/00 This surveys the fonctioning of the diesel engine and stops it if there are anomalies in the parts controlled by probes. It has been designed to be installed in cavities in dashboards, electric panels, etc.
- Page 3 This can be obtained by mounting a visual and/or acoustic indicator externally connected to the relevant output. This is continuously activated if the protections or fuel reserve alarm intervene. RESET: This is obtained by turning the ignition key to zero. GB DIP-804/00 /2...
-
Page 4: Circuit Diagram
WARNING DO NOT CONNECT THE CHARGE CONTROL BULB INTO THE PLANT SEE "TWIN FUNCTION INDICATIONS" ON PAGE 3 FUSE FUSE 15/54 39 40 1 2 3 5 6 7 8 29 30 31 37 39 40 DIP-804/00 (BELT BREAKAGE) YELLOW YELLOW G R G B L C GB DIP-804/00 /2... - Page 5 (26) PERMANENT MAGNET CHARGE (2/7) DRIVE-EXCITED MAGNET OR SOLENOID ALTERNATOR REGULATOR OIL PRESSURE SWITCH (27) ALTERNATOR REGULATOR THERMOSTAT (28) PRE-EXCITATION CHARGE (16) FUEL FLOAT ALTERNATOR (48) HOUR COUNTER (40) STARTER MOTOR (157) INDICATOR (GENERAL ALARM) (41) BATTERY GB DIP-804/00 /2...
-
Page 6: Device Test
W TERMINAL OF THE FLOAT AND THE RELEVANT INDICATOR CONNECT IT TO EARTH WILL LIGHT UP WITHOUT STOPPING THE ENGINE NOTE WHEN THE SIMULATION HAS BEEN COMPLETED ENSURE THAT ALL OF THE CONNECTIONS ARE RETURNED TO THEIR ORIGINAL POSITIONS GB DIP-804/00 /2... - Page 7 THE ENGINE IS THERMOSTAT TOO HOT FUEL RESERVE NORMALLY THE W SUFFICIENT FUEL TERMINAL OF THE FLOAT IS NEGATIVE WHEN INSUFFICIENT THE FUEL IS FUEL RUNNING OUT FLOAT NOTE: WHEN THE TEST HAS BEEN COMPLETED RECONNECT THE PROBES GB DIP-804/00 /2...
-
Page 8: Troubleshooting
- Defective device - Check that during the stop phase there is voltage on terminal (5) (see STOP on page 3), simulate the function (see DEVICE TEST on page 5 and if necessary replace the device (*) GB DIP-804/00 /2... - Page 9 When your technician-electrician phones he must have the scheme on page 5 available together with the following information: - Type of equipment installed - Problem encountered - Condition of the indicators on the dashboard when the problem occurred - Any remedial interventions performed GB DIP-804/00 /2...
-
Page 10: Accessories Available On Request
ACCESSORIES AVAILABLE ON REQUEST SEE PAGE 5 ACCESSORIES DATA FOR ORDERING MOBILE SOCKETS ENGINE PROTECTION DEVICE type PMO-134/00 code 40804234 type DIP-804/00 12 V code 00030201 type DIP-804/00 24 V code 00030202 GB DIP-804/00 /2... -
Page 11: Technical Data
- MAXIMUM LOAD ON OUTPUT [7] (GENERAL ALARM) - TEMPERATURE RANGE -10 ÷ +60 °C - TERMINAL BOARD FASTON 6.35 × 0.8 - DEGREE OF PROTECTION: FOR THE ELECTRONICS IP 65 FOR THE TERMINAL BOARD IP 00 - WEIGHT 450 g GB DIP-804/00 /2... - Page 12 Remarks GB DIP-804/00 /2...
