Manual Operation Kit - AV-ACC-MK
Operate your vise through the control a one Touch action, a simple push-pull valve
GETTING TO KNOW YOUR OPERATIONS KIT:

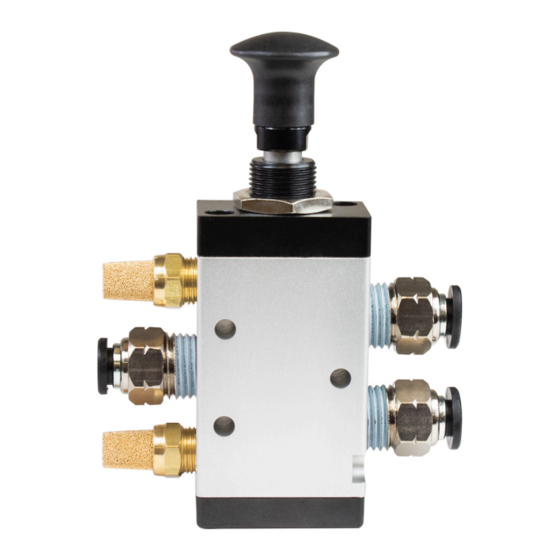

One Touch Action - Push/Pull Valve
AIR VISE & WORKHOLDING
11350 W Executive Dr.
Boise, ID 83713
WWW.AIRVISE.COM | INFO@AIRVISE.COM | 208-918-8473
ACC-MK-ID19
Regulator
Hardware
WWW.AIRVISE.COM
INFO@AIRVISE.COM
208-918-8473
AIR VISE & WORKHOLDING
Advertisement
Related Manuals for AW AV-ACC-MK
Summary of Contents for AW AV-ACC-MK
- Page 1 AIR VISE & WORKHOLDING WWW.AIRVISE.COM | INFO@AIRVISE.COM | 208-918-8473 Manual Operation Kit - AV-ACC-MK Operate your vise through the control a one Touch action, a simple push-pull valve GETTING TO KNOW YOUR OPERATIONS KIT: Regulator One Touch Action - Push/Pull Valve Hardware AIR VISE &...
- Page 2 AIR VISE & WORKHOLDING WWW.AIRVISE.COM | INFO@AIRVISE.COM | 208-918-8473 SETTING UP YOUR ONE TOUCH ACTION: 1. Connect Port 1 to regulated air supply. 2. Connect Port 2 to left Port on Vise Base. 3. Connect Port 4 to right Port on Vise Base. Air flow thru regulator Your operations kit and vise are set up and connected.
- Page 3 AIR VISE & WORKHOLDING WWW.AIRVISE.COM | INFO@AIRVISE.COM | 208-918-8473 Ensure regulator is supplied with shop air or machine air, set the pressure to the desired clamping force. OPERATING YOUR VISE: Utilizing the included Push-Pull valve, depress the button and the jaws will close, pull up on the button to open the jaws.
