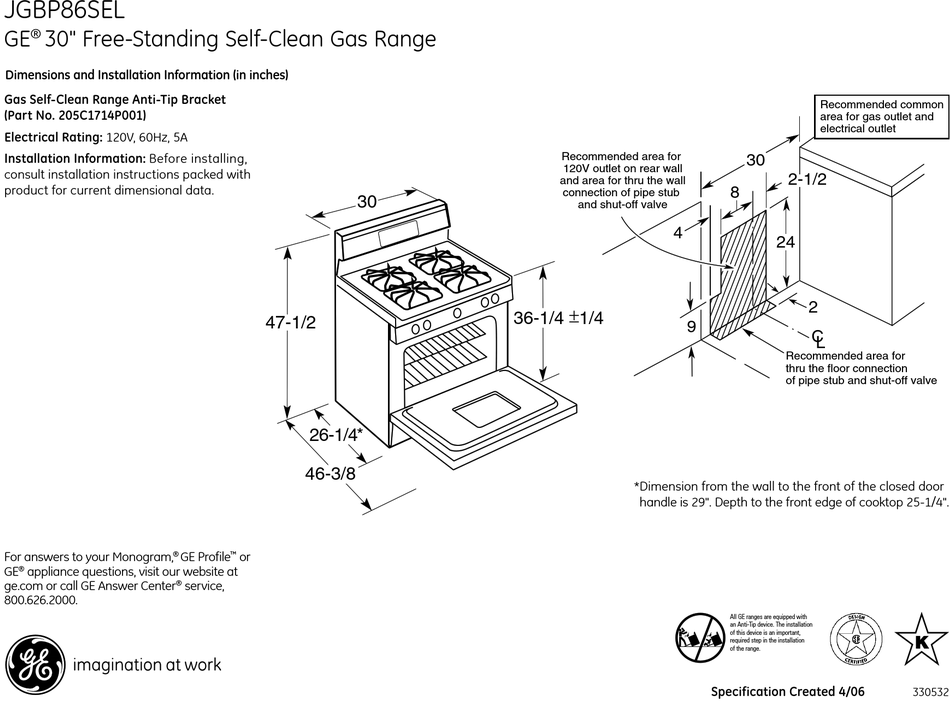

JGBP86SEL
GE
30" Free-Standing Self-Clean Gas Range
®
Dimensions and Installation Information (in inches)
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
47-1/2
26-1/4*
46-3/8
Installation Information (Dimensions in inches)
30
47-1/2
26-1/4*
46-3/8
or
service,
36-1/4 ± 1/4
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
36-1/4 ± 1/4
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
30
2-1/2
8
4
24
2
9
C L
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
* Dimension from the wall to the front of the closed door
handle is 29". Depth to the front edge of cooktop 25-1/4".
8
and shut-off valve
4
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
9
Specification Created 4/06
Recommended common
area for gas outlet and
electrical outlet
Recommended co
area for gas outlet
electrical outlet
30
2-1/2
24
2
C L
330532
Recommended area for
thru the floor connection
of pipe stub and shut-off v
