Honeywell HQA HB276HD2 Quick Installation Manual

Performance Series HQA HB276HD2
1080p Indoor/Outdoor IR Bullet Camera
Quick Installation Guide
Thank you for purchasing a Honeywell Performance Series HQA HB276HD2 camera.
Folow the instructions in this guide to install and set up your camera.
Cautions and Warnings
CAUTION
This device is configured for 12 V DC/24 V AC operation.
Do not connect to a higher voltage. Use only with NRTL-approved Class 2
power supplies.
CAUTION
IR emitted from this product. Do not view directly with
optical instruments. Do not stare directly into the lamp at a distance of less
than 3.3 ft (1 m).
CAUTION
Class 1 LED product. Invisible LED radiation (850 nm).
Avoid exposure to beam.
Important Safeguards
• Read and keep these instructions.
• Do not aim the camera toward a bright light source for extended periods to prevent
damage to the imager. Avoid operating the unit under or close to unstable light
sources or close to fluorescent lamps or objects reflecting light.
• Do not touch the camera lens.
• Do not drop the camera or subject it to physical shock.
• Do not use a strong or abrasive detergent when cleaning the camera.
• Avoid operating or storing the unit in extremely humid, dusty, or environments
where the operating temperature is outside the recommended range of –22°F to
140°F (–30°C to 60°C).

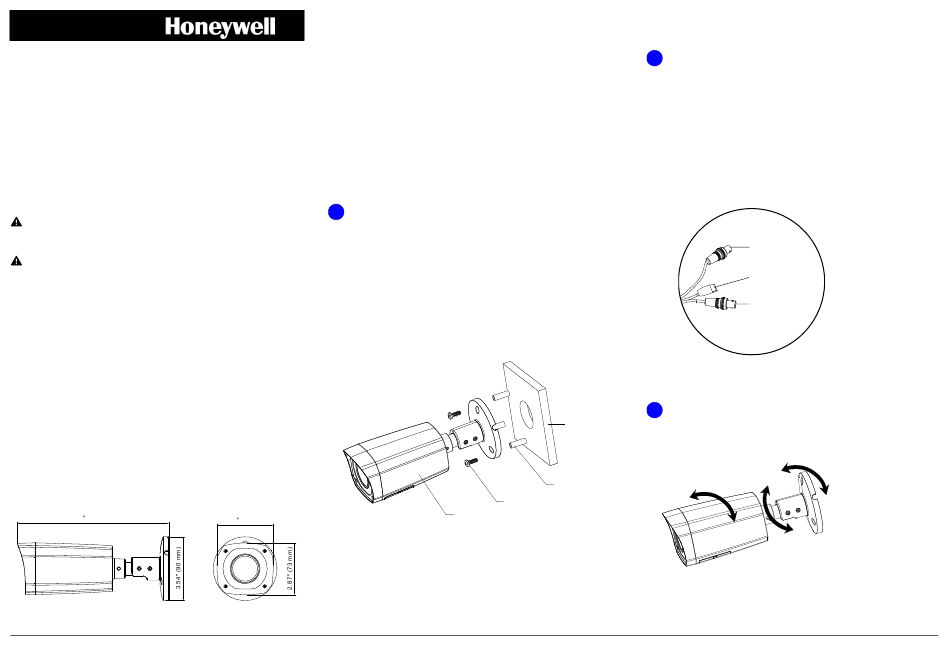

Dimensions
8.46 (215 mm)
Before You Begin
Before you begin, check that you have received all of the parts listed below. If any parts
are missing or damaged, contact your dealer immediately.
• Camera
Document 800-22069 — Rev B — 05/2016 • Quick Installation Guide
• Mounting template sticker
• Allen key (L-wrench)
Tools needed (not supplied):
• Cordless drill
1
Preparing the Mounting Surface
1. Inspect the site where you want to install the camera. The mounting surface must be
flat and capable of supporting at least three times the weight of the camera and
bracket.
Remove the backing from the mounting template sticker and affix the sticker to the
mounting surface.
Note
2. Drill three screw holes at the locations indicated on the mounting template sticker
and insert the three supplied plastic anchors in the holes.
3.15 (80 mm)
3. If you are flush mounting the camera and want to store the cables inside the wall or
ceiling, drill a hole in the center of the mounting template and then pull the power
and video cables through the hole.
• Self-tapping screws (4)
• Plastic anchors (4)
• Power connector
• Phillips screwdriver
If you are using the side exit for the cable, note the orientation of the cable
exit notch. In outdoor installations the notch should point downwards to
prevent water from entering the camera housing.
Self-tapping screw
Camera
2
Mounting the Camera
1. Connect the power and video cables.
a. Connect the power connector of the camera to a 12 V DC/24 V AC power source.
b. Make one of the following video cable connections:
• Connect the black BNC connector of the camera to a coaxial video cable
to get an HD (HQA) signal.
• Connect the yellow BNC connector of the camera to a coaxial video cable
to get an SD (CVBS) signal.
• Connect both black and yellow BNC connectors to two coaxial video
cables to get both HD and SD signals.
Note When WDR is enabled, only the HD signal is available.
2. Attach the camera to the mounting surface using the supplied screws (or other
suitable mounting hardware).
3
Aiming the Camera
Mounting
surface
1. Using the supplied Allen key, loosen the adjustment screws on the bracket arm.
2. Set the camera to the desired position.
Expansion bolt
3. Tighten the adjustment screws.
HB276HD2 Camera Quick Installation Guide
BNC (Black, HQA)
Power
(12 V DC/24 V AC)
BNC (Yellow, CVBS)
Document 800-22069 – Rev B – 05/2016
