Moog System 15 Instruction Manual page 23

K. 995 ATTENUATORS PANEL
The 995 ATTENUATORS PANEL provides the capability of attenuating, or lessening the
magnitude of up to three signals. The panel provides three separate attenuators when all input
jacks are used. However, the inputs are arranged in a top-to-bottom hierarchy which permits a

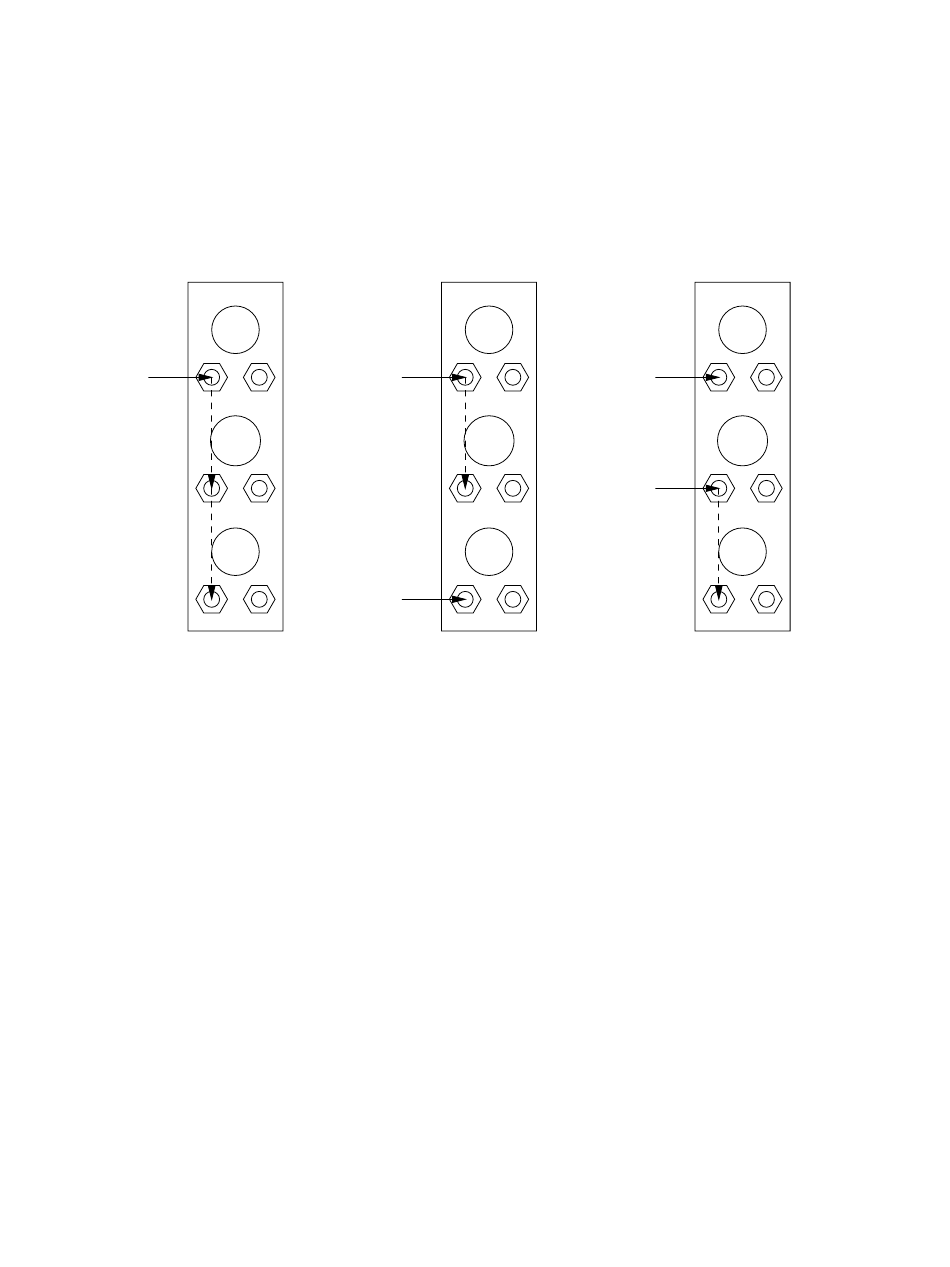

signal placed in the upper or middle input to appear at one or both lower inputs. The follow-
ing diagrams illustrate using signals X and Y.
This allows simultaneous attenuation of up to three signals, or capability of producing three
different attenuations of a single signal.
X
(X)
(X)
995
X
(X)
Y
995
X
Y
(Y)
995
