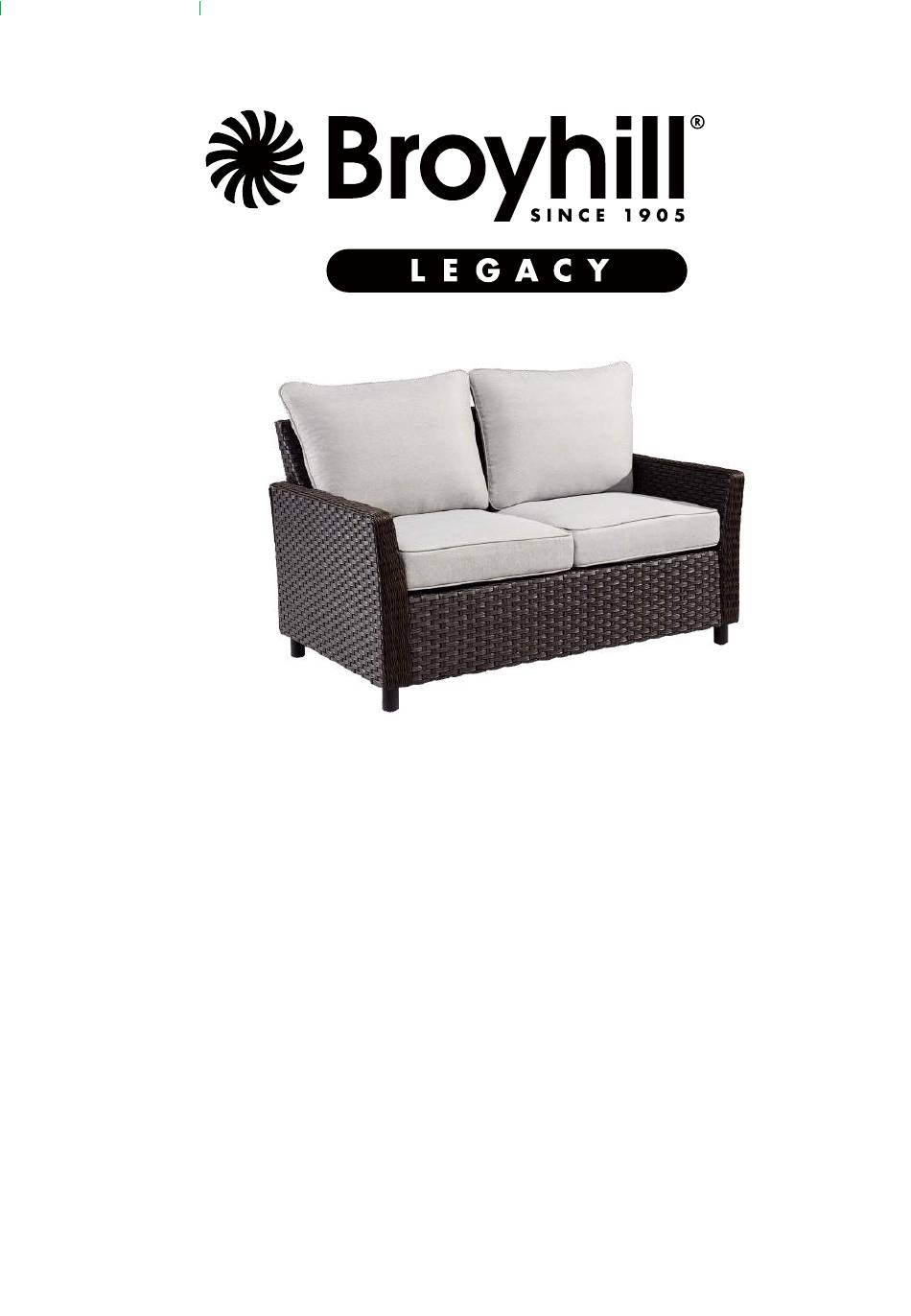

- Page 1 ASSEMBLY INSTRUCTION ITEM#: KVS9432 SKU#: 810487340 C A S T L E P I N E S 2 P E R S O N L O V E S E A T 1 (877) 539 – 7436 Need help? We are here for you! •...
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a at covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its letter in the package Helpful hints provided along the way Retain these assembly instructions for future reference...
- Page 3 PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY KVS9432-CS03-1 17FA05040301-YX BACK ASSEMBLY WASHER d6.5*D13*1.0 KVS9432-CS02-1 17D03A030301-YX SEAT ASSEMBLY JAM NUT M6*1.0 KVS9432-CS04-3 61K9432X00001BA LEFT BACK CUSHION 61K9432X50001BA 17C33A0712001YX RIGHT BACK CUSHION BOLT M6*35 17C33A0716001YX 61K9432Y00001BA BOLT M6*45 SEAT CUSHION Tools Ⅱ...
- Page 4 STEP 2 PARTS REQUIRED: 2, 3, 4 & 6 Keep the bolts loose. STEP 3 PARTS REQUIRED: 1, 2, 5, 6, & 7 Tighten all bolts by using the supplied Hex key. PAGE 3 OF 4 E-320...
- Page 5 STEP 4 PARTS REQUIRED: 8, 9, & 10 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from the service center. PAGE 4 OF 4 E-320...
