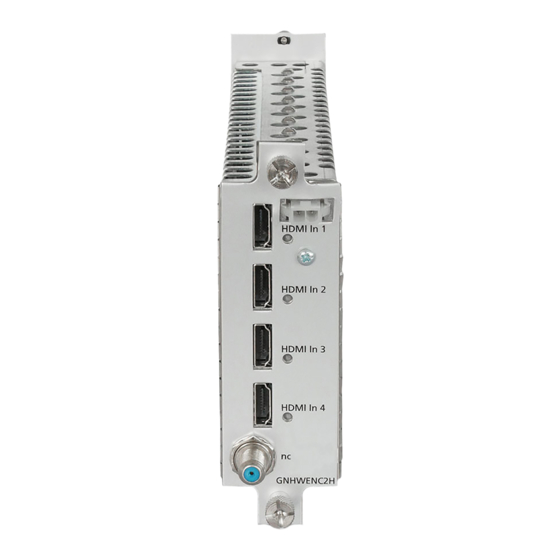

CHAMELEON GNHWENC2H 4x HDMI Encoder
Content
1
Safety and Agency Approvals ............................................................................................................... 2
2
Getting started ..................................................................................................................................... 2
3
Configure In- and Output...................................................................................................................... 4
4
Service Management ............................................................................................................................ 6
5
Important information and maintenance ............................................................................................ 8
6
Service and Support .............................................................................................................................. 8
NOTE:
This Quick Guide is used primarily for commissioning the unit at start-up by providing the parameters
necessary to start operation. Details for mechanical information, safety information, configuration
and handling of these products are provided in the manual and configuration guide.
©WISI Communications GmbH & Co. KG
Quick Guide for HDMI-Encoder
GNHWENC2H
www.wisi.de
Advertisement
Table of Contents
Related Manuals for Wisi CHAMELEON GNHWENC2H
Summary of Contents for Wisi CHAMELEON GNHWENC2H
- Page 1 Quick Guide for HDMI-Encoder GNHWENC2H 2017-01-12 JoeMe CHAMELEON GNHWENC2H 4x HDMI Encoder Content Safety and Agency Approvals ....................... 2 Getting started ............................. 2 Configure In- and Output........................4 Service Management ..........................6 Important information and maintenance .................... 8 Service and Support ..........................8...
- Page 2 After registration, the entitlement file must be uploaded to the CHAMELEON Encoder. 2.2 Assembling in base unit The CHAMELEON Encoder must be fitted in one of the base units that WISI provides. Following base units will be supported: GN50x Base unit with internal switch and controller for up to 10 modules, 3 HE ...
- Page 3 The assembled CHAMELEON Encoder is connected via the internal GT11 switch and is automatically shown on the left sight of the user menu (for example slot 8). A changing of the management IP address is by using the GN50x chassis not necessary. www.wisi.de ©WISI Communications GmbH & Co. KG...
- Page 4 4. If your settings were OK and the HDMI input signal is connected, the status will show you some basic information (HDCP encrypted, Video picture size, frame rate, Audio format) and the status. www.wisi.de ©WISI Communications GmbH & Co. KG...
- Page 5 5. Select the bit rate mode, CBR or VBR 6. Set the output bit rate (for CBR) 7. Select Network interface 8. Set the destination (streaming) address and port. 9. Click the “yellow tick” to save the settings www.wisi.de ©WISI Communications GmbH & Co. KG...
- Page 6 Default HD MPEG2 Default SD MPEG2 Our recommendation is to use these predefined and tested profiles for the first setup. For special settings you can change the default profiles or adding your own defined profile. www.wisi.de ©WISI Communications GmbH & Co. KG...
- Page 7 4.2 Connect an input service to an IPTV Output 1. Go to Service Management and select an encoding profile for each service. 2. Select Add input to an IPTV Output. 3. Check the output stream and data rate. www.wisi.de ©WISI Communications GmbH & Co. KG...
- Page 8 +49 7233 66-621 Telephone: +46 13 21 09 15 Visit www.wisiconnect.tv for more information about configuration, Software, Entitlements and Product information. WISI Communications GmbH & Co. KG Empfangs- und Verteiltechnik Wilhelm-Sihn-Strasse 5-7 Inland: Phone +49 7233-66-0 Fax -320 75223 Niefern-Öschelbronn...
