Robotc VEXnet Calibration Instructions

Setup

VEXnet Joystick

This document contains the procedure for calibrating the VEXnet Remote Control joysticks.

Some steps are time-sensitive, so it's recommended that you read through the instructions once

before following along.

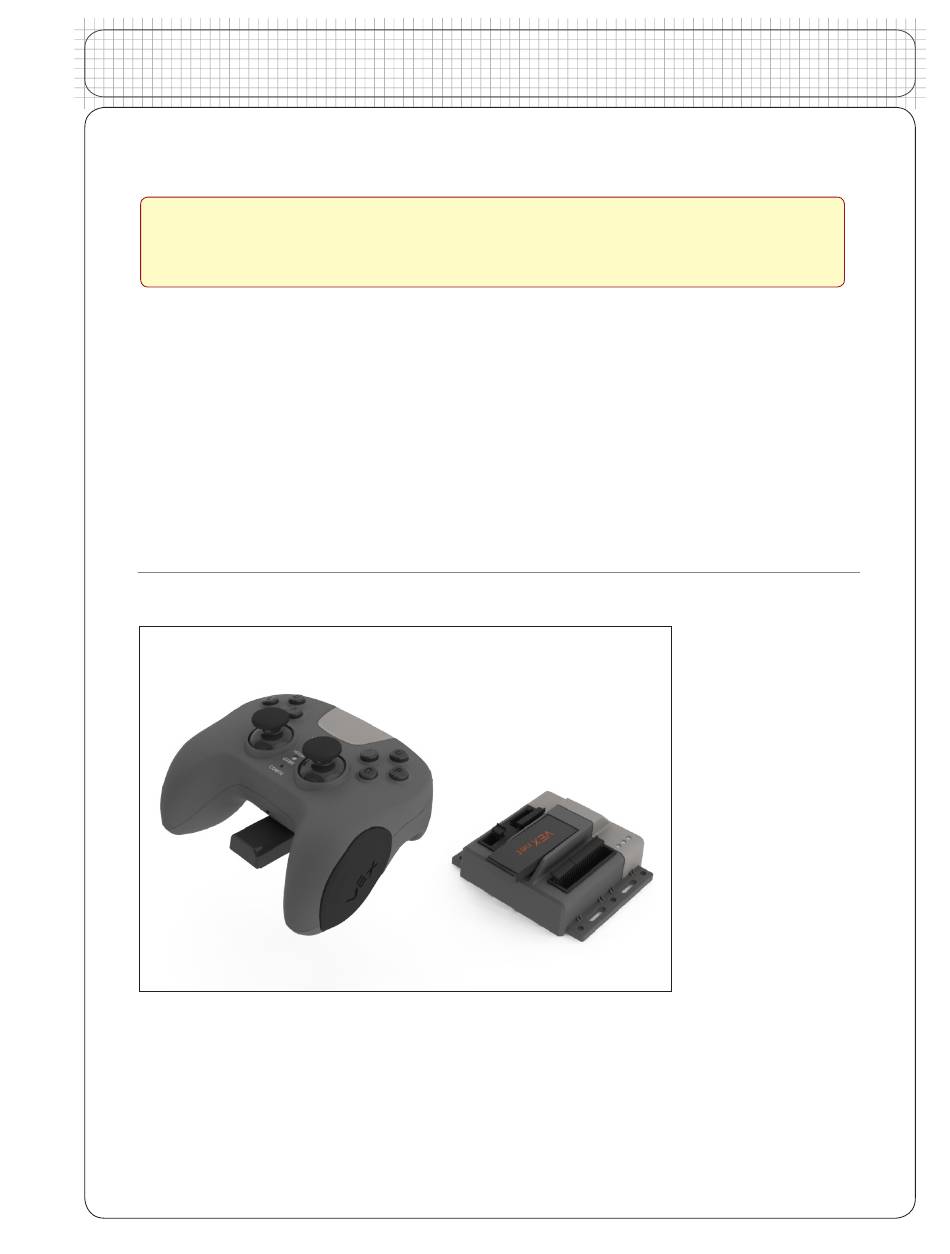

The VEXnet Remote Control includes two joysticks (each having an X and Y-axis), 8 buttons on

the front, and 4 additional trigger buttons on the top. Inside, there is also 3-Axis accelerometer,

capable of providing X-Y-Z acceleration values. Values from the joysticks, buttons, and

accelerometer are sent as a constant stream of information over VEXnet to the robot, enabling a

user to control the robot in real-time.

To ensure that the VEXnet Remote Control sends out accurate joystick values, the joysticks must be

calibrated before their first use, and after any firmware updates are applied to the remote control.

You will need:

• A VEXnet Remote Control with batteries

• A VEX Cortex with robot battery

• A small Allen wrench (1/16" or smaller) or paper clip

1. Power on the VEXnet Remote Control and VEX Cortex. Allow them to sync over VEXnet.

Calibration Instructions

Robotics Systems

VEXnet Joystick Calibration Instructions

ROBOTC

•

Table of Contents

Need help?

Do you have a question about the VEXnet and is the answer not in the manual?

Page 1 Some steps are time-sensitive, so it’s recommended that you read through the instructions once before following along. The VEXnet Remote Control includes two joysticks (each having an X and Y-axis), 8 buttons on the front, and 4 additional trigger buttons on the top. Inside, there is also 3-Axis accelerometer, capable of providing X-Y-Z acceleration values.
Page 2 CONFIG button. 3b. JOYSTICK LED Once the JOYSTICK LED begins to blink red and green, release both the 6U and CONFIG buttons. VEXnet Joystic Calibration Instructions • © 2010 Carnegie Mellon Robotics Academy / For use with VEX Robotics Systems ®...
Page 3 There is a 10 second time limit to complete steps 4 and 5. If they are not completed in time, the calibration process will timeout and the VEXnet LED will blink red briefly. 4. Move both joysticks through their full ranges of motion. When the remote control detects that the joysticks have been fully rotated, the JOYSTICK LED stops blinking red and green, and switches to a solid green.
Page 4 VEXnet LED will blink red. • To cancel a calibration, press the 7U button. The calibration process will be discontinued and the VEXnet LED will blink red. • Once the calibration is discontinued or saved, all of the remote control LEDs will resume their normal function.
