ROBOTC
Setup
VEXnet Joystick Calibration
Instructions
In this document, you will learn how to calibrate the VEXnet Joystick

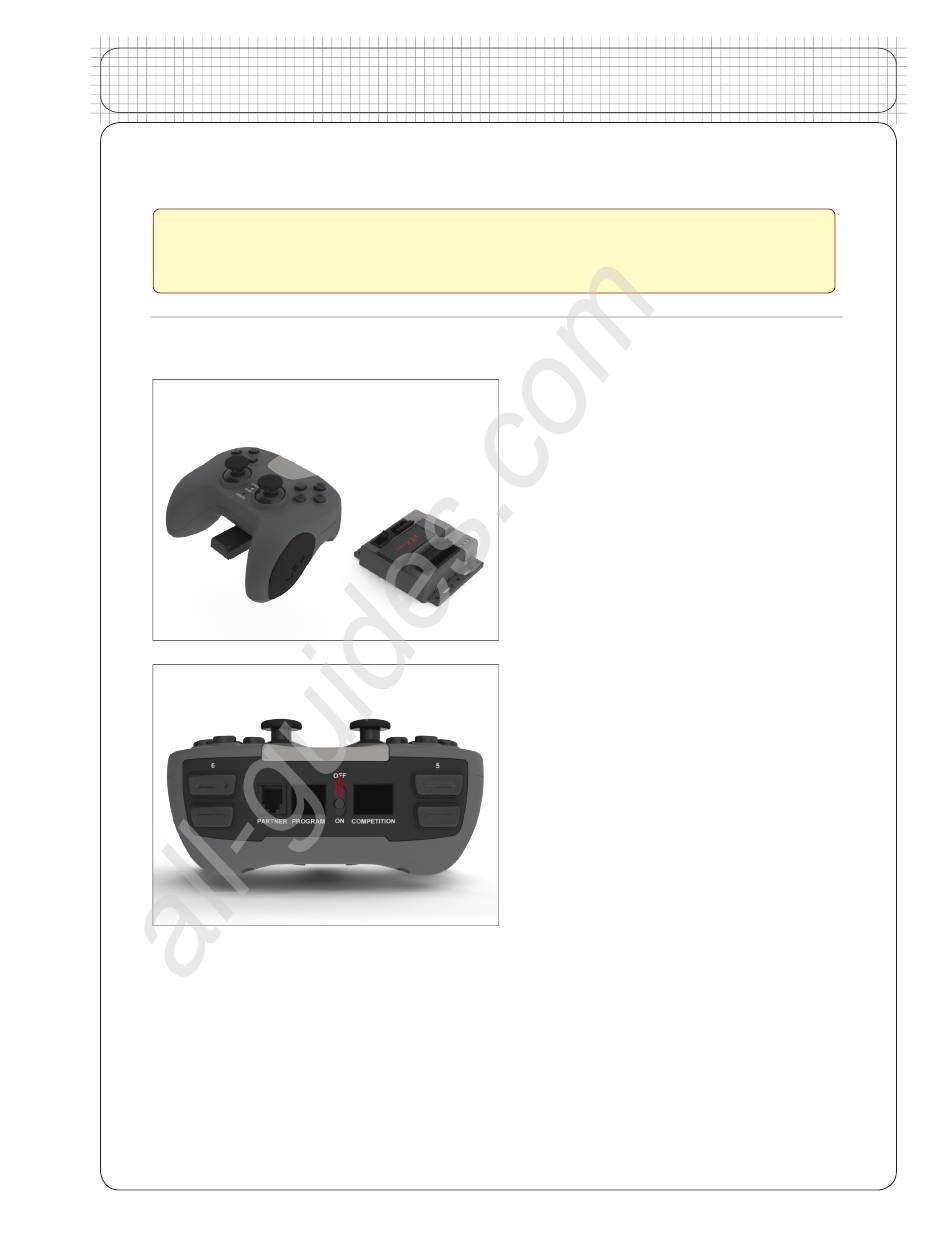

Step 1.Prepare the VEXnet Remote Control and VEX Cortex
1a. Make Sure the VEXnet Remote Control and VEX Cortex are
linked by the VEXnet keys
1b. Turn on the VEXnet Remote Control
VEXnet Joystick Calibration Instructions
•
1
© Carnegie Mellon Robotics Academy / For use with VEX
Robotics Systems
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Robotc VEXnet Joystick
Summary of Contents for Robotc VEXnet Joystick
- Page 1 Setup VEXnet Joystick Calibration Instructions In this document, you will learn how to calibrate the VEXnet Joystick Step 1.Prepare the VEXnet Remote Control and VEX Cortex 1a. Make Sure the VEXnet Remote Control and VEX Cortex are linked by the VEXnet keys 1b.
- Page 2 All manuals and user guides at all-guides.com ROBOTC Setup VEXnet Joystick Calibration Instructions (cont.) Step 2. Start the Calibration 2a. Hold down the “6U “ button 2b. Keeping the “6U” button depressed, use a small Allen Wrench (1/16” or smaller) or similar small tool to press and hold the CONFIG Button 2c. Hold the buttons until the Joystick LED flashes red and...
- Page 3 All manuals and user guides at all-guides.com ROBOTC Setup VEXnet Joystick Calibration Instructions (cont.) 2d. Release the CONFIG button and the “6U “ button. Step 3. Calibrate 3a. Move both Joysticks the the maximum position desired in all 4 directions •...
- Page 4 All manuals and user guides at all-guides.com ROBOTC Setup VEXnet Joystick Calibration Instructions (cont.) Step 4. Complete the Calibration 4a. To save the calibration, press and release the “8U” button. • If the calibration is saved, the joystick LED will start to quickly flash green for several seconds.
