Robotc VEXnet Calibration Instructions

ROBOTC

Setup

VEXnet Joystick Calibration

Instructions

In this document, you will learn how to calibrate the VEXnet Joystick

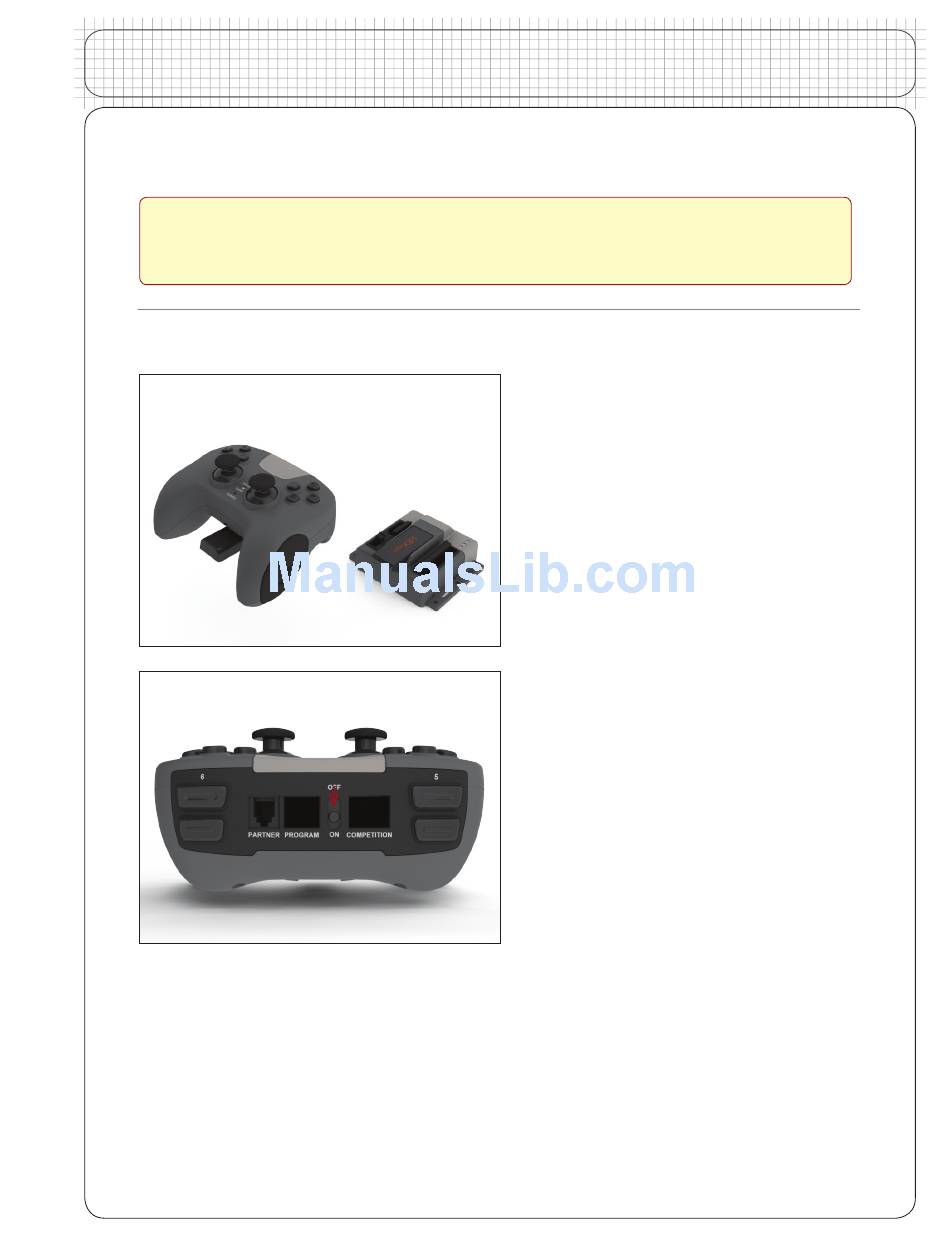

Step 1.Prepare the VEXnet Remote Control and VEX Cortex

1a. Make Sure the VEXnet Remote Control and VEX Cortex are

linked by the VEXnet keys

1b. Turn on the VEXnet Remote Control

Robotics Systems

VEXnet Joystick Calibration Instructions

•

Table of Contents

Need help?

Do you have a question about the VEXnet and is the answer not in the manual?

Page 1 Setup VEXnet Joystick Calibration Instructions In this document, you will learn how to calibrate the VEXnet Joystick Step 1.Prepare the VEXnet Remote Control and VEX Cortex 1a. Make Sure the VEXnet Remote Control and VEX Cortex are linked by the VEXnet keys 1b.
Page 2 2b. Keeping the “6U” button depressed, use a small Allen Wrench (1/16” or smaller) or similar small tool to press and hold the CONFIG Button 2c. Hold the buttons until the Joystick LED flashes red and green VEXnet Joystic Calibration Instructions • © Carnegie Mellon Robotics Academy / For use with VEX Robotics Systems ®...
Page 3 3b. After movement has been detected in all 4 directions, the Joystick LED will be solid green. The Utility can be found at http://www.vexforum.com/ wiki/index.php/VEXnet_Upgrade Click the VEXnet Firmware Upgrade Utility link VEXnet Joystic Calibration Instructions • © Carnegie Mellon Robotics Academy / For use with VEX Robotics Systems ®...
Page 4 4c. The Joystick LED will resume its normal function after the VEXnet LED stops flashing. • If the Joystick Master Firmware is downloaded to the joystick, the joystick will need to be re-calibrated. VEXnet Joystic Calibration Instructions • © Carnegie Mellon Robotics Academy / For use with VEX Robotics Systems ®...
