GE JB640MRBS Dimensions And Installation Information

JB640MR
GE 30" Free-Standing Electric Range
®

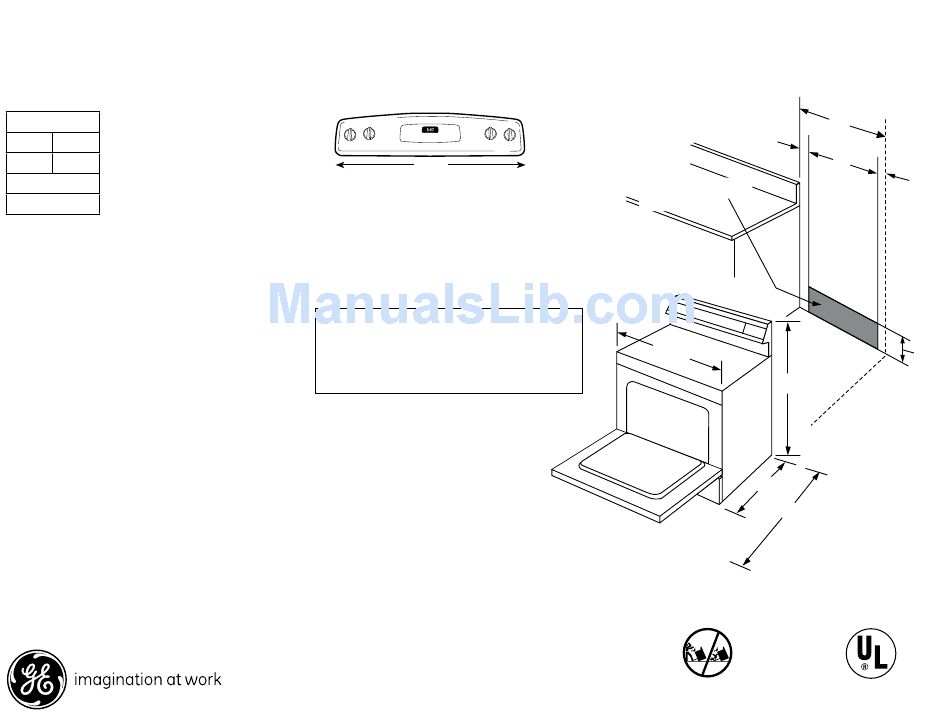

Dimensions and Installation Information (in inches)
KW Rating
240V
10.5
208V 7.9
Breaker Size
40 Amps
†
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical
Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range.
Receptacle Locations: Locally approved flexible
service cord or conduit must be used because
terminals are not accessible after range installation.
See shaded area in drawing for location of electrical
outlet box. Recommended outlet locations allow
range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for
0" spacing from adjacent walls below countertops.
To reduce possibility of scorching walls, engineering
recommends a minimum of 1-1/2" spacing to allow
for possible extended, high-heat, no-load heating
element operation.
Installation information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, all GE
Profile free-standing electric and gas ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
or
™
®
30-7/8"
Acceptable electrical
outlet area
30_install_fse_ge.eps
2-1/2
30_install_fse_ge.eps
Acceptable electrical
outlet area
2-1/2
29-7/8
46-7/8
29-7/8
25-3/8
46-7/8
47-5/8
25-3/8
All GE ranges are equipped with
47-5/8
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 3/10
30
25
2-1/2
30
25
2-1/2
7-1/2
Dimension from wall to front of
closed oven door handle is 27-3/4
7-1/2
Dimension from wall to front of
closed oven door handle is 27-3/4.
Listed by
Underwriters
Laboratories
321599
