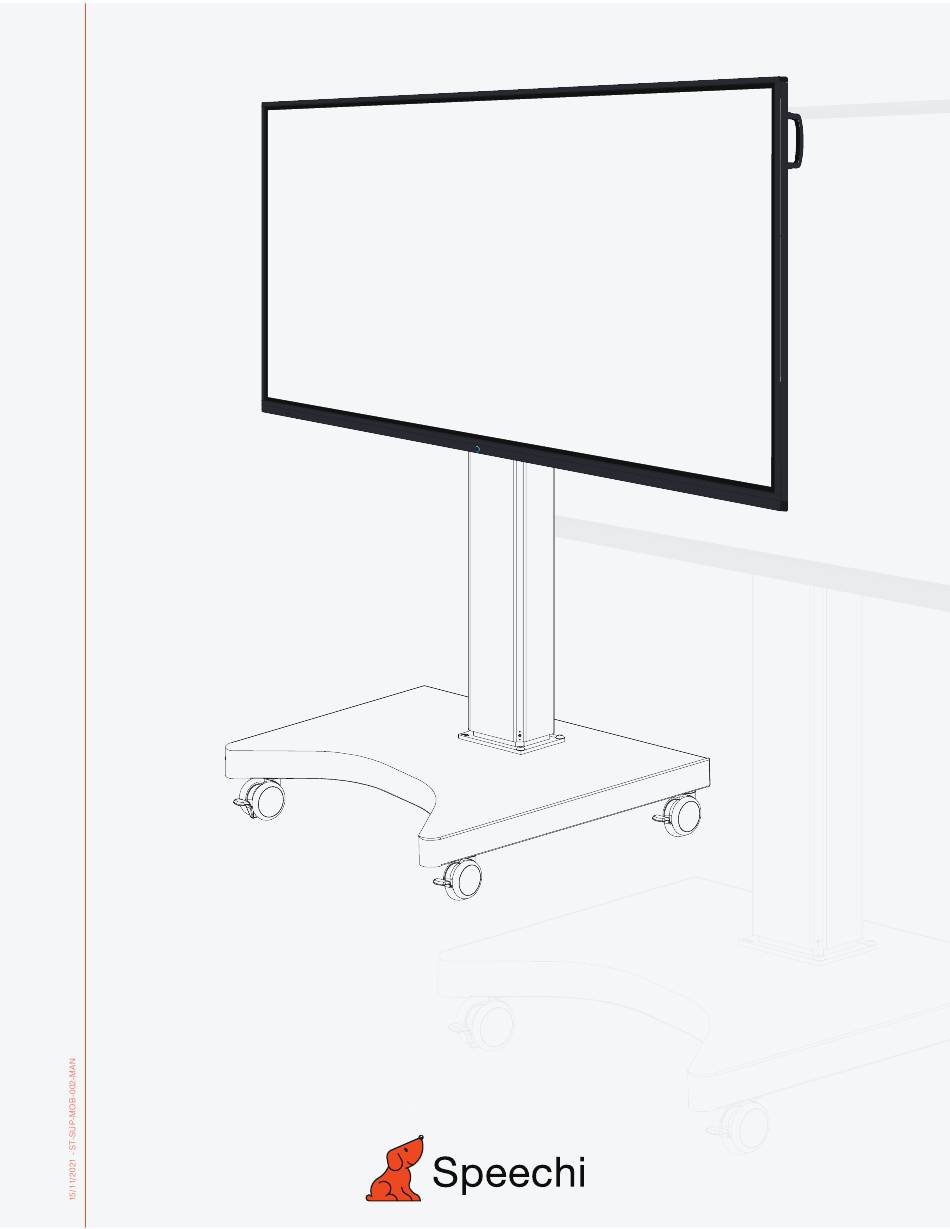

- Page 1 INSTALLATION MANUAL ST-SUP-MOB-002...
-
Page 2: Table Of Contents
ST-SUP-MOB-002 - INSTALLATION MANUAL V.01 Content Packing Items ..............................3 Packing Box 1 ............................3 Packing Box 2 ............................3 Screw Items ..............................4 Tools Needed ........ -
Page 3: Packing Items
ST-SUP-MOB-002 - INSTALLATION MANUAL V.01 Packing Items Packing Box 1 Stand Mounting Vertical Support N otebook Stand Packing Box 2 Stand Base Page 3 of 10... -
Page 4: Screw Items
ST-SUP-MOB-002 - INSTALLATION MANUAL V.01 Screw Items M6/M8*20mm M6/M8 M10*12mm M6*8mm x 16 M10*75mm M8*20mm M6*45mm Tools Needed Cross Screwdriver M6 Hex wrench M5 Hex Wrench M4 Hex Wrench Page 4 of 10... -
Page 5: Installation Instruction
ST-SUP-MOB-002 - INSTALLATION MANUAL V.01 Installation Instruction Step 1: Screw for picking the two mental plates out. ----------------------------------------------------------------------------------------------------------------------------- ------------ Page 5 of 10... - Page 6 ST-SUP-MOB-002 - INSTALLATION MANUAL V.01 Step 2: Push the two electric cords of the vertical support to the center hole of the stand base Step 3: Fix the vertical support onto the stand base M10*75mm Screws x 4 units Page 6 of 10...
- Page 7 ST-SUP-MOB-002 - INSTALLATION MANUAL V.01 Step 4: Plug the cords into the ports through the holes Step 5: Screw the two metal plates back and rotate the stand vertically Page 7 of 10...
- Page 8 ST-SUP-MOB-002 - INSTALLATION MANUAL V.01 Step 6: Fix the stand mounting onto the vertical support M10*12mm Screws x 4 units M6*8mm Screws x 2 units Step 7: Fix the note book stand onto the vertical support M6*6mm Screws x 4 units...
- Page 9 ST-SUP-MOB-002 - INSTALLATION MANUAL V.01 Step 8: Hang the TV panel onto the stand Final View Page 9 of 10...
-
Page 10: Notices
ST-SUP-MOB-002 - INSTALLATION MANUAL V.01 Notices Every effort has been made to ensure all information contained in this user guide is correct, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application.
