SPE-VI-51
DOCUMENT CAMERA
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPE-VI-51 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speechi SPE-VI-51

Summary of Contents for Speechi SPE-VI-51

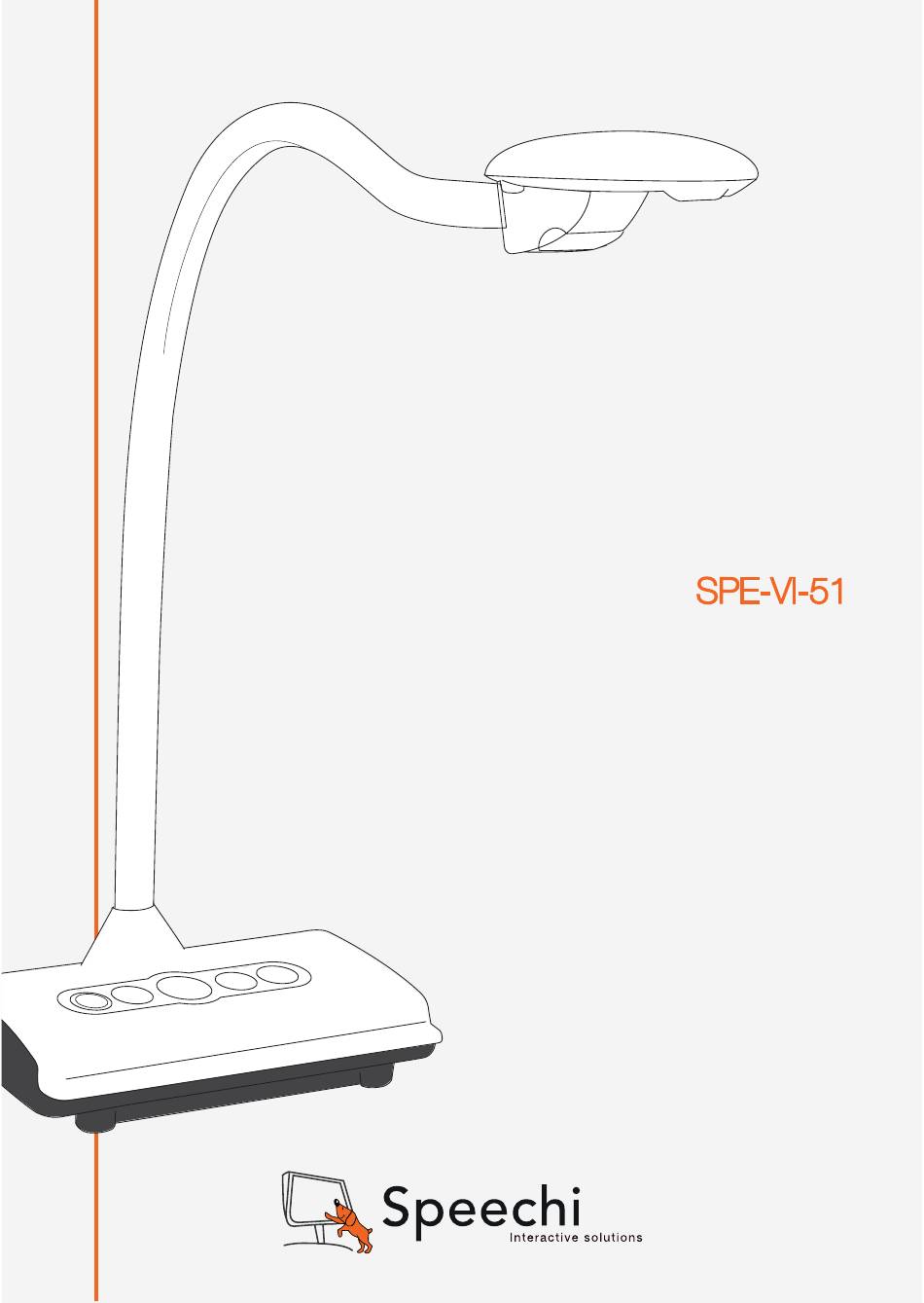

  • Page 1 SPE-VI-51 DOCUMENT CAMERA USER MANUAL...
  • Page 2 • Welcome: Thanks for purchasing this product. Please read the instructions carefully before using this product. • FCC Compliance Statement (Class A): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received;...
  • Page 3 Warning 1. Do not look directly at the LED light source, which may cause retinal damage. 2. Carry the product by holding the base of the main unit in both hands. Never hold the product by the arm or the camera head only. 3.

  • Page 4: Preparing The Document Camera

    Preparing the Document Camera Knowing the Document Camera Parts Gooseneck Arm Focus Button LED Lamp Brightness Adjusting Button Microphone USB Port Camera Head Anititheft Slot Lamp Button...
  • Page 5 Setting Up This section provides useful tips on how to adjust the document camera smoothly for your needs. Working Area 11.69” Height 18.5” for Max. working Minimum height 3.94” (16.54”x 11.69”)

  • Page 6: Adjusting Focus

    Illumination Lamp Adjusting Focus If you are in a dark environment, please Press Focus button to do an one-time turn the LED lamp on to make better auto focus. exposure. Adjusting Brightness Press Brightness button to increase or decrease the brightness level. Anti-glare Anti-glare sheet is a transparent plastic that is overlaid on top of shiny object or glossy surface to reduce the glare.

  • Page 7: Basic Operation

    Basic Operation Using Document Camera as a PC cam Starting the application 1. Connect the document camera to your computer Turn on your computer then connect the accessory USB cable to the USB port of your computer. Make sure the connector and the port are aligned correctly. 2.

  • Page 8: Advance Operation

    Advance Operation Connect to a microscope Connect to a microscope enables you to examine microscopic objects on a big screen. 1. Adjust the microscope and focus objects. 2. Choose an appropriate micoscope adapter. 3. Microscope adapter accessaries are applicable to Ø28mm ,Ø31mm, Ø33mm, and Ø34mm eyepieces.
  • Page 9 5. Connect the lens with microscope adapter to the microscope. If the image is not clear. Please adjust the focus of microcope. Press the Focus button to fine-tune the focus.
  • Page 10 Storing 1. Close the application software. 2. Remove USB cable from the document camera and computer. 3. Fold the camera head and arms in the direction shown in the figure.

  • Page 11: Troubleshooting

    Troubleshooting When using the document camera : Problem Cause Solution Re-connect the USB cable The USB cable is not cor- with the document camera. Cannot be powered on rectly connected to the normally. computer or computer may have crashed. Restart the computer. The document camera is Re-connect the USB cable not correctly connected to with the document camera.
