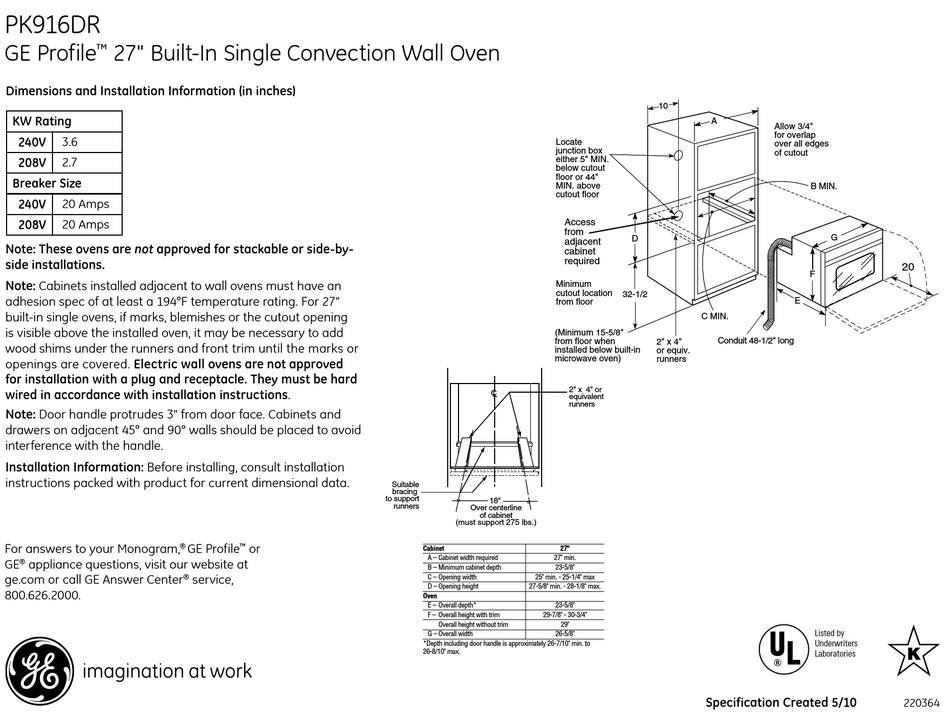

PK916DR
GE Profile
27" Built-In Single Convection Wall Oven
™
Dimensions and Installation Information (in inches)
KW Rating
240V
3.6
208V
2.7
Breaker Size
240V
20 Amps
208V
20 Amps
Note: These ovens are not approved for stackable or side-by-
side installations.
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating. For 27"
built-in single ovens, if marks, blemishes or the cutout opening
is visible above the installed oven, it may be necessary to add
wood shims under the runners and front trim until the marks or
openings are covered. Electric wall ovens are not approved
10
for installation with a plug and receptacle. They must be hard
A
wired in accordance with installation instructions.
Locate
Note: Door handle protrudes 3" from door face. Cabinets and
junction box
either 5" MIN.
below cutout
drawers on adjacent 45° and 90° walls should be placed to avoid
floor or 44"
interference with the handle.
MIN. above
cutout floor
Installation Information: Before installing, consult installation
Access
instructions packed with product for current dimensional data.
from
D
adjacent
cabinet
required
Minimum
cutout location
32-1/2
For answers to your Monogram,
®
from floor
GE
appliance questions, visit our website at
C MIN.
®
(Minimum 15-5/8"
ge.com or call GE Answer Center
from floor when
2" x 4"
Conduit 48-1/2" long
800.626.2000.
installed below built-in
or equiv.
microwave oven)
runners
Allow 3/4"
for overlap
over all edges
of cutout
B MIN.
G
F
GE Profile
™
or
E
service,
®
Locate
junction box
either 5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor
Minimum
cutout location
from floor
(Minimum 15-5/8"
from floor when
installed below built-in
microwave oven)
C L
Suitable
bracing
to support
18"
runners
Over centerline
of cabinet
(must support 275 lbs.)
Cabinet
27"
A – Cabinet width required
27" min.
B – Minimum cabinet depth
23-5/8"
C – Opening width
25" min. - 25-1/4" max
D – Opening height
27-5/8" min. - 28-1/8" max.
Oven
E – Overall depth*
23-5/8"
F – Overall height with trim
29-7/8" - 30-3/4"
Overall height without trim
29"
G – Overall width
26-5/8"
*Depth including door handle is approximately 26-7/10" min. to
26-8/10" max.
10
A
Access
from
D
adjacent
cabinet
required
32-1/2
C MIN.
Conduit 48-1/2" long
2" x 4"
or equiv.
runners
2" x 4" or
equivalent
runners
Specification Created 5/10
Allow 3/4"
for overlap
over all edges
of cutout
B MIN.
G
F
E
Listed by
Underwriters
Laboratories
220364
Suitab
bracin
to suppo
runne
