GE Profile Advantium PSB1000N Dimensions

PSB1000NBB/WW
GE Profile Advantium

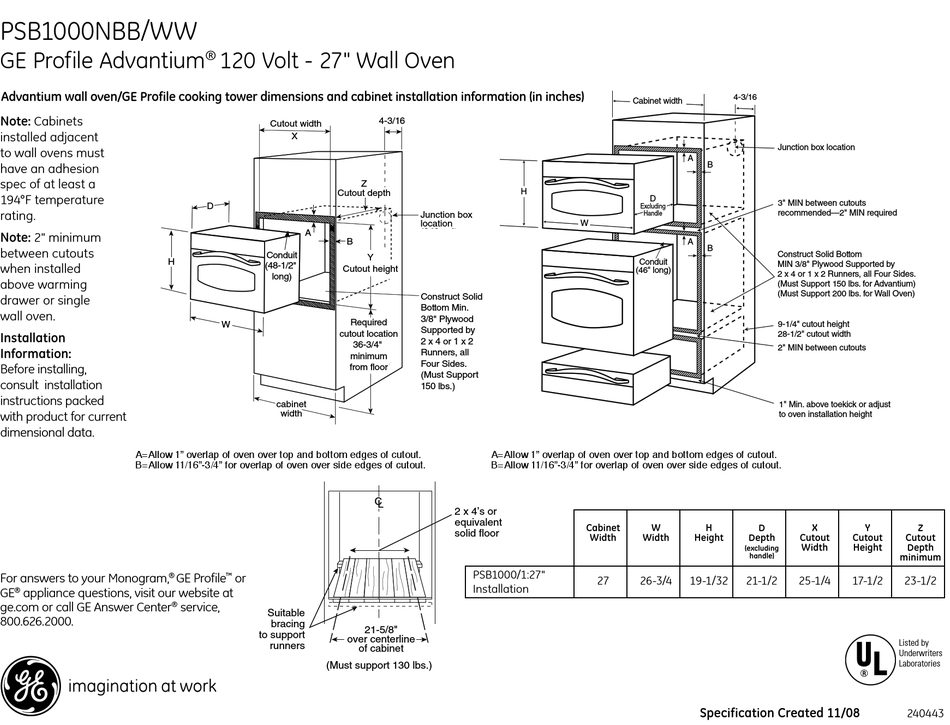

Advantium wall oven/GE Profile cooking tower dimensions and cabinet installation information (in inches)
Note: Cabinets
installed adjacent
to wall ovens must
have an adhesion
spec of at least a
194°F temperature
rating.
Note: 2" minimum
between cutouts
H
when installed
above warming
drawer or single
wall oven.
Installation
Information:
Before installing,
consult installation
instructions packed
with product for current
dimensional data.
A=Allow 7/8" overlap of oven over bottom edge of cutout, and allow
1-1/4" overlap at top edge of cutout.
A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 2-1/8" for overlap of oven over side edges of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
*Required for UL approval.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
120 Volt - 27" Wall Oven
®
Cutout width
X
Z
Cutout depth
D
A
B
Conduit
(48-1/2"
Cutout height
long)
Required
W
cutout location
36-3/4"
minimum
from floor
cabinet
width
or
™
service,
Suitable
bracing
to support
over centerline
runners
of cabinet
(Must support 130 lbs.)
cooking_tower_solid_floor.eps
4-3/16
H
Junction box
location
(240-volt
models only)
Y
Construct Solid
Bottom Min.
3/8" Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides.
*
(Must Support
150 lbs.)
A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
C L
2 x 4's or
equivalent
solid floor
PSB1000/1:27"
Installation
21-5/8"
4-3/16
Cabinet width
A
B
D
Excluding
Handle
W
A
B
Conduit
(46" long)
adv_240_120_cooktower_dia.eps
Cabinet W H D
Width Width Height Depth
(excluding
handle)
27 26-3/4 19-1/32 21-1/2
Specification Created 11/08
Junction box location (240-volt models only)
3" MIN between cutouts
recommended—2" MIN required
Construct Solid Bottom
MIN 3/8" Plywood Supported by
2 x 4 or 1 x 2 Runners, all Four Sides.
(Must Support 150 lbs. for Advantium)
(Must Support 200 lbs. for Wall Oven)
9-1/4" cutout height
28-1/2" cutout width
2" MIN between cutouts
1" Min. above toekick or adjust
to oven installation height
X Y Z
Cutout Cutout Cutout
Width Height Depth
minimum
25-1/4 17-1/2 23-1/2
Listed by
Underwriters
Laboratories
240443
