Summary of Contents for Zte TU25

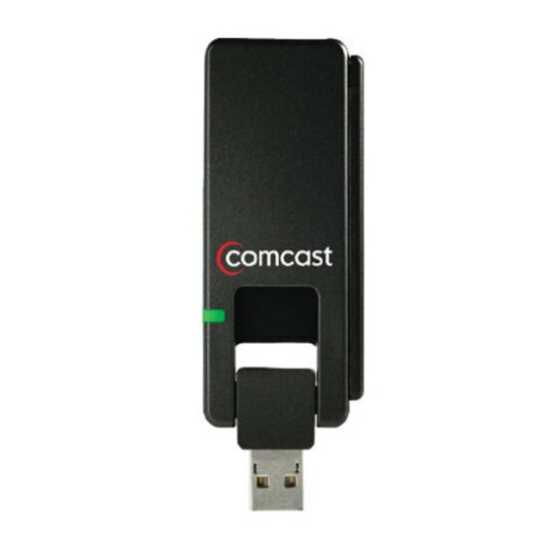

- Page 1 ZTE TU25 WiMAX USB Modem User Manual...
- Page 2 ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.
-
Page 3: Table Of Contents
Inserting ZTE WiMAX USB Modem ............15 Using antenna ..................15 Remove the modem safety ..............16 Uninstalling ZTE TU25 WiMAX USB Modem Connection Manager ..16 ZTE TU25 WiMAX USB Modem Connection Manager Interface ..... 18 The CM Interface Introduction ..............18 Connection Status .................. - Page 4 Network Selection ................24 General Info ..................24 Connection History ..................25 FAQs ......................26...
-
Page 5: Introduction
“modem”). ZTE WiMAX USB Modem is next generation mobile broadband that’s designed to work as fast around town as it does at home. With ZTE WiMAX USB Modem, you’ll connect to the Internet without long-term contracts or complications. Then you can take the Internet, and everything you do with it, along with you anywhere ZTE WiMAX USB Modem has coverage. -
Page 6: Modem
oil warehouses or chemical factories, where there are explosive gases or explosive products being processed. Do not use modem if necessary. • Don’t touch the antenna area unnecessarily while connected. This can affect your modem’s performance and reduce the signal quality. •... -
Page 7: In Aircraft
Cleaning and Maintenance • ZTE WiMAX USB Modem is non-waterproof, please keep it dry and store in shady and cool place. • If you want to clean your modem, please use clean fabric that is a bit wet or anti-static. -
Page 8: Limitation Of Liability
Limitation of Liability ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using this product, whether or not ZTE had been advised, knew or should have known the possibility of such damages. -
Page 9: Led Indications
LED Indications Your modem gives you at-a-glance status information via its LED indicator bar. Here’s a list of indicators and meanings: • Green status light-Solid Green indicates the modem is powered and service is available. Flashing Green indicates data activity (send/receive, alerts, diagnostics). -
Page 10: Working Condition
Working Condition Modem Working Conditions as follow: • Working temperature: -10°C ~ +55°C [14°F ~ 131°F] • Working humidity: 5% ~ 95% • Storage temperature: -40°C ~ +70°C [-40°F ~ 158°F] • Storage humidity: 5% ~ 90%... -
Page 11: Installing Zte Tu25 Wimax Usb Modem
Installing ZTE TU25 WiMAX USB Modem Installing and connecting your modem requires just a few simple steps: prepare your computer, install ZTE WiMAX USB Modem Connection Manager (CM), insert your modem, and activate your account. Installing ZTE TU25 WiMAX Modem Connection Manager... - Page 12 • The following snapshots show you how to install CM for the modem on Windows XP OS. • You should uninstall the previous version. Insert the CM Installation CD into your computer’s CD drive. The installation screen (see below) should appear automatically. If your computer does not display the installation screen, click Start >...
- Page 13 2. Click Browse… button to select destination folder and click Next button to go on. 3. Click Install button to begin installation.
- Page 14 4. Install in progress. 5. Click Finish button to finish installation.
-
Page 15: Inserting Zte Wimax Usb Modem
Inserting ZTE WiMAX USB Modem Insert the ZTE TU25 WiMAX USB Modem as shown below. When you first time insert the modem into computer, your system will automatically detect the new hardware and click Continue Anyway button to install the driver. -
Page 16: Remove The Modem Safety
1. E.g. in Windows XP, left click the icon on the windows taskbar. 2. Click on Safely Remove Hardware to shut down the drivers safely. 3. Remove the modem. Uninstalling ZTE TU25 WiMAX USB Modem Connection Manager Make sure that the CM is closed. - Page 17 2. Click Start > (All) Programs > ZTE WiMAX CM > Uninstall Or Click Start > Control Panel > Add or Remove Programs, highlight ZTE WIMAX CM, and click Remove. The uninstall wizard will be shown as follows: 3. Click Yes to confirm that you want to uninstall the CM.
-
Page 18: Zte Tu25 Wimax Usb Modem Connection Manager Interface
ZTE TU25 WiMAX USB Modem Connection Manager Interface The CM Interface Introduction When you launch the CM, the CM interface will be displayed as shown: Shows WiMAX signal strength if the network is 1 Signal Indicator connected There are About, Help and Exit three submenu... -
Page 19: Connection Status
Connection Status No Device The Connection Manager has not detected the modem. Searching The modem is searching for networks. - Page 20 Waiting For Connection When the modem searched WiMAX network, the CM displayed Waiting For Connection. If networks are available, click Connect button to initiate a connection to an available network. Connecting The modem is establishing a new connection to WiMAX network.
-
Page 21: Wimax Signal Strength
Connected The modem connected with the WiMAX network successfully. WiMAX Signal Strength When connected to the WiMAX network or when viewing available networks, the bar icon indicates the relative strength of your WiMAX signal. Signal strength is not an indicator of network speed. -
Page 22: Zte Tu25 Wimax Usb Modem Connection Manager Settings
ZTE TU25 WiMAX USB Modem Connection Manager Settings Authentication Settings Authentication has been configured successfully. Click Authentication Settings button to display the Authentication Settings panel. You can select Prepaid or Postpaid at the Anonymous Identity, if you are a prepaid user, please select Prepaid; otherwise, select Postpaid. -
Page 23: Options
Options The Options Settings window is divided into four panels: • Connect Settings • Network Selection • General Info Connect Settings Click Options > Connect Settings to display the Connect Settings panel. Automatic Connect: When you launch the CM, the WiMAX modem will connect to WiMAX network automatically. -
Page 24: Network Selection
Network Selection Click Options > Network Selection to display the Network Selection panel. You will see the searched network information including status, operator information and network type. General Info Click Options > General Info to display the general information panel. You will see the basic information including Base Station Info and Device Info. -
Page 25: Connection History
Connection History Click Data Records to display the connection history of CM. -
Page 26: Faqs
FAQs When you meet the following problems in service, please refer to the following answers to solve it. If the problems still exist, please contact with your suppliers. Problem Possible Causes Problem Solving Description Open the disc of the modem The system The system program and start the... - Page 27 Problem Possible Causes Problem Solving Description 1. You are in the place where no WiMAX Move to the place that has network covered, such good signal. as underground parking lot, tunnel etc. Data connection 2. The network at this failed. time in this place is Try again later.
