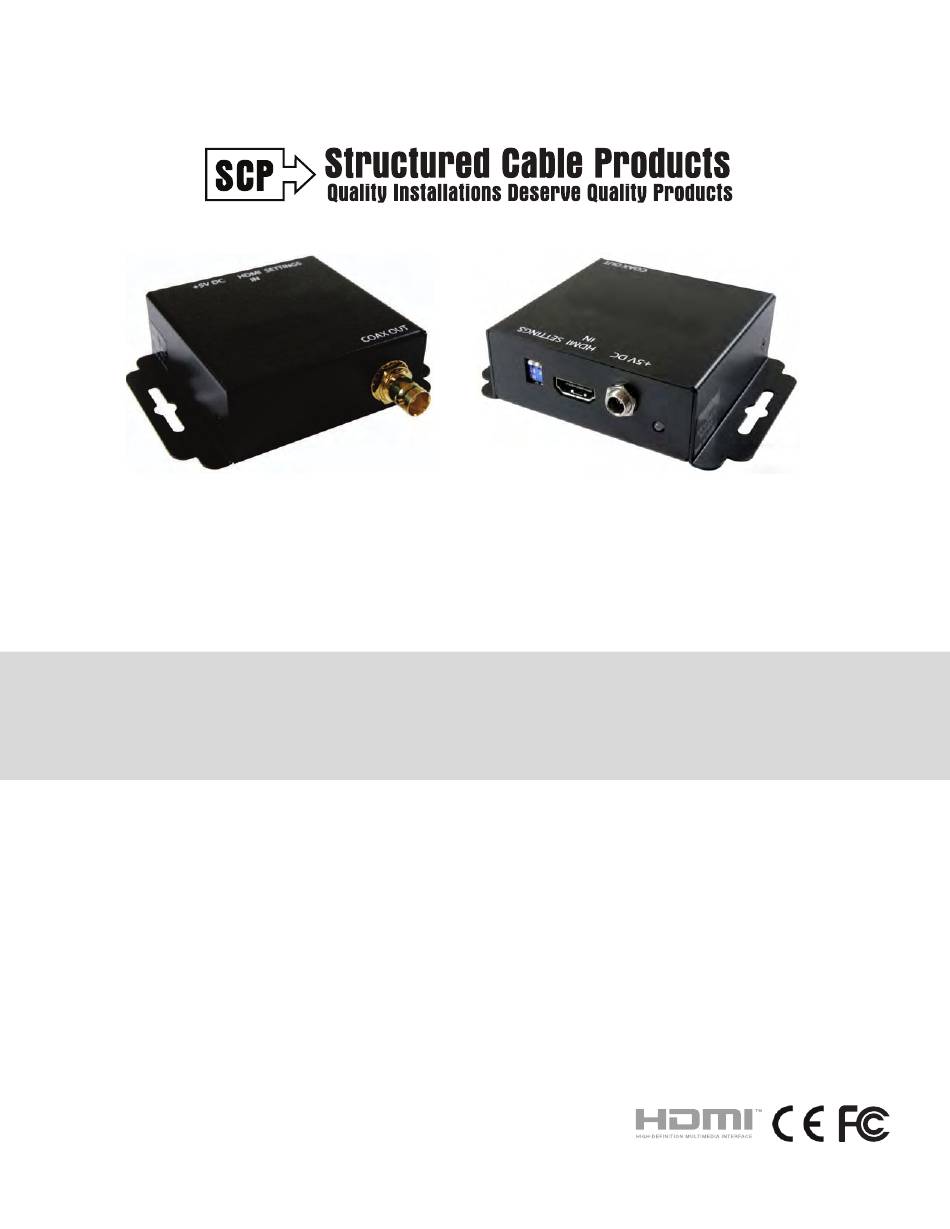

- Page 1 HDMI EXTENDER OVER SINGLE COAXIAL CABLE PART# 961 OPERATING INSTRUCTIONS www.scpcat5e.com...
-
Page 2: Safety And Notice
HDMI EXTENDER OVER SINGLE COAXIAL CABLE Safety and Notice SCP’s 961- HDMI Extender over Single Coaxial Cable has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the 961 should be used with care. - Page 3 HDMI EXTENDER OVER SINGLE COAXIAL CABLE PART# 961 Introduction SCP’s 961- HDMI Extender over Single Coaxial boosts up your HDMI transmission range up to 60m (180ft) in HDTV 1080p format through a single coaxial cable. The 961 is easy to install and works with any coaxial cable. The transmission distance depends upon the quality and bandwidth of the particular coaxial cable you will be using with SCP’s 961. The 961 includes two units: transmitting (961-TX) and receiving (961-RX) units. The transmitting unit is used to capture the HDMI and HDCP input signals and carry the signals through only coaxial cable. The receiving unit...
-
Page 4: Installation
PART# 961 HDMI EXTENDER OVER SINGLE COAXIAL CABLE Installation HDMI Coaxial Coaxial Coaxial Cable Cable HDMI Cable HDMI Cable 1. Connect a HDMI source to the transmitting unit 961-TX. 2. Connect a HDMI display or projector to the receiving unit 961-RX. 3. Connect a coaxial cable between the transmitting and receiving units. 4. Make sure this coaxial cable is tightly connected and not loose. 5. Plug in 5V DC power supply units to the latch-locking power jack on the both transmitting and receiving units of SCP 961. www.scpcat5e.com... -
Page 5: Specifications
HDMI EXTENDER OVER SINGLE COAXIAL CABLE PART# 961 Model Name CV-54G CV-54S Specifications Technical CV-54G[TX] CV-54G[RX] CV-54S 54S[TX] Transmitter Role of usage Transmitter [TX] Receiver [RX] Receiver [TX] HDMI compliance HDMI 1.3c HDMI 1.2a HDMI High Speed HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps]... -
Page 6: Panel Descriptions
PART# 961 HDMI EXTENDER OVER SINGLE COAXIAL CABLE Panel Descriptions Transmitter: 961-TX Input Panel 2-pin DIP Switch: Please see below table for detail information HDMI IN: Connect to a HDMI source device with a HDMI male-male cable here +5V DC: Connect to a 5V DC power supply unit LED: Green light means video in Full-HD mode. - Page 7 HDMI EXTENDER OVER SINGLE COAXIAL CABLE PART# 961 Receiver: 961-RX Input Panel COAX IN: Connect to a high standard coaxial cable here Output Panel HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here +5V DC T: Connect to a 5V DC Power Supply Unit LED: Orange light meas in mormal operation mode...
-
Page 8: Hdmi Pin Definition
PART# 961 HDMI EXTENDER OVER SINGLE COAXIAL CABLE HDMI Pin Definition Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0Ð Pin 16 Pin 3 TMDS Data2Ð Pin 10... -
Page 9: Limited Warranty
Should this product fail to be in good working order within 1 year warranty period, Structured Cable Products, at its option, repair or replace the unit, provided that the unit has not been sub- jected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge.
