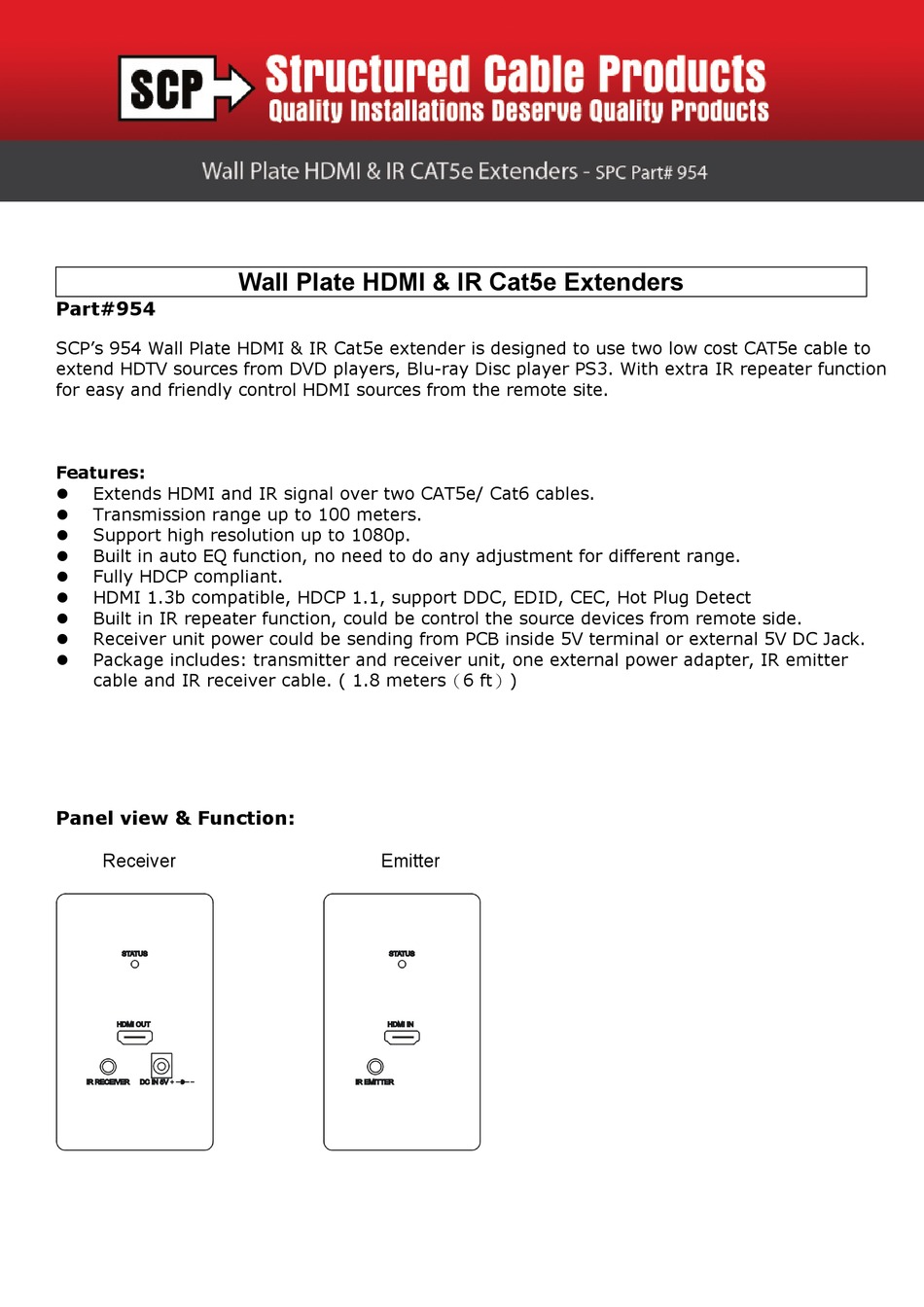

Structured Cable Products 954 Quick Start Manual

Part#954
SCP's 954 Wall Plate HDMI & IR Cat5e extender is designed to use two low cost CAT5e cable to
extend HDTV sources from DVD players, Blu-ray Disc player PS3. With extra IR repeater function
for easy and friendly control HDMI sources from the remote site.
Features:
Extends HDMI and IR signal over two CAT5e/ Cat6 cables.

Transmission range up to 100 meters.

Support high resolution up to 1080p.

Built in auto EQ function, no need to do any adjustment for different range.

Fully HDCP compliant.

HDMI 1.3b compatible, HDCP 1.1, support DDC, EDID, CEC, Hot Plug Detect

Built in IR repeater function, could be control the source devices from remote side.

Receiver unit power could be sending from PCB inside 5V terminal or external 5V DC Jack.

Package includes: transmitter and receiver unit, one external power adapter, IR emitter

cable and IR receiver cable. ( 1.8 meters（6 ft）)
Panel view & Function:
Receiver
Wall Plate HDMI & IR Cat5e Extenders
Emitter
