JT915BF/CF/WF
GE Profile

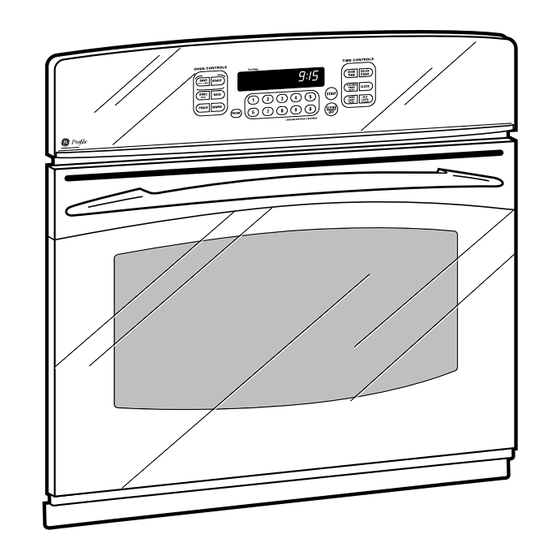

30" Built-In Single Oven
Dimensions and Installation Information
KW Rating
240V
3.6
208V
2.7
Breaker Size
240V
20 Amps
208V
20 Amps
A
Allow 1" overlap of oven over top and bottom edges of cutout
B
Allow 11/16"-3/4" for overlap of oven over side edges of cutout
Most 30" Wall Cabinets can be used with this unit.
Note: These ovens are not approved for stackable or side-by-side
installations. Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating.
Electric wall ovens are not approved for installation with a plug
and receptacle. They must be hard wired in accordance with
installation instructions.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
For answers to your Monogram,
GE Profile
®
GE
appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
or
service,
C L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(Must Support 275 LBS.)
29-3/4
28-1/4
21
Allow minimum of 21'' for clearance
to adjacent corners, drawers, walls, or etc.
Dimension and installation information are shown in inches.
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
5
23-1/2'' MIN.
Cutout depth
A
B
27-1/4'' MIN.
Conduit
27-5/16'' MAX.
(48-1/2"
long)
Cutout height
Recommended
cutout location
32-1/2"
from floor
30
Listed by
Underwriters
Laboratories
R
Specification Revised 2/06
Junction
box
location
22'' MIN.
220232

Advertisement

   Related Manuals for GE JT915

   Summary of Contents for GE JT915

  • Page 1

    20 Amps 208V 20 Amps Allow 1" overlap of oven over top and bottom edges of cutout Allow 11/16"-3/4" for overlap of oven over side edges of cutout Most 30” Wall Cabinets can be used with this unit. Note: These ovens are not approved for stackable or side-by-side installations.
