5.8

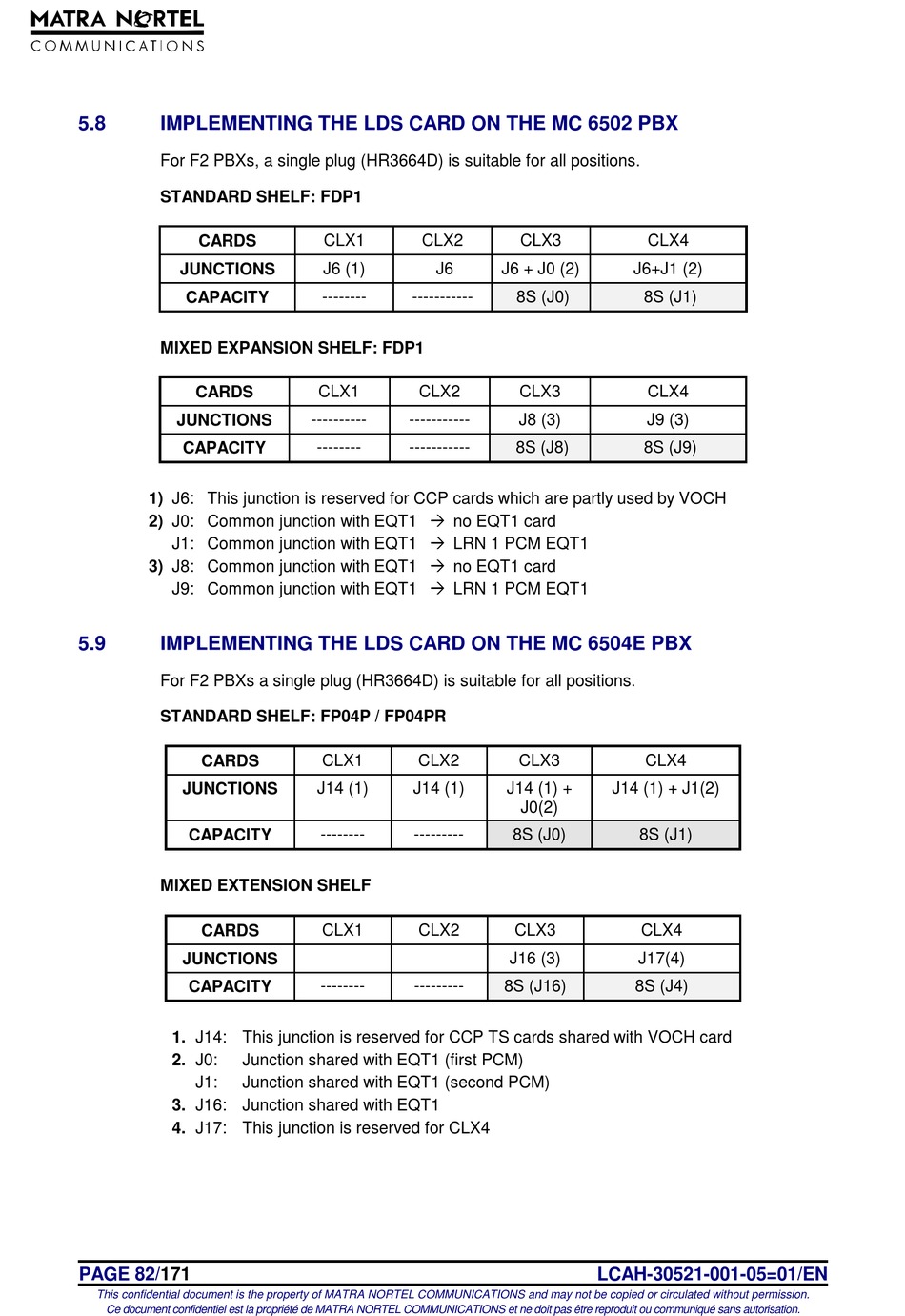

IMPLEMENTING THE LDS CARD ON THE MC 6502 PBX

For F2 PBXs, a single plug (HR3664D) is suitable for all positions.
STANDARD SHELF: FDP1
CARDS
JUNCTIONS
CAPACITY
MIXED EXPANSION SHELF: FDP1
CARDS
JUNCTIONS
CAPACITY
1) J6: This junction is reserved for CCP cards which are partly used by VOCH
2) J0: Common junction with EQT1 " no EQT1 card
J1: Common junction with EQT1 " LRN 1 PCM EQT1
3) J8: Common junction with EQT1 " no EQT1 card
J9: Common junction with EQT1 " LRN 1 PCM EQT1
5.9

IMPLEMENTING THE LDS CARD ON THE MC 6504E PBX

For F2 PBXs a single plug (HR3664D) is suitable for all positions.
STANDARD SHELF: FP04P / FP04PR
CARDS
JUNCTIONS
CAPACITY
MIXED EXTENSION SHELF
CARDS
JUNCTIONS
CAPACITY
1. J14: This junction is reserved for CCP TS cards shared with VOCH card
2. J0: Junction shared with EQT1 (first PCM)
J1: Junction shared with EQT1 (second PCM)
3. J16: Junction shared with EQT1
4. J17: This junction is reserved for CLX4
PAGE 82/171
This confidential document is the property of MATRA NORTEL COMMUNICATIONS and may not be copied or circulated without permission.
Ce document confidentiel est la propriété de MATRA NORTEL COMMUNICATIONS et ne doit pas être reproduit ou communiqué sans autorisation.
CLX1 CLX2
J6 (1) J6
-------- -----------
CLX1 CLX2
---------- -----------
-------- -----------
CLX1 CLX2
J14 (1) J14 (1)
-------- ---------
CLX1 CLX2
-------- ---------
CLX3 CLX4
J6 + J0 (2) J6+J1 (2)
8S (J0) 8S (J1)
CLX3 CLX4
J8 (3) J9 (3)
8S (J8) 8S (J9)
CLX3 CLX4
J14 (1) + J14 (1) + J1(2)
J0(2)
8S (J0) 8S (J1)
CLX3 CLX4
J16 (3) J17(4)
8S (J16) 8S (J4)
LCAH-30521-001-05=01/EN
