5.5.2.1 V11 DECT CLOCKS: STRIP 4G
The cable is used to connect the DECT 800 ms clock signal. This clock is output to three
V11 differential pairs (see LDS interfaces). Any V11 DECT clock connection must be set up
on strip 4G.
♦
incoming DECT clock (slave card) / outgoing clock (master card): SYNP (polarity
+), SYNN (polarity -)
♦
outgoing DECT clock A: SYNAP (+), SYNAN (-)
♦
outgoing DECT clock B: SYNBP (+), SYNBN (-)

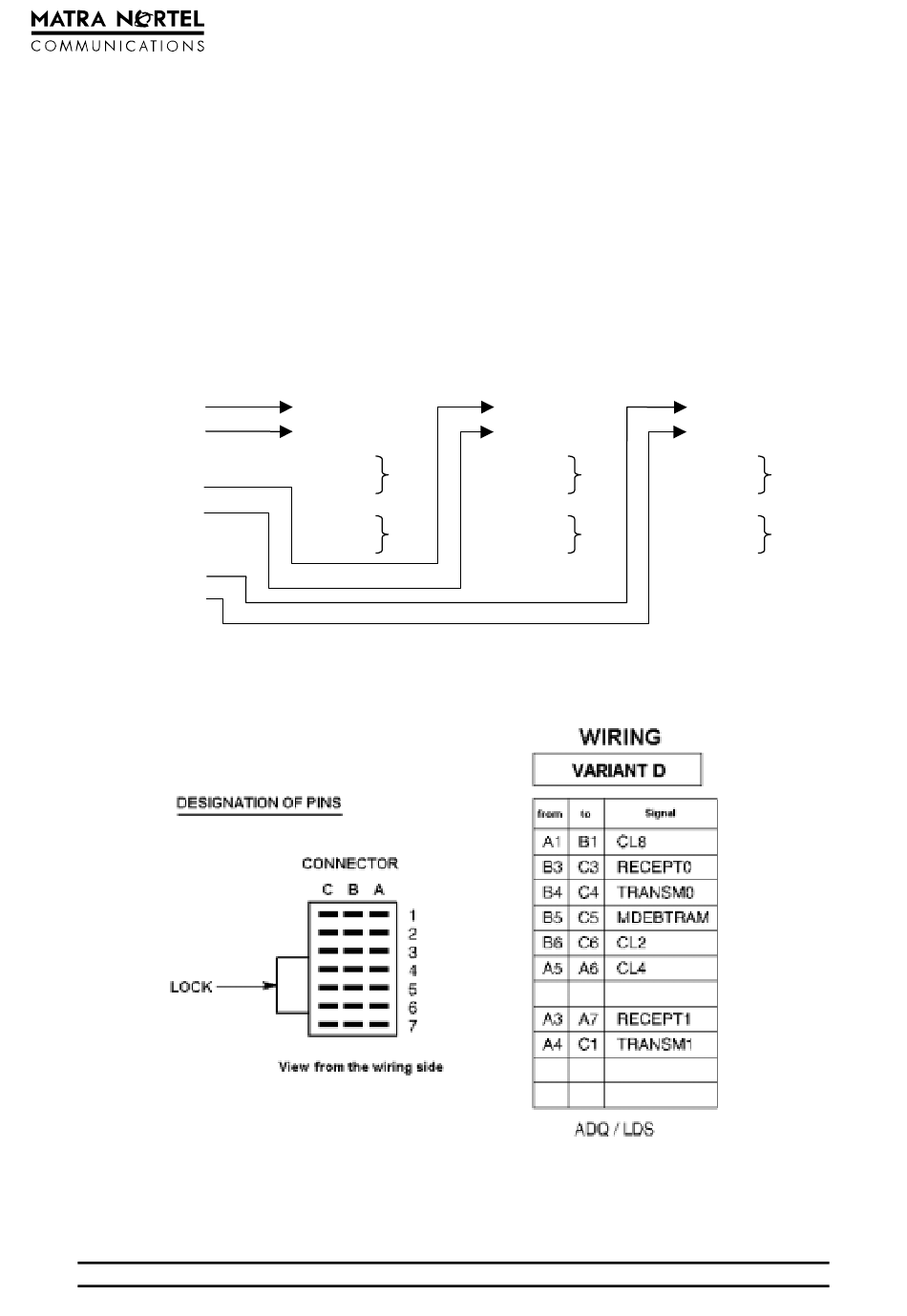

Example:
Master card
SYNP
SYNN
SYNAP
SYNAN
SYNBP
SYNBN
5.5.2.2 WIRING THE BADX PLUG HR3664D
PAGE 74/171
This confidential document is the property of MATRA NORTEL COMMUNICATIONS and may not be copied or circulated without permission.
Ce document confidentiel est la propriété de MATRA NORTEL COMMUNICATIONS et ne doit pas être reproduit ou communiqué sans autorisation.
Slave card (1)
SYNP
SYNN
SYNAP
NC
SYNAN
SYNBP
NC
SYNBN
Slave card (2)
SYNP
SYNN
SYNAP
NC
SYNAN
SYNBP
NC
SYNBN
LCAH-30521-001-05=01/EN
Slave card (3)
SYNP
SYNN
SYNAP
NC
SYNAN
SYNBP
NC
SYNBN
