3.3.4
CONNECTING A RADIO BASE STATION TO THE MAIN DISTRIBUTION
FRAME
Each radio base station is wired using three cable pairs (Transmission - Reception -
Synchronization).
The synchronization pair for a "master" base station can supply two "slave" radio base
stations.
CAUTION: Check that the S0 equipment on the OCZ2 card is correctly configured (see
Note:
Connect the radio base station to the ROCZB card using an 8-pin ribbon cable.
Radio base station
connector

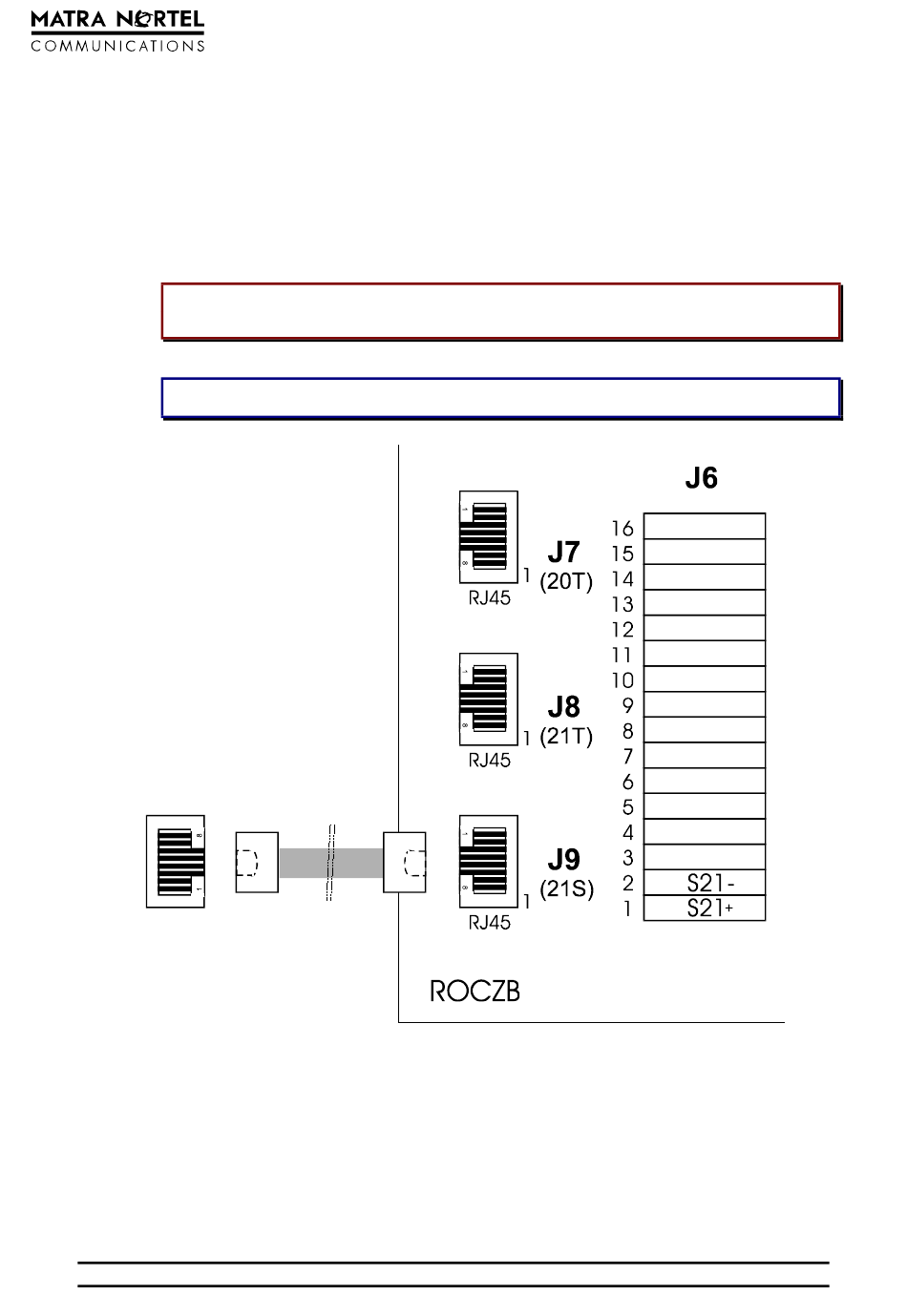

Figure 8: Connecting a radio base station to the main distribution frame
PAGE
42/171
This confidential document is the property of MATRA NORTEL COMMUNICATIONS and may not be copied or circulated without permission.
Ce document confidentiel est la propriété de MATRA NORTEL COMMUNICATIONS et ne doit pas être reproduit ou communiqué sans autorisation.
section 3.1.1 for switch settings) and declared by MMC.
Ribbon cable
LCAH-30521-001-05=01/EN
