10.1.2 SWITCHES ON THE BASE STATION CARD
CA1 SWITCHES
CA1-3/4 set to ON:
CA1-3 /4 set to OFF: the base station Reset is piloted by S0 interface level 1.
CA1-1/2 set to ON:
SWITCHES S202
S202-1/2 is set to ON and S202-3/4 is set to ON: 100 ohm adaptation resistors for S0 pairs
are enabled.

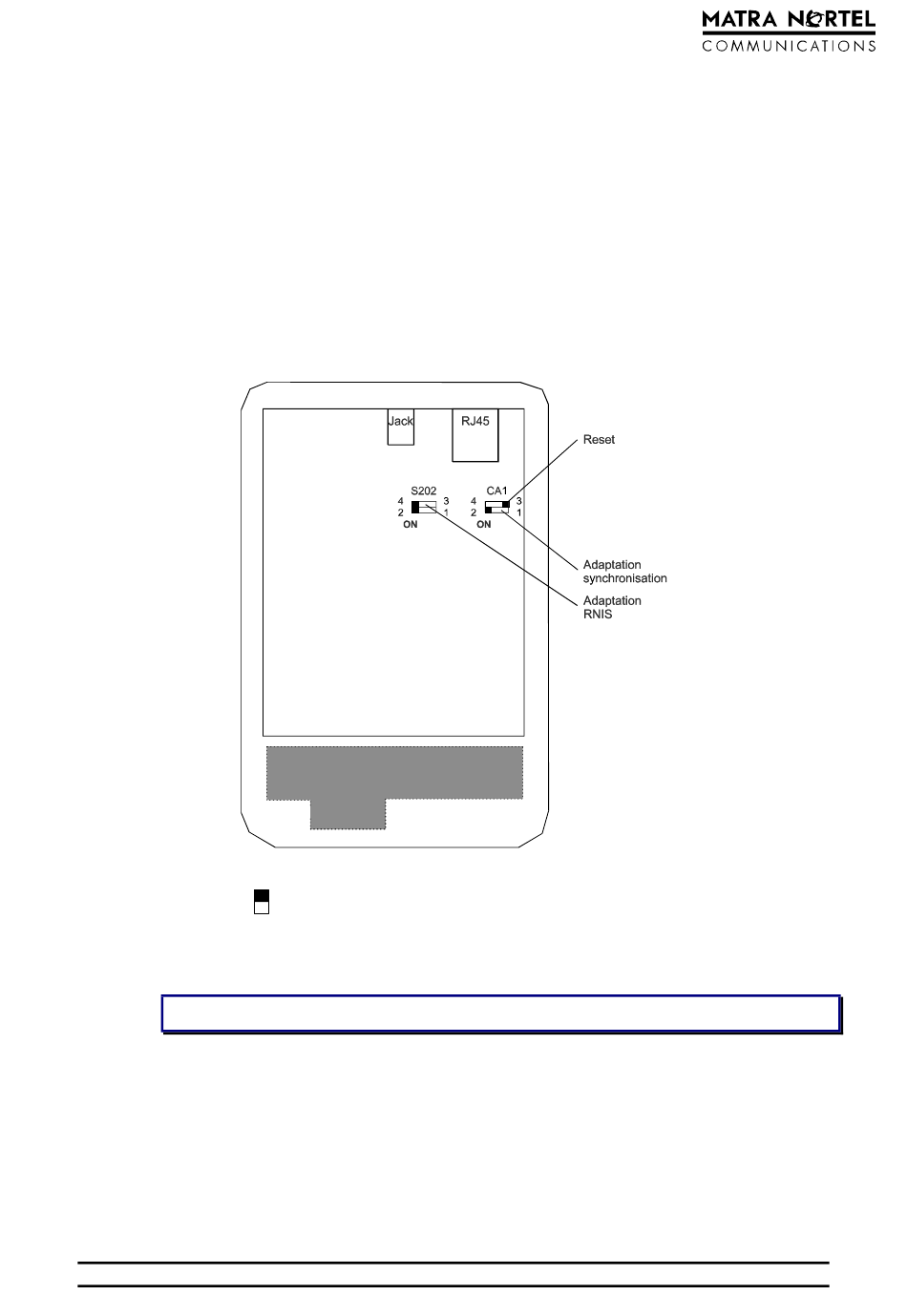

Figure 28: DECT radio base stations configuration switches

Note: Do not modify the factory configuration of S202 and CA1.
LCAH-30521-001-05=01/EN
This confidential document is the property of MATRA NORTEL COMMUNICATIONS and may not be copied or circulated without permission.
Ce document confidentiel est la propriété de MATRA NORTEL COMMUNICATIONSet ne doit pas être reproduit ou communiqué sans autorisation.
the base station Reset is enabled only on powering the base station
or the PBX.
the adaptation resistor for the synchronization pair is enabled.
The black square corresponds to the switch position
