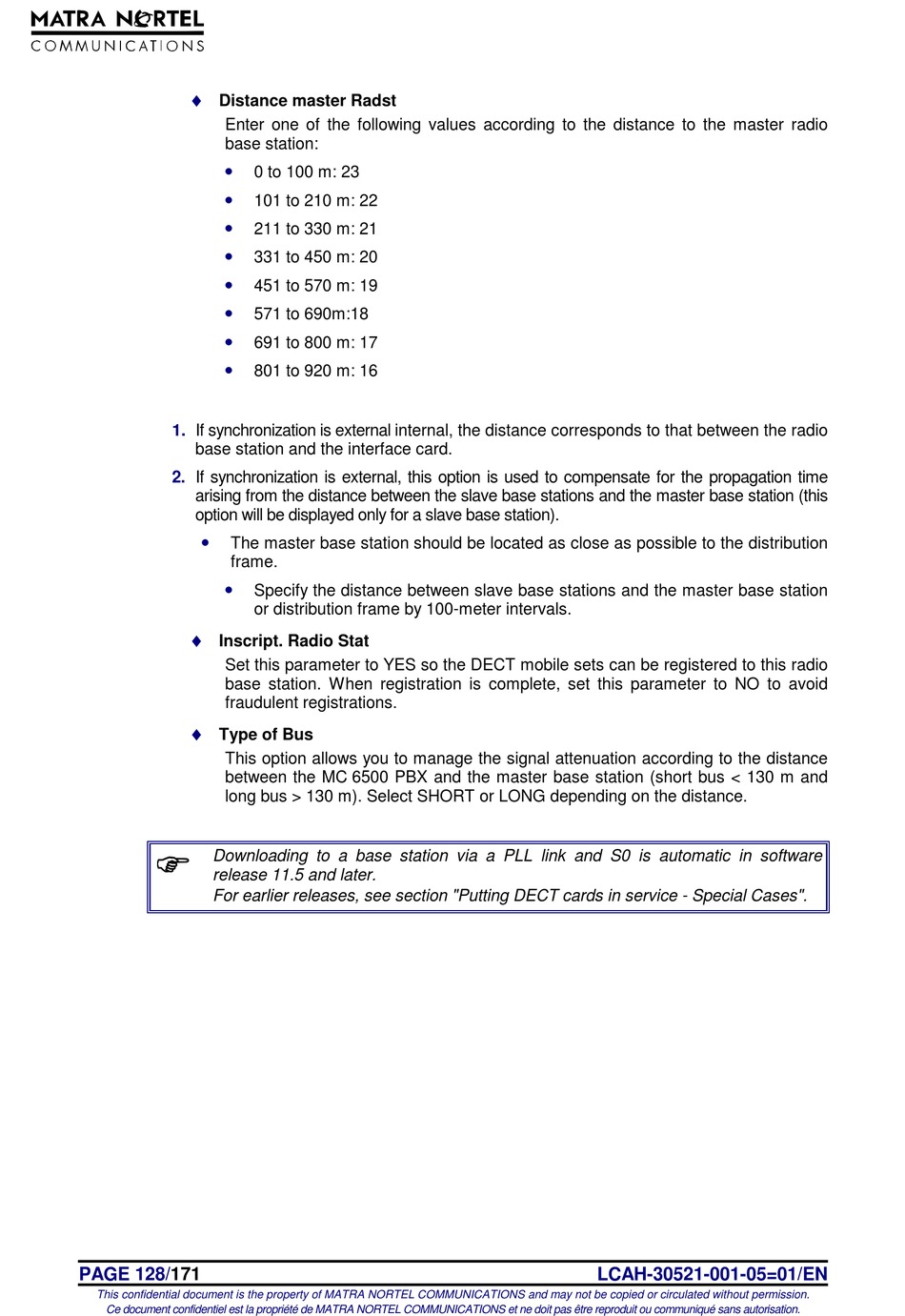

Matra Nortel MC 6500 Manual page 128

♦
Distance master Radst
Enter one of the following values according to the distance to the master radio
base station:
•
•
•
•
•
•
•
•
1. If synchronization is external internal, the distance corresponds to that between the radio
base station and the interface card.
2. If synchronization is external, this option is used to compensate for the propagation time
arising from the distance between the slave base stations and the master base station (this
option will be displayed only for a slave base station).
•
The master base station should be located as close as possible to the distribution
frame.
•
♦
Inscript. Radio Stat
Set this parameter to YES so the DECT mobile sets can be registered to this radio
base station. When registration is complete, set this parameter to NO to avoid
fraudulent registrations.
♦
Type of Bus
This option allows you to manage the signal attenuation according to the distance
between the MC 6500 PBX and the master base station (short bus < 130 m and
long bus > 130 m). Select SHORT or LONG depending on the distance.
! ! ! !
Downloading to a base station via a PLL link and S0 is automatic in software
release 11.5 and later.
For earlier releases, see section "Putting DECT cards in service - Special Cases".
PAGE 128/171
This confidential document is the property of MATRA NORTEL COMMUNICATIONS and may not be copied or circulated without permission.
Ce document confidentiel est la propriété de MATRA NORTEL COMMUNICATIONS et ne doit pas être reproduit ou communiqué sans autorisation.
0 to 100 m: 23
101 to 210 m: 22
211 to 330 m: 21
331 to 450 m: 20
451 to 570 m: 19
571 to 690m:18
691 to 800 m: 17
801 to 920 m: 16
Specify the distance between slave base stations and the master base station
or distribution frame by 100-meter intervals.
