GE Spacemaker JVM1850 Dimensions

GE Appliances

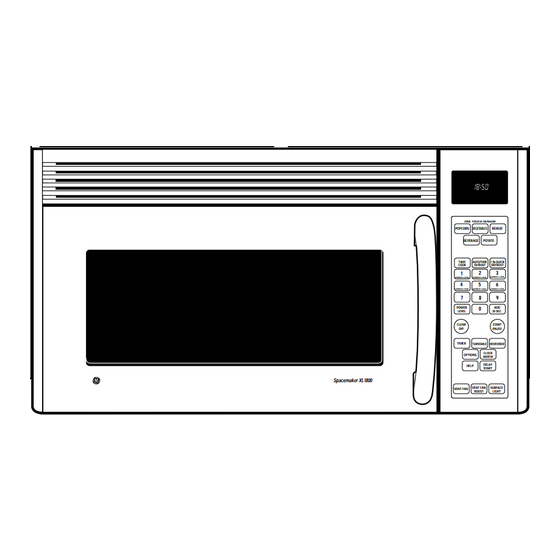

JVM1850BH/CH/SH/WH – GE Spacemaker
Dimensions (in inches)
21-3/4"
Door open
29-7/8
Specification Created 10/03
340105
Over-the-Range Microwave Oven
®
30"
66" MIN.
MIN.
Mounting
width
height
required
from
floor
12"
MIN.
15-1/4
16-13/32
16
Note: Requires 120V grounded outlet. Electrical receptacle must be located in
cabinet above Spacemaker microwave oven. No additional wiring, venting or
cabinet rebuilding necessary in many cases. Complete detailed, easy-to-follow
Exhaust outlet
installation instructions and convenient full-size templates are packed with
connects to
the Spacemaker microwave oven.
3-1/4" X 10" duct
Important Information: When installing the Spacemaker microwave oven
over a range, allow minimum of 2" from bottom of Spacemaker microwave
oven to top of range backguard to allow for removal of light covers.
Ventilation Options: The Spacemaker microwave ovens are designed for
adaptation to the following three types of ventilation:
• Outside exhaust (vertical – as shown)
• Outside exhaust (horizontal)
• Recirculating (non-vented ductless – see Filter Kit drawing)
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
Listed by
Underwriters
Laboratories
R
