GE Spacemaker JVM1850 Dimensions page 2

GE Appliances
JVM1850BH/CH/SH/WH – GE Spacemaker
Optional Accessories (Available at additional cost)
Filler Panel Kits
JX52WH–White
JX52BL–Black
When replacing a 36" or 42"
range hood, this kit fills in the
additional width to provide a
custom built-in appearance.
For installation between
cabinets only; not for
end-of-cabinet installation.
Each kit contains two 3"-wide
filler panels.
Specification Created 10/03
340105
Over-the-Range Microwave Oven
®

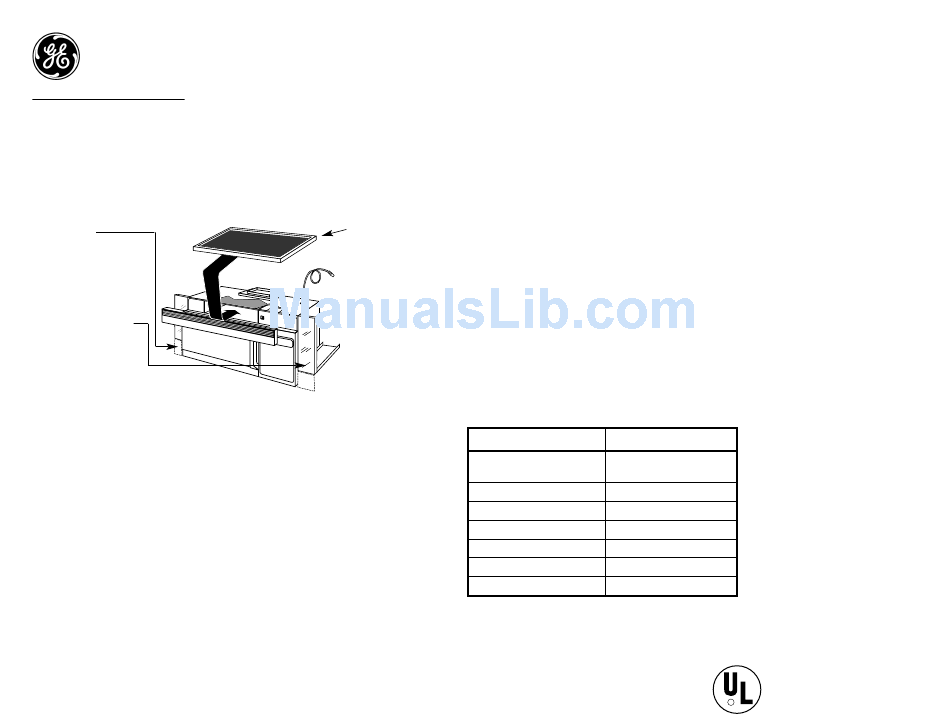

Filter Kits
HOOD EXHAUST DUCT: Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.
JX81B–Recirculating
EXHAUST CONNECTION: The hood exhaust has been designed to mate with a standard 3-1/4" x 10"
Charcoal Filter Kit
rectangular duct. If a round duct is required, a rectangular-to-round transition adaptor must be used.
To be used when the
Do not use less than a 6" diameter duct
Spacemaker microwave
oven cannot be vented
REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be taken to align exhaust with space
to the outside.
between studs, or wall should be prepared at the time it is constructed by leaving enough space between the
wall studs to accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of 3-1/4" x 10" rectangular or
6" diameter round duct should not exceed 140 equivalent feet.
ELBOWS, TRANSITIONS,WALL AND ROOF CAPS, etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total
duct length, add the equivalent length of all transitions and adaptors plus the lengths of all straight duct sections.
The chart below shows the approximate feet of equivalent length of some typical ducts.
Duct
A. Rectangular-To-round
Transition Adaptor
B. Wall Cap
C. 90° Elbow
D. 45° Elbow
E. 90° Elbow
F. 45° Elbow
G. Roof Cap
For answers to your Monogram,
GE appliance questions, visit our website at
®
GEAppliances.com or call
GE Answer Center
Equivalent Feet
5 ft.
40 ft.
10 ft.
5 ft.
25 ft.
5 ft.
24 ft.
® GE Profile ™ or
R
® service, 800.626.2000.
Listed by
Underwriters
Laboratories
