ASSEMBLY TEMPLATE

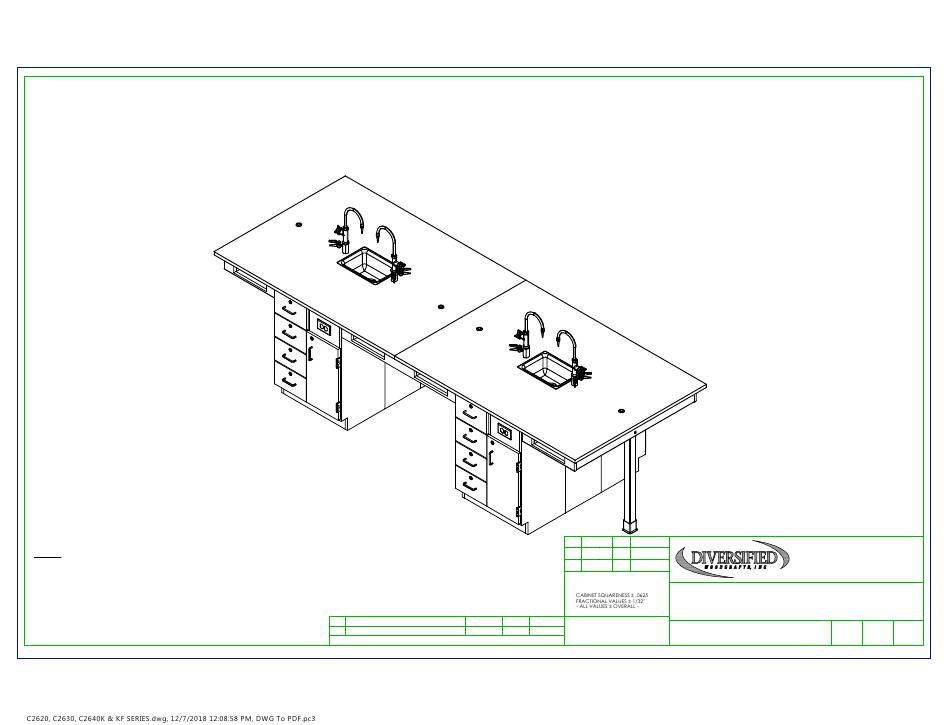

STUDENT SERVICE ISLAND-DOUBLE
C2420K, C2420KF, C2430K, C2430KF, C2440K, C2440KF, C2620K, C2620KF, C2630K, C2630KF, C2640K, & C2640KF SERIES
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\DIVERSIFIED\ASSEMBLY INSTRUCTIONS\ACAD\C2420, C2430, C2440K & KF,
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
11/1/16
REV.
DESCRIPTION
DATE
NAME
REVISION LEVEL
DWN
DWN
11/1/16
EMK
BY:
DATE:
APR
DATE
BY:
APR:
APR
DATE
BY:
APR:
UNLESS OTHERWISE SPECIFIED
DIMENSION ARE IN INCHES
TITLE:
STUDENT SERVICE ISLAND-DOUBLE
ASSEMBLY INSTRUCTIONS
EMK
-
THIS DRAWING IS THE SOLE PROPERTY OF
DRAWING NUMBER:
DIVERSIFIED WOOD CRAFTS. IT MAY NOT
ECN NO.
BE ALTERED OR CHANGED WITHOUT
STUDENT SERVICE ISLAND
PERMISSION
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 14
Advertisement
Related Manuals for DIVERSIFIED WOODCRAFTS C2420K Series
Summary of Contents for DIVERSIFIED WOODCRAFTS C2420K Series
- Page 1 ASSEMBLY TEMPLATE STUDENT SERVICE ISLAND-DOUBLE C2420K, C2420KF, C2430K, C2430KF, C2440K, C2440KF, C2620K, C2620KF, C2630K, C2630KF, C2640K, & C2640KF SERIES ASSEMBLY INSTRUCTIONS 11/1/16 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES TITLE:...
-
Page 2: Tools Required
ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART DESCRIPTION PART # " WRENCH TOP (STYLE VARIES), 1.00 X 48 X 66 VARIES VARIES " SOCKET AND TORQUE WRENCH - OPTIONAL CABINET W/ REMOVABLE PANEL CABINET - 24"W X 35"H X 16"D VARIES CONTACT CEMENT CLEATS ATTACHED... - Page 3 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART DESCRIPTION FIXTURE,L65-WSA-DIV(MULTI-SERVICE) **FIXTURE - FAUCETS** 100074-BKR VARIES **FIXTURE - SINK** 100691 SINK,EPOXY L3,BLK VARIES SINK TRAP,PLATIC ADJUSTABLE **FIXTURE - SINK TRAP** 100056 VARIES SINK STOPPER 1 ,BLK **FIXTURE - SINK STOPPER** 100112 VARIES SINK,OUTLET/STAINER EPOXY,BLK...
- Page 4 ASSEMBLY TEMPLATE CLEAT - TYPICAL STEP 1: PLACE CABINETS BACK TO BACK IN DESIRED LOCATION. IF YOU HAVE "K" SERIES CABINETS, PLACE CABINETS OVER UTILITY HOOK-UPS. LEVEL CABINETS. ATTACH TO FLOOR. ATTACH REMOVABLE PANELS WITH HARDWARE PROVIDED TO CLEATS ON BACK OF CABINETS. PRE-DRILL HOLES IN CLEAT TO PREVENT DAMAGE .
- Page 5 ASSEMBLY TEMPLATE STEP 2: WITH HELP FROM ANOTHER PERSON, POSITION INTERNAL APRON ASSEMBLY UP TO RIGHT SIDE OF LEFT CABINET SO IT IS CENTERED CORRECTLY AND FLUSH WITH TOP OF BASE CABINET. PLACE L-BRACKETS IN CORRECT POSITION ON APRON ASSEMBLY AND RIGHT SIDE OF LEFT CABINET (SHOULD BE FLUSH WITH TOP EDGE OF FRONT AND BACK APRONS).
- Page 6 ASSEMBLY TEMPLATE L-BRACKET - TYPICAL STEP 3: ATTACH L-BRACKETS TO RIGHT SIDE OF LEFT CABINET WITH HARDWARE PROVIDED. REPEAT ON OTHER SIDE OF INTERNAL APRON ASSEMBLY. RIGHT SIDE OF LEFT CABINET 11/1/16 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174 DATE APR:...
- Page 7 ASSEMBLY TEMPLATE STEP 4: WITH HELP FROM ANOTHER PERSON, PLACE INTERNAL APRON ASSEMBLY IN BETWEEN CABINETS AND ATTACH TO L-BRACKETS WITH REMAINING SCREWS PROVIDED. CONTINUE STEP IF YOU HAVE MULTIPLE INTERNAL APRON ASSEMBLIES (EX. C2430, C2630, C2440, C2640 SERIES). ATTACH INTERNAL APRON ASSEMBLY TO L-BRACKETS - TYPICAL INTERNAL APRON ASSEMBLY...
- Page 8 ASSEMBLY TEMPLATE STEP 5: REPEAT STEPS 2-4 FOR EXTERNAL APRON ASSEMBLIES (BOTH LEFT AND RIGHT). SUPPORT BOTH ASSEMBLIES UNTIL LEGS HAVE BEEN ATTACHED, THEY ARE NOT STRONG ENOUGH TO WITHSTAND WEIGHT UNTIL LEGS AND TOP ARE ATTACHED . LEFT EXTERNAL APRON ASSEMBLY RIGHT EXTERNAL APRON ASSEMBLY...
- Page 9 ASSEMBLY TEMPLATE LEG LEVELER LEG BOOT STEP 6: SLIDE LEG BOOT ONTO LEGS WITH FLARED END TOWARDS BOTTOM OF LEGS. SCREW LEG LEVELER INTO T-NUT ON BOTTOM OF LEGS. CLOSE UP OF LEG LEVELER AND LEG BOOT ASSEMBLY 11/1/16 DATE: 300 South Krueger Street NOTE: DATE...
- Page 10 ASSEMBLY TEMPLATE STEP 7: LINE UP HOLES IN APRON WITH HOLES ON LEG AND INSERT CARRIAGE BOLTS, WASHERS, AND HEX NUTS. TIGHTEN NUTS USING A " WRENCH OR " SOCKET AND TORQUE WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO EXCEED 17FT LBS . LEG SHOULD BE PERPENDICULAR TO APRON.
- Page 11 ASSEMBLY TEMPLATE STEP 8: ADJUST LEG LEVELERS TO LEVEL LEGS WITH CABINETS. APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINET AND APRONS. PLACE TOP ON UNIT WITH PROPER OVERHANG (2" OVERHANG ON SIDES AND 1.25" ON FRONT AND BACK). APPLY A BEAD OF ADHESIVE TO THE EDGES OF TOPS AND PRESS FIRMLY TO CONNECT TOPS TOGETHER. WIPE OFF ANY EXCESS CAULK.
- Page 12 ASSEMBLY TEMPLATE STEP 9: IF YOU DO NOT HAVE A "K" SERIES UNIT, SKIP TO STEP 10. APPLY SILICONE ADHESIVE TO SINK OPENINGS ON TOPS. LOWER SINKS INTO OPENINGS. WIPE OFF ANY EXCESS CAULK AND ALLOW TO SET. LET CURE FOR 6-12 HOURS. APPLY SILICONE ADHESIVE AROUND OPENING FOR SINK - TYPICAL...
- Page 13 ASSEMBLY TEMPLATE STEP 10: ATTACH RUBBER MOLDING TO BASE OF CABINETS USING CONTACT CEMENT. SCREW STAINLESS STEEL CORNER BRACKETS ON EACH CORNER OVER BASE MOLDING WITH HARDWARE PROVIDED. IF YOU HAVE A "K" SERIES UNIT, INSTALL MULTI-SERVICE FIXTURES IN HOLES SOCKET - TYPICAL PROVIDED ON TOP.
- Page 14 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
