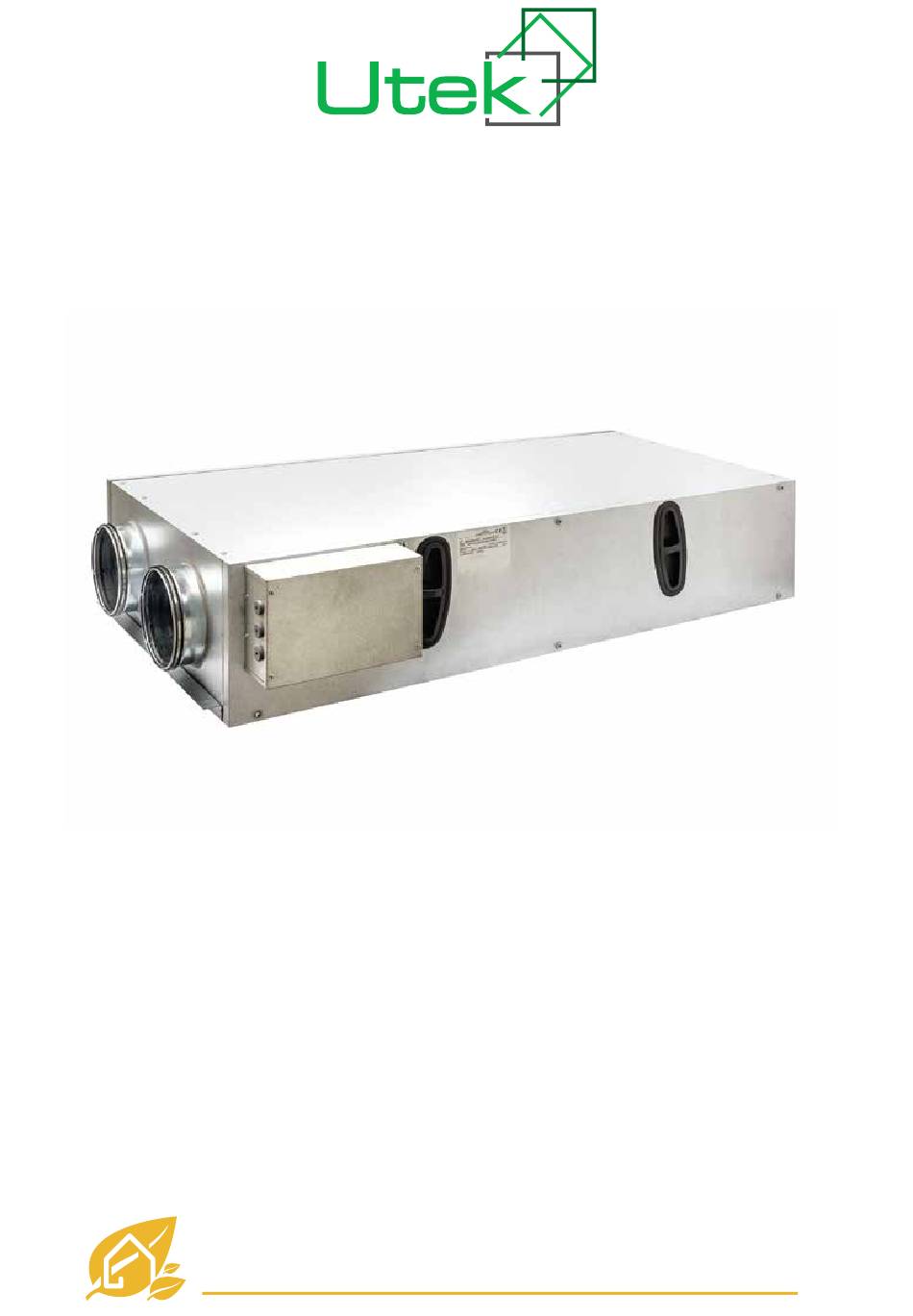

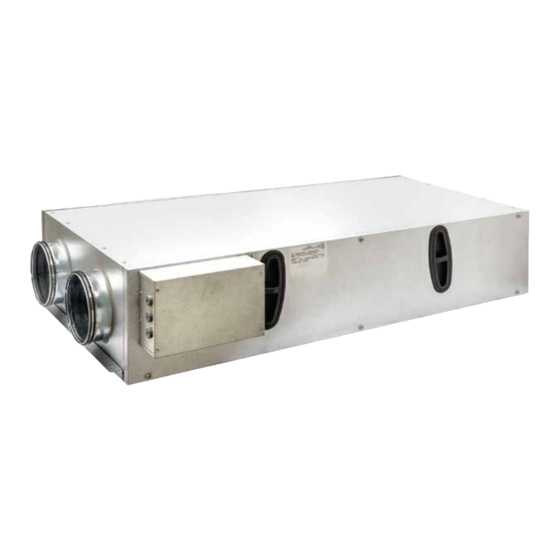

indoor air quality and energy saving MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE GUIDE FOR INSTALLATION, USE AND MAINTENANCE HRE-RES UNITÀ DI VENTILAZIONE con RECUPERO DI CALORE per EDIFICI RESIDENZIALI HEAT RECOVERY VENTILATION UNITS for RESIDENTIAL BUILDINGS...
Page 2
Gentile Cliente Dear Customer Grazie per l’attenzione al prodotto UTEK, progettato Thanks for your attention to the product UTEK , designed e realizzato per garantire all’Utilizzatore valori reali: and manufactured to ensure the real values to the User : Qualità, Sicurezza e Risparmio sui consumi.
Width Height Lunghezza Larghezza Altezza UNIT GROSS WEIGHT [Kg] UNITÀ PESO LORDO [Kg] 1440 1440 HRE-RES 1 1000 HRE-RES 1 1000 1440 1440 HRE-RES 2 1000 HRE-RES 2 1000 L’etichetta dell’unità è sempre visibile sull’imballo e contiene le The unit label is always visible on the packaging and contains the...
Page 4
UNITÀ RUMORE DALLA CASSA (dB) RUMORE NEL CANALE (dB) NOISE FROM THE CASE (dB) UNIT NOISE IN TO THE DUCT (dB) 67,7 HRE-RES 1 64,2 67,7 HRE-RES 1 64,2 75,1 HRE-RES 2 68,7...
Page 5
INSTALLAZIONE DELL’UNITA’ INSTALLATION OF THE UNIT INSTALLAZIONE ORIZZONTALE A PAVIMENTO HORIZONTAL INSTALLATION, ON FLOOR L’unità è provvista di staffe nei quattro angoli inferiori alle quali è The unit is equipped with lifting rods in the four bottom unit possibile agganciarsi con barre filettate per agevolare il fissag- angles,where hooking is Mpossible through threaded bars or gio al pavimento ed il suo livellamento.
Gli schemi elettrici sono disponibili sul sito www.utek-air.it Electrical diagrams are available on the website www.utek-air.it Questa operazione deve essere svolta SOLO DA PERSONALE QUALIFICATO This operation must be performed ONLY BY QUALIFIED STAFF ATTENZIONE: prima di effettuare una qualsiasi procedura sull’unità...
Page 7
La pulizia di Filtri e Scambiatore è consigliata almeno una volta all’anno; Seguire le indicazioni che vengono visualizzate sul pannellino di controllo.|Cleaning of Filters and Exchanger is recommended at least once a year; Follow the indications that appear on the control panel MANUTENZIONE E PULIZIA FILTRI MAINTENANCE AND CLEANING OF FILTERS Questa operazione deve essere svolta SOLO DA PERSONALE QUALIFICATO...
Page 8
MONTAGGIO SCARICO CONDENSA MONTING OF CONDENSATE DRAINAGE L'unità è provvista di scarico per il drenaggio dell'acqua che si The unit is equipped with condensate drainage to evacuate the forma durante il normale funzionamento. Dovrà essere sempre water during normal operation. Should always be provided with a prevista una tubazione di scarico con sifone e pendenza minima drain pipe siphon and minimum slope of 3% in order to avoid del 3% al fine di evitare stazionamenti dell'acqua di condensa.
Page 9
BATTERIA AD ACQUA DI POST RISCALDAMENTO/RAFFRESCAMENTO | POST HEATING/COOLING WATER COIL Orizzontale a pavimento Orizzontale a soffitto Horizontal mounting, on floor Horizontal mounting, at ceiling RISCALDATORE ELETTRICO DI SBRINAMENTO | DEICING ELECTRICAL HEATER (RCF-SCTTC / RCF-SC) Orizzontale a soffitto Orizzontale a pavimento Orizontale a soffitto Horizontal mounting, on floor Horizontal mounting, at ceiling...
COLLEGAMENTI ELETTRICI ELECTRICAL CONNECTIONS Prima di effettuare qualsiasi operazione su parti elettriche assicu- Before starting any work on electrical parts, make sure that the rarsi che non vi sia tensione. Verificare che la tensione di alimenta- power is off. Check the power supply voltage is the same as the zione corrisponda ai dati nominali dell’unità...
Anomalie di funzionamento Anomalia Cause Rimedi a) Verificare i dati di targa del motore Avviamento difficoltoso a) Tensione d’alimentazione ridotta. b) Coppia di spunto del motore b) Chiudere le serrande fino al raggiungimento insufficiente della piena velocità. Nel caso provvedere alla sostituzione del motore. Calo di prestazioni dopo un periodo di a) Perdita nel circuito a monte e/o a)Verificadel circuito e ripristino...
Troubleshooting Fault Causes Remedies a) Reduced supply voltage a) Check motor plate data Difficult start b) Close the air locks to reach full b) Insufficient motor static torque speed. If necessary, replace the motor Airflow performance drop after a a) Air leak before and/or after the fan a) Circuit check and restore to original period of acceptable operation...
SMONTAGGIO E MONTAGGIO DISASSEMBLY AND ASSEMBLY Prima di intraprendere qualsiasi operazione accertarsi che Before starting any operation, make sure the product is il prodotto non sia in funzione e non possa casualmente o excluded from any electrical connection and the impeller accidentalmente essere alimentato elettricamente (la is switched off.
