- Page 1 Datasheet MK105 User Manual MOKO Bluetooth Gateway Plug （MK105） User Manual MOKO TECHNOLOGY LTD. Version 1.0 www.mokosmart.com...
-
Page 2: Table Of Contents
Content 1. About This Manual ..................1 2. Product Introduction ................. 1 2.1 Overview..........................1 2.2 Application..........................1 2.3 Button Operation........................1 3. APP Operation ................... 2 3.1 APP Download......................... 2 3.2 Configure Server Information....................2 3.2.1 EMQTT Server Configuration.......................2 3.2.2 AWS Server Configuration........................4 3.3 Connect to Router........................ -
Page 3: About This Manual

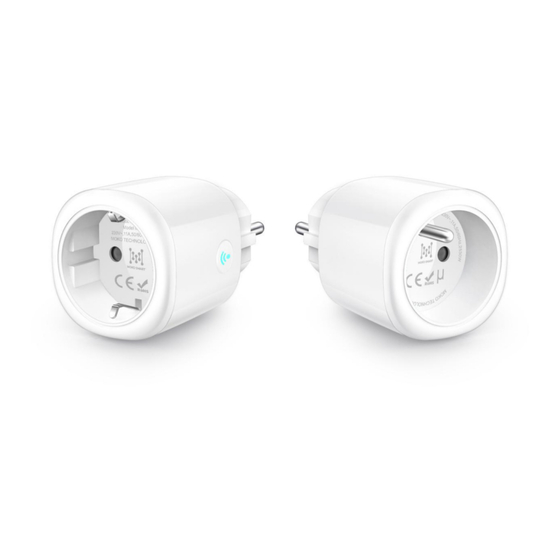

MK105 User Manual 1. About This Manual This document will briefly introduce the MK105 gateway plug and guide users how to operate the gateway using mobile APP. 2. Product Introduction 2.1 Overview MK105 is an IOT Bluetooth gateway plug that integrates WIFI and Bluetooth wireless technology. It is based on ESP32 solution and is cost-effective. -
Page 4: App Operation
Google play or APP Store for download. 3.2 Configure Server Information MK105 gateway supports multiple kinds of MQTT servers such as EMQTT, AWS IOT and Ali cloud IOT. This section will describe EMQTT connection and AWS connection using Android mobile phone. - Page 5 MK105 User Manual Host: Your server IP address or domain name Port: 1883 Username & Password: User authentication for connection Client Id: Unique client identity of APP connecting the server Connect mode: TCP Subscribed Topic and Publish Topic here can be empty ...
-
Page 6: Aws Server Configuration
MK105 User Manual Device Id: Use a random device id Connect Mode: TCP Subscribed Topic and Published Topic: Use the default topics directly, or set them as random characters. Note: The DEMO host 47.104.81.55 can be used directly if you need, just available for test. -
Page 7: Set The Gateway Via App
MK105 User Manual 3.4 Set the Gateway via APP 3.4.1 Scan BLE Devices Click the switch button to set the gateway start/stop scanning. The default scanning time is 65535s, that means the device will scan all the time. And the scanning time is settable, it can be set from 10 to 65535. -
Page 8: Set Filter Parameters
MK105 User Manual 3.4.2 Set Filter Parameters Click the “Edit Filter” to enter the edition page. Defaultly, the name filter, MAC filter and raw data filter are all disabled, you can enable these options according to the actual needs. RSSI Filter: Slide the icon to set a RSSI value. -
Page 9: About Ota
Note: The OTA server(Host: 47.104.172.169, port: 8080) in the above picture is just available for your test. If you need, MOKO can provide the lasted firmware upgrade packet, then you can paste the file to your server to operate OTA. -
Page 10: Data Reporting Setting
MK105 User Manual 3.4.5 Data Reporting Setting This parameter defines the time interval of device reporting data to server, you can set the value from 0 to 60(interval range should be 0-3 seconds), and default value is 20. www.mokosmart.com... -
Page 11: Factory Reset
MK105 User Manual 3.4.6 Factory Reset You can reset your gateway through the “Reset” button, then LED will flash blue and green alternately once, that means the gateway restores factory settings successfully. And you can also hold the button on the casing for 10 seconds to reset the plug. -
Page 12: Revision History
MK105 User Manual 4. Revision History Revision Description Editor Date V1.0 Initial Release Weiguifen 2020.12.15 MOKO TECHNOLOGY LTD. 4F, Building2, Guanghui Technology Park, MinQing Rd, Longhua, Shenzhen, Guangdong, China Tel: 86-755-23573370-829 sales@mokosmart.com https://www.mokosmart.com www.mokosmart.com...
