- Page 1 Datasheet MK106 User Manual MOKO Bluetooth Gateway Plug （MK106） User Manual MOKO TECHNOLOGY LTD. Version 1.0 www.mokosmart.com...
-
Page 2: Table Of Contents
Content 1. About This Manual ..................1 2. Product Introduction ................. 1 2.1 Overview..........................1 2.2 Applications..........................1 2.3 Button Operation........................1 3. APP Operation ................... 2 3.1 APP Download......................... 2 3.2 Configure Server Information....................2 3.2.1 EMQTT Server Configuration.......................2 3.2.2 AWS Server Configuration........................4 3.3 Connect to Router........................ -
Page 3: About This Manual

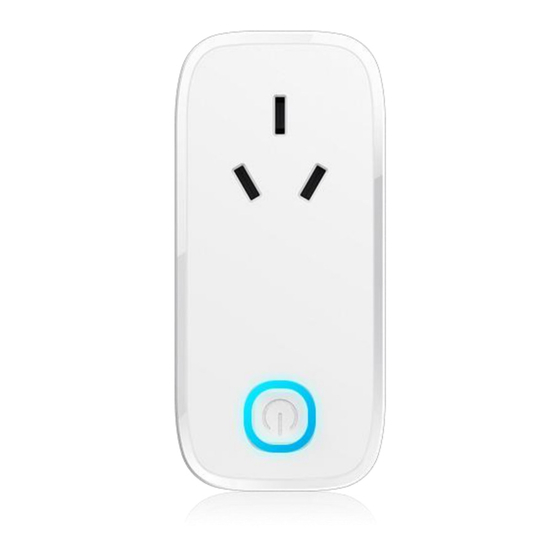

MK106 is an IOT Bluetooth gateway plug that integrates WIFI and Bluetooth Low Energy wireless technology. MK106 gateway is suitable for type I socket, and easy for installation. The plug works as a BLE scanner to gather Bluetooth broadcast data of surrounding BLE devices, and upload these data frames to MQTT server through 2.4Ghz WIFI. -
Page 4: App Operation
Google play or APP Store for download. 3.2 Configure Server Information MK106 gateway supports multiple kinds of MQTT servers such as EMQTT, AWS IOT and Ali cloud IOT. This section will describe EMQTT connection and AWS connection using Android mobile phone. - Page 5 MK106 User Manual Host: Your server IP address or domain name Port: 1883 Username & Password: User authentication for connection Client Id: Unique client identity of APP connecting the server Connect mode: TCP Subscribed Topic and Published Topic here can be empty 3.
-
Page 6: Aws Server Configuration
MK106 User Manual Device Id: Use a random device id Connect Mode: TCP Subscribed Topic and Published Topic: Use the default topics directly, or set them as random characters. Note: The DEMO host 47.104.81.55 can be used directly if you need, just available for test. -
Page 7: Set The Gateway Via App
MK106 User Manual 3.4 Set the Gateway via APP 3.4.1 Scan BLE Devices Click the switch button to set the gateway start/stop scanning. The default scanning time is 65535s, that means the device will scan all the time. And the scanning time is settable, it can be set from 10 to 65535. -
Page 8: Set Filter Parameters
MK106 User Manual 3.4.2 Set Filter Parameters Click the “Edit Filter” to enter the edition page. Defaultly, the name filter, MAC filter and raw data filter are all disabled, you can enable these options according to the actual needs. RSSI Filter: Slide the icon to set a RSSI value. -
Page 9: Ota
Note: The OTA server (Host: 47.104.172.169, port: 8080) in the above picture is just available for your test. If you need, MOKO can provide the lasted firmware upgrade packet, and then you can paste the file to your server to operate OTA. -
Page 10: Data Reporting Setting
MK106 User Manual 3.4.5 Data Reporting Setting This parameter defines the time interval of device reporting data to server, you can set the value from 0 to 60 (interval range should be 0-3 seconds), and default value is 20. 3.4.6 Factory Reset You can reset your gateway through the “Reset”... -
Page 11: Remove Device
MK106 User Manual 3.4.7 Remove Device “Remove Device” button is used to remove a device from your APP. You can also operate it in the device list page. www.mokosmart.com... -
Page 12: Revision History
MK106 User Manual 4. Revision History Revision Description Editor Date V1.0 Initial Release Weiguifen 2020.12.25 MOKO TECHNOLOGY LTD. 4F, Building2, Guanghui Technology Park, MinQing Rd, Longhua, Shenzhen, Guangdong, China Tel: 86-755-23573370-829 sales@mokosmart.com https://www.mokosmart.com www.mokosmart.com...
