Fromm FS335 Operator's Manual

Turntable - mast
Hide thumbs Also See for FS335:
Table of Contents

Advertisement

Quick Links

Download this manual

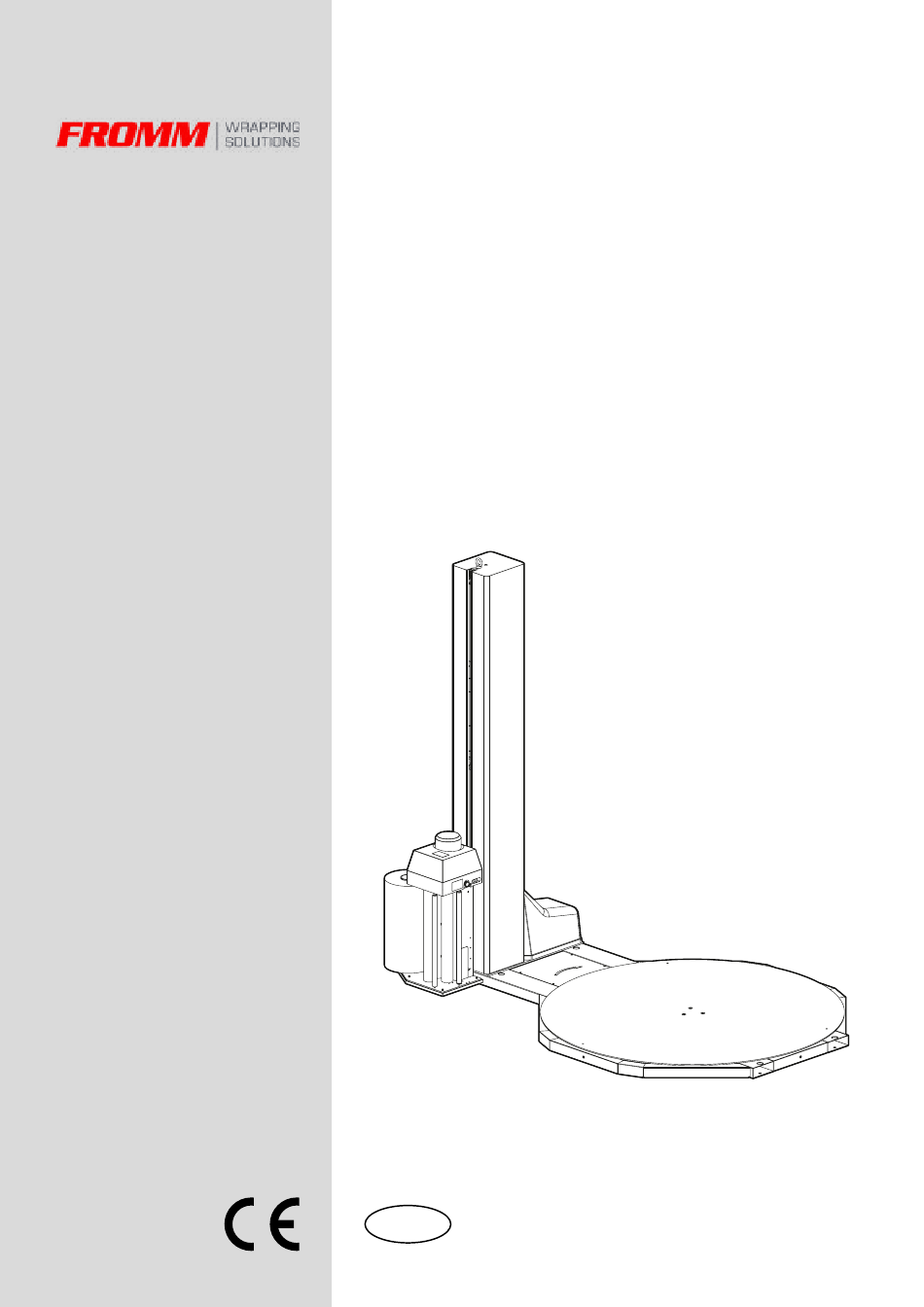

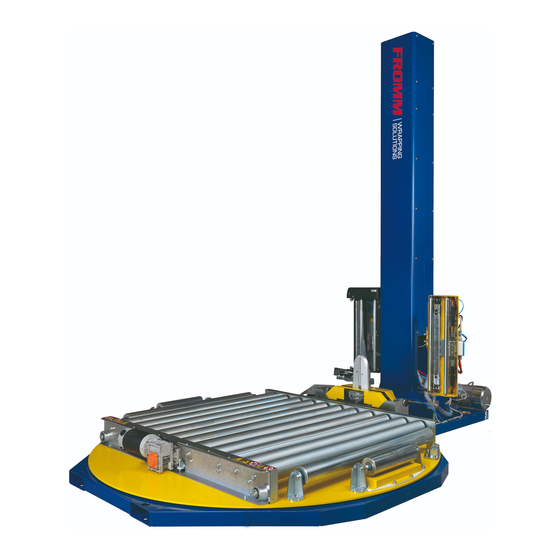

Turntable - Mast
FS335
FS370
FS340-350-380-385
Operator Panel
Translation of the original
Fromm Holding AG
Hinterbergstrasse 26
6312 Steinhausen
Switzerland
EN
Rev.2 01/03/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS335 and is the answer not in the manual?

Questions and answers

Related Manuals for Fromm FS335

Summary of Contents for Fromm FS335

  • Page 1 Turntable - Mast FS335 FS370 FS340-350-380-385 Operator Panel Translation of the original Fromm Holding AG Hinterbergstrasse 26 6312 Steinhausen Switzerland Rev.2 01/03/2021...

  • Page 3: Table Of Contents

    1.1.2 FS370 - FS340-350-380-385 PANEL ..........2 1.1.3 CONTROLS DESCRIPTION ............3 1.1.4 FS335 / FS370 / FS340-350-380-385 OPERATION ....... 4 FUNCTIONS CONTROL PANEL FUNCTIONS............... 7 ADDITIONAL MANUAL CONTROLS ............. 11 AUTOMATIC CYCLES ................12 SEMIAUTOMATIC OPERATING CYCLE ..........14 ALARM LIST ..................

  • Page 5: General Controls

    GENERAL CONTROLS GENERAL CONTROLS COMMANDS WITH BUTTONS 1.1.1 FS335 PANEL Picture 1 Fromm...

  • Page 6: Fs370 - Fs340-350-380-385 Panel

    Operator Panel | TURNTABLE - MAST 1.1.2 FS370 - FS340-350-380-385 PANEL Picture 2 Rev.2 01/03/2021...

  • Page 7: Controls Description

    During the cycle or manually moving the film carriage, it indicates the current height; The central and left points are decimal points for the values. When the right point is lit, the V+ and V- keys are blocked and the parameter values cannot be changed. Fromm...

  • Page 8: Fs335 / Fs370 / Fs340-350-380-385 Operation

    Operator Panel | TURNTABLE - MAST 1.1.4 FS335 / FS370 / FS340-350-380-385 OPERATION » See Picture 1 - pag. 1 Loading of parameters: takes place automatically by selecting the desired programme. » See Picture 2 - pag. 2 Saving of parameters: if the LED of the RESET key (E) is turned off, press the RESET key for more than 4 seconds.
  • Page 9 F24. NOTE: It is also possible to order models with film consumption expressed in metres. In this case as well, to obtain good precision, correctly set the diameter of the measurement roller in the parameter F24. Fromm...
  • Page 10 The LED next to the FOOTBOARD MANUAL button indicates the automatic command of footboard rotation. Operator Panel | TURNTABLE - MAST The LED next to the MANUAL CARRIAGE RISE indicates the automatic command of the carriage rise. The LED next to the MANUAL CARRIAGE DESCENT indicates the automatic command of the carriage descent.

  • Page 11: Functions

    FUNCTIONS FUNCTIONS CONTROL PANEL FUNCTIONS FS370 FS340- FS335 350-380- Synthesi Synthex Mytho This parameter is used to prevent cycle parameters from being overwritten: 0 block, 1 release Set cycle: 01 up and down 02 up or down; 03 manual; 04 fast...
  • Page 12 (product presence photocell disabled) Tension of film during bottom wrapping: selectable from 0 to FS370 FS340- FS335 350-380- Tension of film during the ascent of the carriage: selectable from 0 to 100 Tension of film during top wrapping: selectable from 0 to 100...
  • Page 13 FS370 Film exit time after cutting: 0 ÷ 100 tenths of a second FS340- FS335 350-380- Film extraction time with light tension at the beginning of the cycle Upward cycle in steps of the roll holder carriage; 0 = disabled...
  • Page 14 Number of final rotations at the base of the product; if F38 = FS370 0, do not perform creasing FS340- FS335 350-380- Crease closing adjustment time (permits wrapping with partially closed film) Presser rise time in the cycle with F22 = 1 (F22 Cycle with...

  • Page 15: Additional Manual Controls

    Button (B) Lift creasing carriage Button (G) Lower creasing carriage Roller conveyors forward, aligns the pallets with the first available Button (B) photocells Roller conveyors forward, unloads the pallets from the line (when Button (G) applicable) Button (B) Cutting actuation Fromm...

  • Page 16: Automatic Cycles

    Operator Panel | TURNTABLE - MAST AUTOMATIC CYCLES » See Picture 4 - pag. 12 F01 = 01 - COMPLETE UP/DOWN CYCLE Automatic cycle which wraps the pallet starting from the bottom, reaching the top and returning to the bottom. During winding, buttons (B) (carriage going up) or (G) (carriage going down) can be pressed to stop the carriage, add extra wraps wherever required, and start it again.
  • Page 17 Automatic Up and Down cycle or Up only with a pause when the top of the product being wrapped is reached; before the pause the carriage can descend by a distance set with F23. The machine stop and wait to Fromm restart emitting a slow intermittent signal. If the machine has a presser,...

  • Page 18: Semiautomatic Operating Cycle

    - The table begins to turn and the wrapping phase of the product on the pallet starts. Operator Panel | TURNTABLE - MAST - At the end of the cycle the turntable stops and the presser plate returns upwards, leaving the product free for unloading. To manually control the ascent and descent of the pressure unit the Functions display needs be set to F21 (which needs to be set to 1 as Value) and press button (B) for ascent or button (G) for descent.

  • Page 19: Alarm List

    - Check the correct operation of the sensor, - The roll holder carriage does not bringing it close to a metallic object. If the LED move, even with manual controls. lights up, replace the cable, if the sensor does Fromm not work, it needs to be replaced.
  • Page 20 this warning. shut down and then restarted: Press the RESET button (no power) or bell (touch). Carriage, crush - Obstacle below the carriage. - Remove the obstacle and press RESET. Operator Panel | TURNTABLE - MAST prevention limit switch - The E04 alarm persists without any - Check the proper mechanical operation of the triggered obstacle.
  • Page 21 - Check operation of the bottom sensor and descent command replace if broken. (creasing) - Make sure there are no mechanical obstacles. Presser carriage - Presser plate blocked. - Manually rotate presser plate. Fromm descending but the The presser plate cam must pass <2 mm from...
  • Page 22 Creasing block during - Creasing blocked on the bottom - Check motor operation. opening sensor. - Check electrical connection - Make sure there are no mechanical obstacles. Operator Panel | TURNTABLE - MAST - Check sensor operation Top limit switch error: did - The carriage blocked during ascent.
  • Page 23 - Timeout unloading pallet. - Check loading of the pallet. during pallet unloading (Tables) Alarm maximum timeout - Timeout transporting pallet. - Check the pallet transport on the roller units. during transport of a pallet on the entry roller units (Tables) Fromm...

  • Page 24: Restart After An Alarm Or As Result Of Torn / Finished

    Operator Panel | TURNTABLE - MAST 2.5.1 RESTART AFTER AN ALARM OR AS RESULT OF » See Picture 5 - pag. 20 TORN / FINISHED FILM - Wait until the machine has stopped and brought the trolley to the reel replacement level (alarm E09). - Solve the problem that triggered the alarm or replace the reel should this be finished, attach the film to the pallet again.
  • Page 26 Fromm Holding AG Hinterbergstrasse 26 6312 Steinhausen Switzerland...
