- 1 Assembly Instructions
- 2 Step 1: Place the Writing Desk Top (A) and End Frames (B)
- 3 Step 2: Assemble the L-Brackets (L) to the End Frames
- 4 Step 3: Connect the End Frames (B) to the Desk Top
- 5 Step 4: Install the Back Stretcher (C)
- 6 Step 5: Tighten Bolts
- 7 Step 6: Connect the Ends of the Back Stretcher
- 8 Removing and Reinstalling Drawers
- Download this manual
End Frame
Desk Top
(Right & Left)
1 pc.
M5/16" x 1-3/8"
5/16"x19x2mm
Allen Head Bolt
Flat Washer
12 pcs.
M5/16" x 5/8"
5mm Allen
Allen Head Bolt
Wrench
1 pc.
Furniture Tipping
Restraint Kit
#46130-1
Vogue
Home Office
Assembly Instructions
Back Stretcher
2 pcs.
5/16" Spring
Washer
20 pcs.
'L' Bracket
8 pcs.

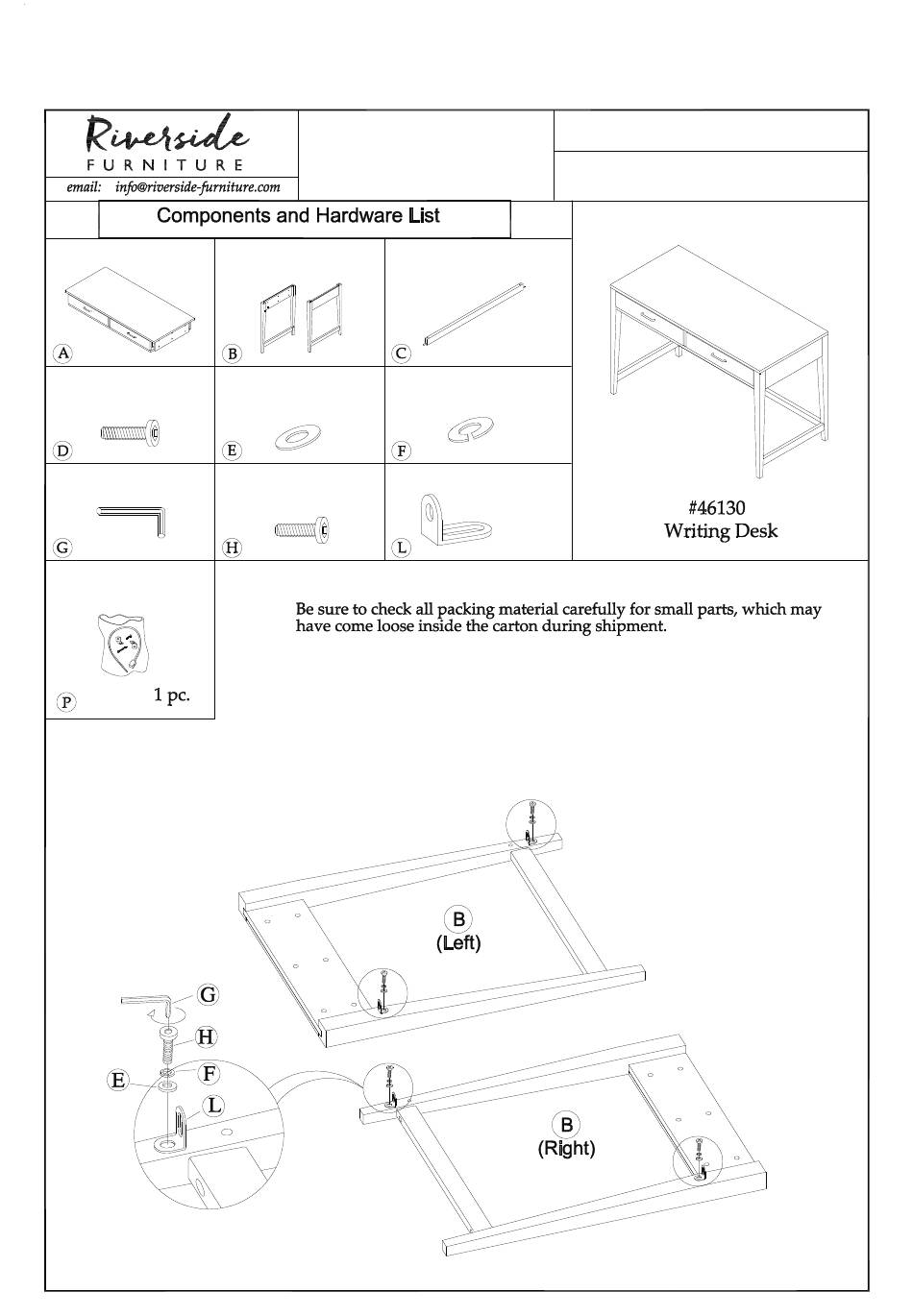

Step 1. Place the Writing Desk Top (A) and End Frames (B) face
down on a clean and soft surface.
Step 2. Assemble the L-Brackets (L) to the End Frames using the
Allen Head Bolts (H) Spring Washers (F) and Flat Washers (E).
Check that they are oriented correctly and tighten with the Allen
Wrench (G) as shown.
Page 1 of 2
Made in Viet Nam
1 pc.
20 pcs.
4 pcs.
