User Manual
S-8FE-2UE-LD-AI-VLAN

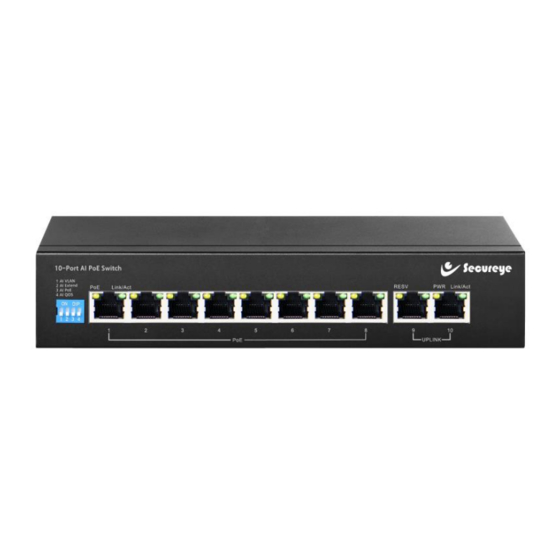

10 Port 10/100Mbps AI PoE switch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-8FE-2UE-LD-AI-VLAN and is the answer not in the manual?

Questions and answers

Related Manuals for Secureye S-8FE-2UE-LD-AI-VLAN

Summary of Contents for Secureye S-8FE-2UE-LD-AI-VLAN

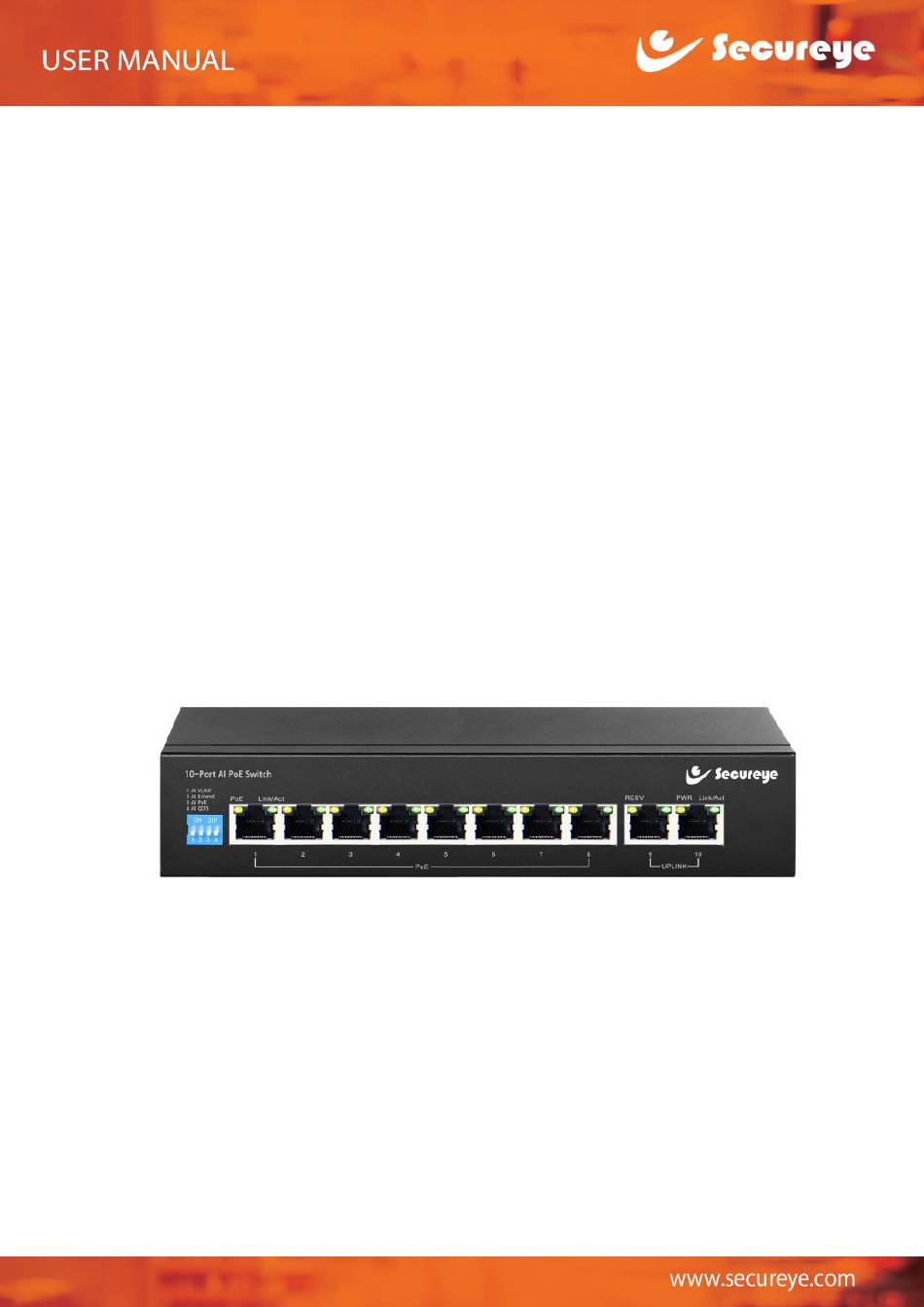

  • Page 1 User Manual S-8FE-2UE-LD-AI-VLAN 10 Port 10/100Mbps AI PoE switch...
  • Page 2 Overview S-8FE-2UE-LD-AI-VLAN is a 10 port built-in power 10/100Mbps PoE switch. It has 4 working modes, VLAN mode, CCTV extend mode, AI POE mode, QOS mode. All ports are free to communicate by default; In VLAN mode, 1 -8ports are isolated from each other, which can effectively restrain network storms and improve network performance.
  • Page 3 Technical Specification · 8 10/100Mbps PoE RJ45 port (port 1～port 8) Network Port · 2 10/100/Mbps non-POE RJ45 port(port 9~port 10) Transfer Rate ·100Mbps full Duplex, Network protocol ·IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3ab,IEEE802.3af and standard IEEE802.3at ·Bandwidth: 2.0Gbps(no block) ·Frame filtering and transmission rate: 10M port maximum 14,800pps Performance 100M port maximum 148,800pps...
  • Page 4 Installation diagram Caution 1. In order to safety, please non-professionals don’t open the casing of product; 2. Please be careful the risk of strong current and security protection when products carry power; 3. Please select the right power adaptor provide power for PoE switch, before using please confirm if is it accord with the requirement of PoE switch;...
