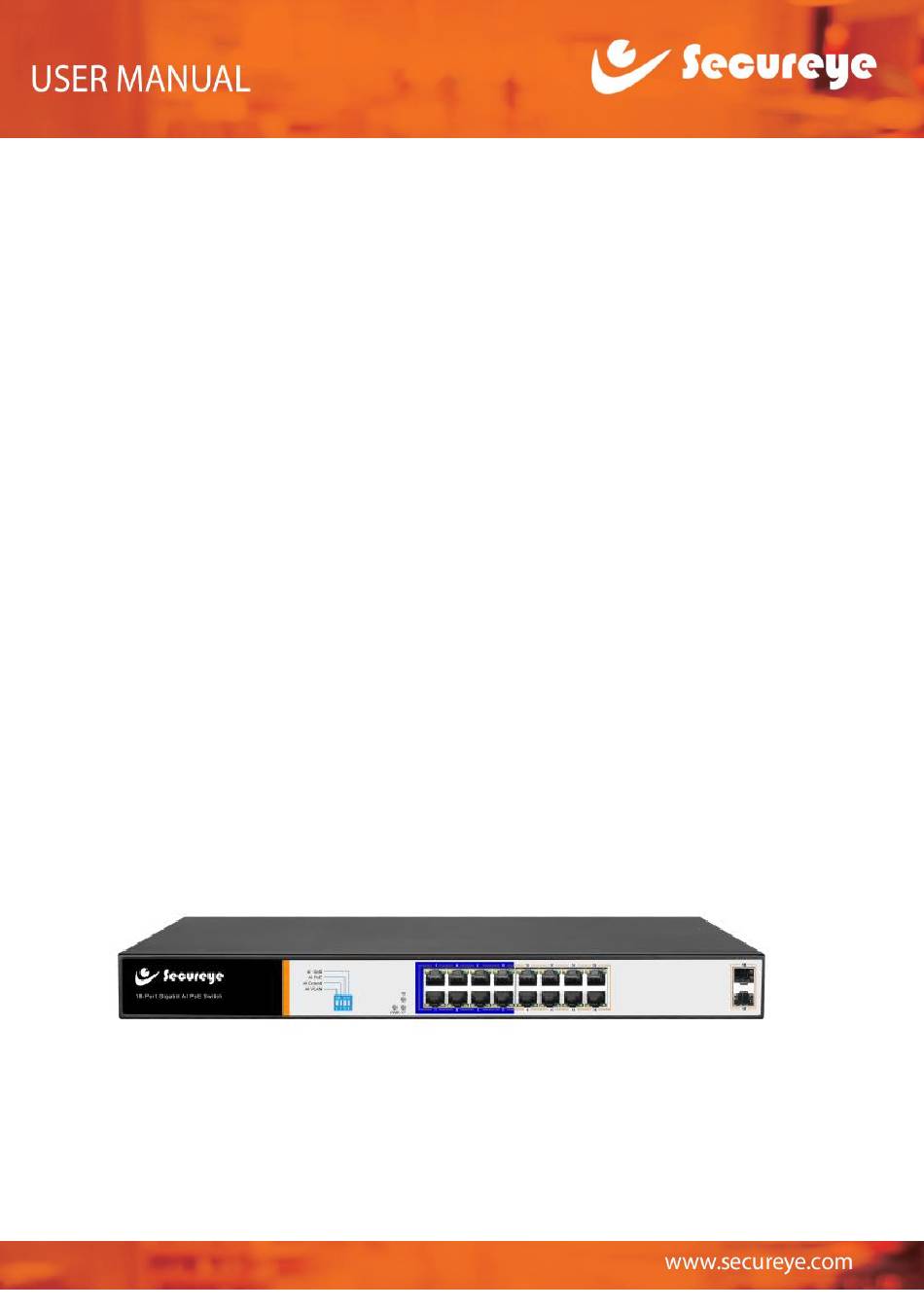

- Page 1 User Manual S-16GE-2UG-LD-AI-VLAN 16 port Gigabit AI POE Switch...
- Page 2 Instruction manual 《User Manual》mainly introduce S-16GE-2UG-LD-AI-VLAN hardware feature, installment method and attention items. Including these section： The first section：product introduction. Mainly introduce POE switch function, feature and appearance. The second section：product installment. Guide POE switch hardware installment method and attention items.
-
Page 3: Product Profile
AI POE switch, 16 10/100/1000Mbps POE port with2 Gigabit SFP Ports. S-16GE-2UG-LD-AI-VLAN can carry power to IP camera, wireless AP, wireless bridge, IP phone .S-16GE-2UG- LD-AI-VLAN is with 4 working mode, In AI VLAN mode, 1 -16 ports are isolated from each other, which can effectively restrain network storms and improve network performance. -
Page 4: Product Appearance
IEEE802.3at standard POE supply power. When working mode is Extend mode, port1- port 8 can support 250m supply power SFP Port S-16GE-2UG-LD-AI-VLAN is with two gigabit SFP port（17,18）, use for gigabit SFP module. Working mode key AI Extend: 1-8 port supports 250M meters long distance power supply (recommended cat 5... -
Page 5: Rear Panel
◼ Rear panel Including：Power socket、ground terminal Power socket Connection power cord to POE switch S-16GE-2UG-LD-AI-VLAN power supply is AC100-240V~50/60Hz. Ground terminal Please use guide line ground connection, in case lighting stroke. In order to avoid the product sustain lighting stroke and extend using lifetime. - Page 6 ⚫ Before POE switch supply power, please confirm it won’t cause power supply circuit overload, for fear that affecting POE switch work normally, even cause unnecessary destroy； ⚫ Avoiding electric shock dangerous, please don’t open the casing when POE switch work, even if without power condition, don’t open the casing too;...
- Page 7 Electromagnetic interference Electromagnetic interference can affect the device internal capacitance, inductance, in order to reduce electromagnetic interference factor cause adverse effect, please pay attention to the following of items: Supply power system adopt necessary anti power grid interference measure; PoE switch should be far away from high frequency power, high current device, such as wireless launch pad；...
-
Page 8: Product Installation
2.2 Product Installation S-16GE-2UG-LD-AI-VLAN is designed according to the standard 19-inch rack size, you can easily install to the rack, the specific installation steps are as follows: check the rack grounding and stability； two pieces L type bracket differentiate install to the two sides of POE switch panel and fix with screw Put POE switch on the appropriate location of the rack, crutch by bracket;... - Page 9 Ethernet cable can be used; Don’t use RJ45 port to connect telephone cable. 3.2 Connection SFP port S-16GE-2UG-LD-AI-VLAN SFP port just only support gigabit SFP module. Suggestion to use standard SFP module. The process of POE switch install SFP module is as follow：...
-
Page 10: Device Initialization
When connection, please confirm SFP module RX and Tx port, the side of fiber optic corresponding insert Rx and Tx port, Make sure Tx and Rx port connection correctly, the another side of fiber connect to another device; after powered，please check the corresponding indicator light status. If light is on, show the link already connect normally, light is off, show the link is blocked. - Page 11 The forth section product hardware specification 4.1 hardware specification IEEE 802.3i IEEE 802.3u IEEE 802.3x Standard IEEE 802.3ab IEEE 802.3af IEEE 802.3at 16 10/100/1000Mbps RJ45 ports Port 2 Gigabit SFP ports 16 10/100Mbps RJ45 PoE ports Total power budget: 150W Single port max.
