C 24
User guide
Step 4
Connect the power supply to the 230Vac 50 Hz terminal block between L and N and the earth
terminal. Make the wiring to the luminaires in each one of the available outputs (OUT) and in case
that auxiliary inputs and outputs are needed (see drawings in the following pages). After this, please
connect the batteries and place the cover of the central.

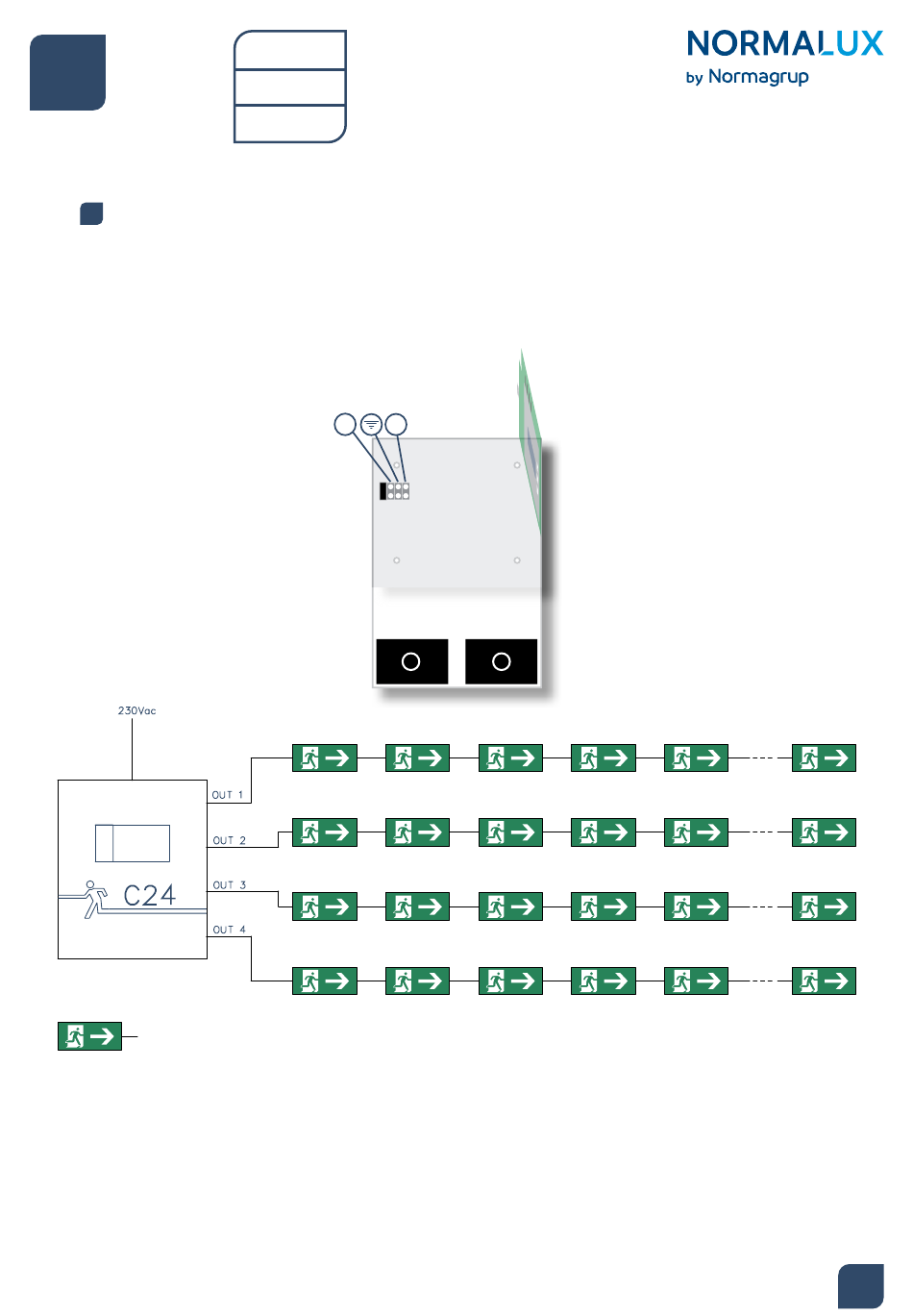

Emergency lighting (C24)
The maximum number of luminaires to be connected in a central can be calculated following the
table on page 2, with a maximum power limint of 3.5A on each of the 4 outputs (although some
countries establish a limit of 12 or 20 units per output). The power of each fitting is a feature of the
fitting itself, so this must be checked in its technical datasheet.
The distance and cable section to be used in the outputs is calculated following the instructions on
page 28.
Central
Battery
System
L N
1 2
7
