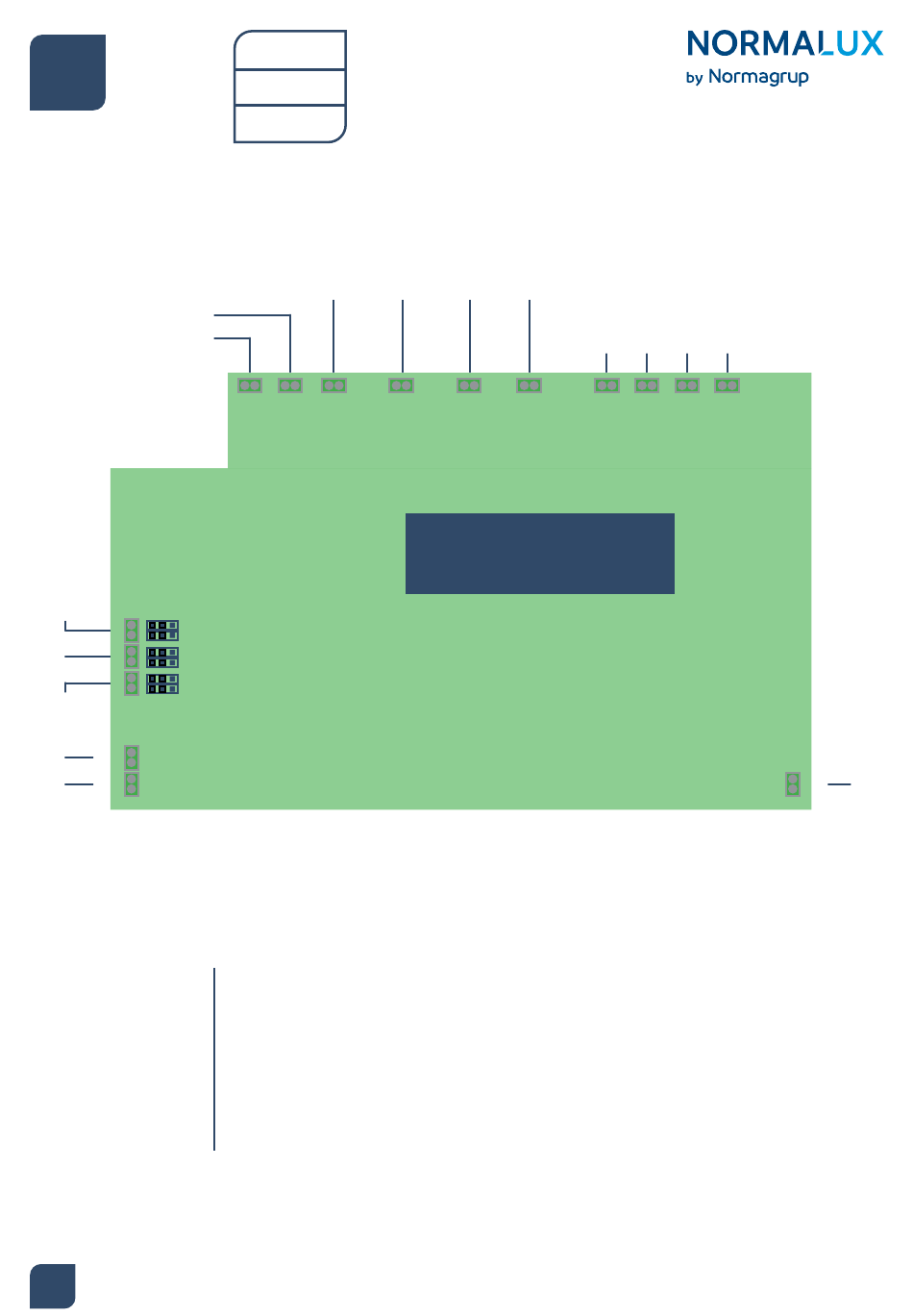

5. Electrical connection

OUT AUX
SYSTEM
WORK
BATT
SUPPLY
FAIL
+
BAT2
-
+
BAT1
-
· SL (Sense Loop): Input to connect a phase monitor. If this is not connected it should remain jumpered.
· OUT AUX: Auxiliary output to interconnect centrals by means of the SL (Sense Loop) output.
·
· OUT 1: Output 1.
· OUT 2: Output 2.
· OUT 3: Output 3.
· OUT 4: Output 4.
8
Central
Battery
System
OUT 1
SL
RELAYS
JUMPERS
24v y 3,5A max. outputs, protected against short-circuit, by fuse and electronic
cut. These outputs include an amperimeter (class <1.5). It is able to inform the
controller about the exact amount of current in the mentioned output.
It also provides a small current (when the fitting is off ) to turn a green LED
installed in the luminaries on.
OUT 2 OUT 3 OUT 4
LSS1 LSS2 LSS3 LSS4
A
MODBUS
B
