Popp

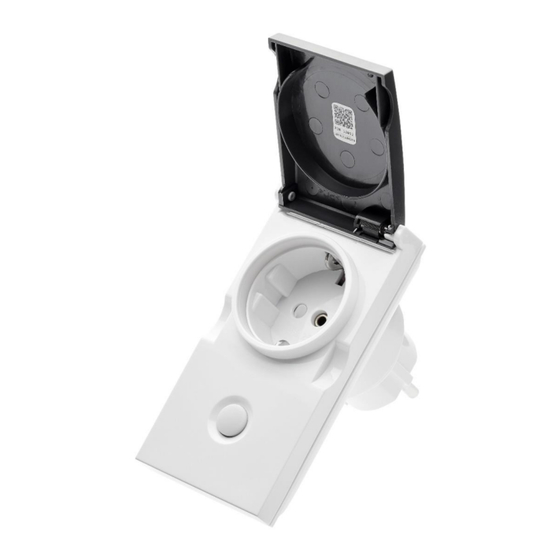

Smart Outdoor Plug
SKU: POPE700397

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POPE700397 and is the answer not in the manual?

Questions and answers

Summary of Contents for Popp POPE700397

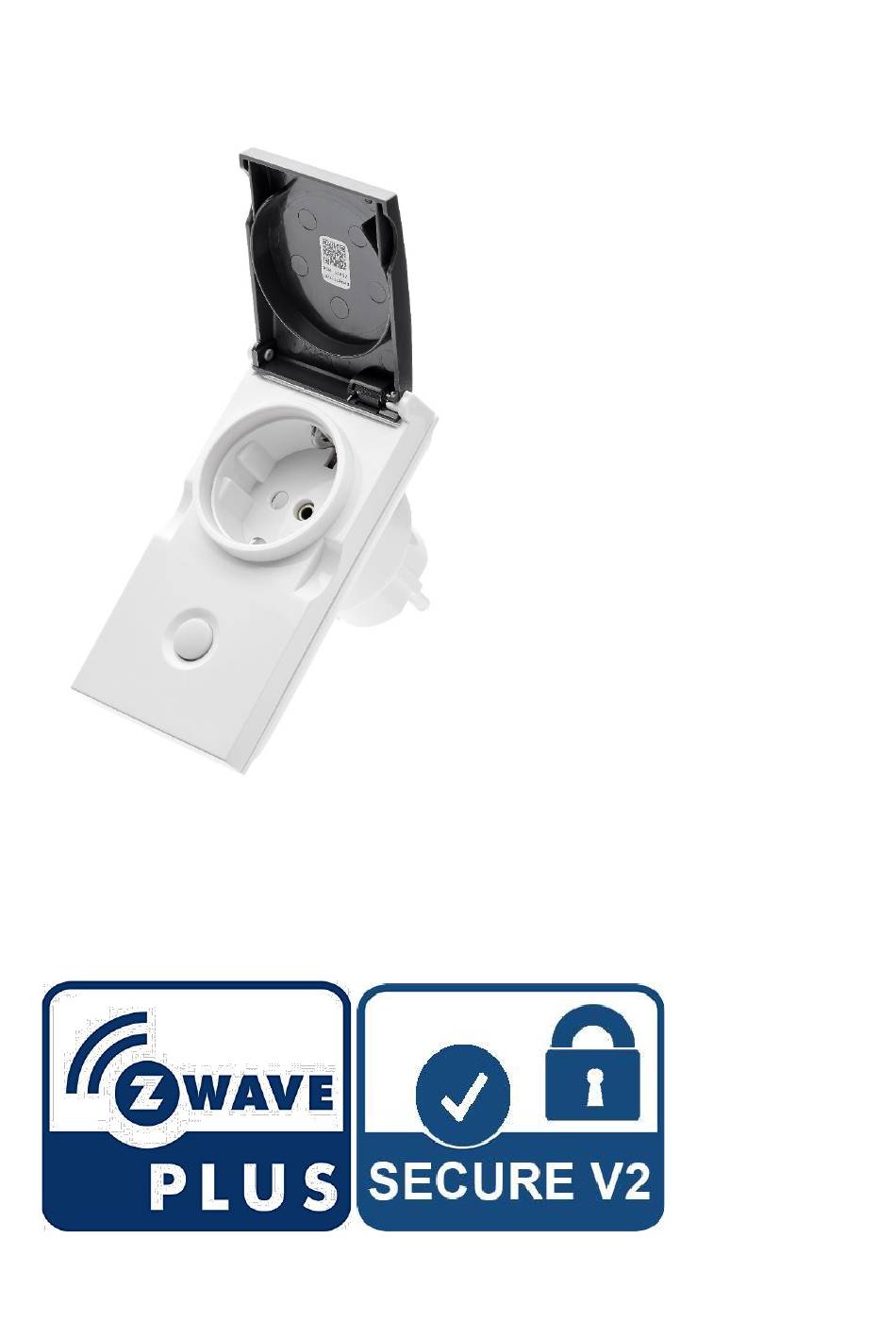

  • Page 1 Popp Smart Outdoor Plug SKU: POPE700397...
  • Page 2: Quick Start

    Quickstart This is a secure On/Off Power Switch for Europe. To run this device please connect it to your mains power supply. Adding (Inclusion) and removing (Exclusion) of the device are confirmed by a triple click of the button. Fast blinking LED indicates the factory reset state. The device supports the Security S2 framework with unauthenticated network keys.
  • Page 3: Prepare For Installation / Reset

    All metering values can be requested from the central controller and will be reported unsolicited if configured. Prepare for Installation / Reset Please read the user manual before installing the product. In order to include (add) a Z-Wave device to a network it must be in factory default state.
  • Page 4: Quick Troubleshooting

    local load or sends scene activation commands to the central gateway. Quick trouble shooting Here are a few hints for network installation if things dont work as expected. 1. Make sure a device is in factory reset state before including. In doubt exclude before include.
  • Page 5 Maximum Group Number Description Nodes Lifeline Control other devices on single click of the button. BASIC c switching state of the load. Configuration Parameters Z-Wave products are supposed to work out of the box after inclusion, however certain configuration can adapt the function better to user needs or unlock further enhanced features. IMPORTANT: Controllers may only allow configuring signed values.
  • Page 6 This parameter defines if the local button shall control (switch) the load or it is only used to send out scene control commands to the central controller. Size: 1 Byte, Default Value: 0 Setting Description Controls Load + Controls Scenes Scene Control Only Parameter 5: Status after Power Failure Defines the switching status after a power failure or unplugging...
  • Page 7 Report the current when the current has changed by more then X *0,01 A. When disabled the device will report every 10 minutes regardless of current change. Size: 1 Byte, Default Value: 10 Setting Description Disabled 1 - 255 * 0,01 A Parameter 25: Power Reporting Threshold Report the power when the power has changed by more then X Watt.
  • Page 8 Technical Data Dimensions 114x59x92 mm mm Weight 153 gr Hardware Platform ZM5101 4251295700397 IP Class IP IP44 Voltage 230V Load 3500 W Device Type On/Off Power Switch Generic Device Class Binary Switch Specific Device Class Binary Power Switch Firmware Version 03.01 Z-Wave Version 6.01...
  • Page 9: Explanation Of Z-Wave Specific Terms

    • Security 2 • Transport Service Explanation of Z-Wave specific terms Controller — is a Z-Wave device with capabilities to manage the network. • Controllers are typically Gateways,Remote Controls or battery operated wall controllers. Slave — is a Z-Wave device without capabilities to manage the network. Slaves •...
