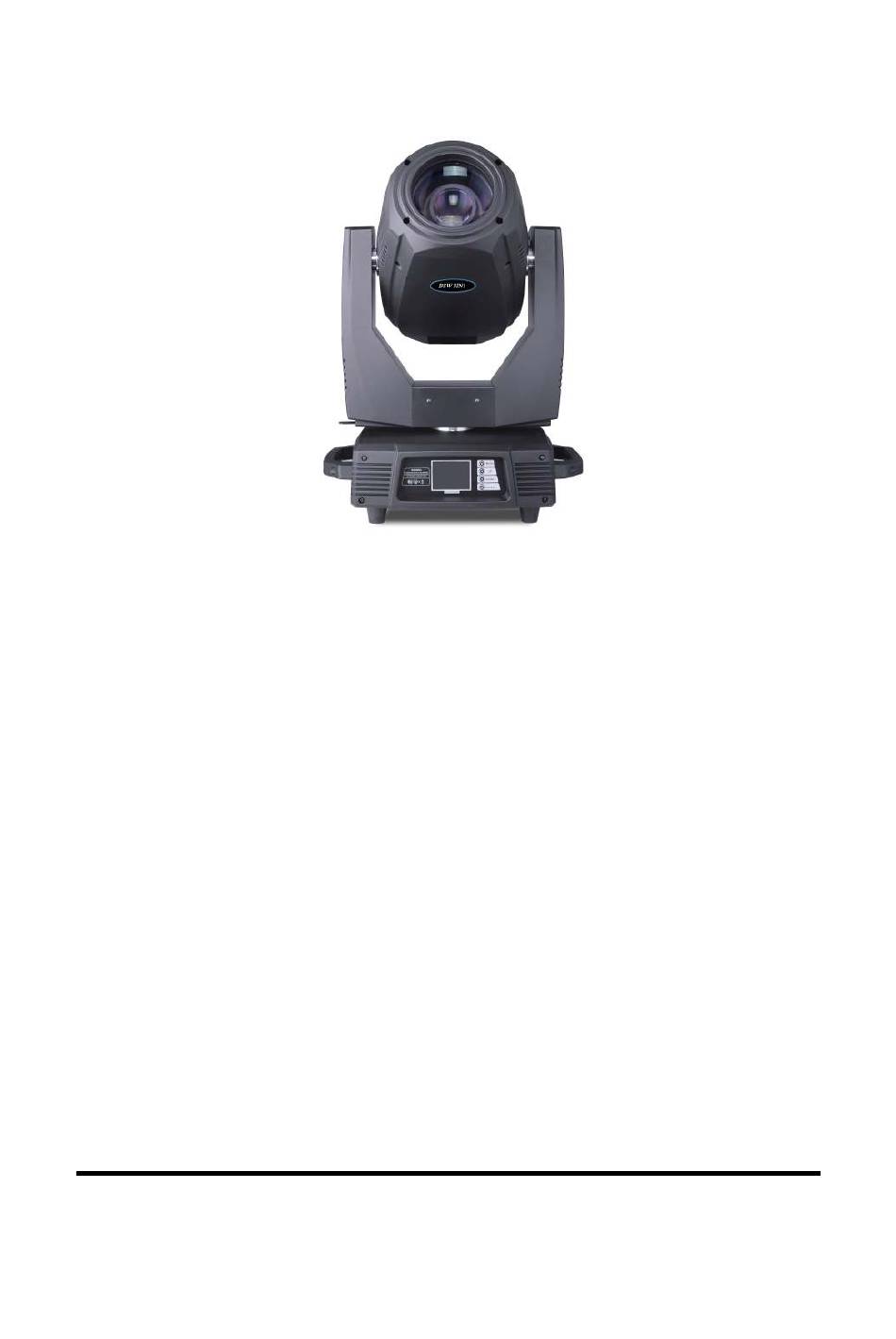

- Page 1 350Beam Spot Wash 3in1 Moving head User manual Thanks for choosing our goods please read this manual carefully before your operating...
-
Page 2: Table Of Contents
Contents Introduction............3 Dimensions............4 Safety Information..........5 Using for the first time........7 AC power............8 Data link..............8 Setup..............9 Menu chart............10 DMX Protocol&Channel Function....14 Service and maintenance........19 Cleaning..............20... -
Page 3: Introduction
Introduction 350W Beam Spot Wash 3 in 1 Moving head light Voltage:AC100V-240V 50/60Hz Power Consumption:500W Light source:R17 350W Color Temperature:3200K-8000K Linear Adjustment Beam Angle: Beam0-1.5, Spot1.5°- 20° linear fast zooming. Focus:High precision optical lens,electronic linear control Linear Dimmer:Mechanical dimmer 0-100% Color Wheel:13 fixed color+open,half-tone effect, linear color conversion, bi-directionally rotatable at variable speeds and rainbow effect Rotating Gobo:8rotating gobos+White,bi-directional rotatable and gobo... -
Page 4: Dimensions
Dimensions... -
Page 5: Safety Information
Safety Information WARNING! Read the safety precautions in this section before ！ installing, powering, operating or servicing this product. This product is for professional use only. It is not for household use. The following symbols are used to identify important safety information on the product and in this manual: Protection DANGER! DANGER! - Page 6 PROTECTION FROM ELECTRIC SHOCK • Disconnect the fixture from AC power before removing or installing any cover or part and when not in use. • Always ground (earth) the fixture electrically. • Use only a source of AC power that complies with local building and electrical codes and has both overload and ground-fault (earth-fault) protection.
-
Page 7: Using For The First Time
PROTECTION FROM INJURY •When light up the fixture,please don’t look at the optical lens with eyes directly.Besides, don’t use the camera light to point at the optical lens. • Fasten the fixture securely to a fixed surface or structure when in use. The fixture is not portable when installed. -
Page 8: Ac Power
AC power Warning! Read “Safety Information” starting on page 5 before connecting this light to AC mains power. Warning! For protection from electric shock, this light must be grounded (earthed). The power distribution circuit must be equipped with a fuse or circuit breaker and ground- fault (earth-fault) protection. -
Page 9: Setup
Connecting the data link Connecting the data link To connect this light to data: 1. Connect the DMX data output from the controller to the closest this light male 5/3-pin XLR DMX input connector. 2. Connect the DMX output of the fixture closest to the controller to the DMX input of the next fixture and continue connecting fixtures output to input. -
Page 10: Menu Chart
Menu chart： Sub Menu UP/DOWN Main Menu Lock Remark: Lock Display Remark:Display 180° invert 中 Remark: Language 中 Sound Run Mode Random DMX Address 001-512 Std. 19CH Channel Mode Ext. 24CH Sound Regulator +003-- -003 Invert Pan Invert Tilt Setting Pan-Tilt Encoder KEEP NO DMX Signal... - Page 11 Sub Menu UP/DOWN Main Menu 1. Pan 000-255 2.Pan Fine 000-255 3. Tilt 000-255 4. Tilt Fine 000-255 5. Pan-Tilt Speed 000-255 6.Lamp Control&Reset ON/OFF/RESET 000-255 7.Color 000-255 8.ColourFine 000-255 9. Gobo Manual 000-255 10. Effect Gobo 000-255 11. Effect Gobo Rotation 000-255 12.
- Page 12 DMX Protocol 19Channel 24Channel DMX Value Function Channel 1 Channel 1 0 - 255 Pan fine Channel 2 Channel 18 0 - 255 Pan fine Tilt Channel 2 Channel 3 0 - 255 Tilt Tilt fine Channel 19 Channel 4 0 - 255 Tilt fine Pan - Tilt - (Pan fine - Tilt fine) Speed...
- Page 13 158-161 Color 7 162-166 Color 8 167-171 Color 9 172-176 Color 10 Channel 7 Channel 5 177-180 Color 11 181-185 Color 12 186-189 Color 13 Fast Rotation-Slow Rotation 190-220 221-255 Slow Rotation-Fast Rotation 0-255 Color Fine Channel 8 Static gobo wheel 0 - 3 WHITE 4 - 9...
-
Page 14: Dmx Protocol&Channel Function
GOBO14 Shake,Slow → Fast 192- 199 White 200- 201 Fast Rotation-Slow Rotation 202-227 Stop 228-229 230-255 Slow Rotation-Fast Rotation Rotating gobo wheel Small WHITE 1 - 4 Big WHITE 5 - 8 GOBO2-1 9 - 12 GOBO2-2 13- 16 GOBO2-3 17 - 20 GOBO2-4 21 - 24... - Page 15 Prism 1-Rotation Rotation 0- 127 Channel 14 Channel 10 Slow Rotation-Fast Rotation 128-189 Stop 190-192 Fast Rotation-Slow Rotation 193-255 Prism 2 Channel 15 Channel 11 Reserved 0- 127 Prism 2 128-255 Prism 2-Rotation Rotation 0- 127 Slow Rotation-Fast Rotation 128-189 Channel 16 Channel 12 190-192...
-
Page 16: Service And Maintenance
Gobo replacement Identification of gobo wheel To replace a gobo: • Disconnect the fixture from power and allow to cool. • Position the head and apply the tilt lock. • Remove the rear head cover located on the same side as the pan lock (A). -
Page 17: Cleaning
Cleaning Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. Environmental factors that may result in a need for frequent cleaning include: • Use of smoke or fog machines. • High airflow rates (near air conditioning vents, for example). •...
