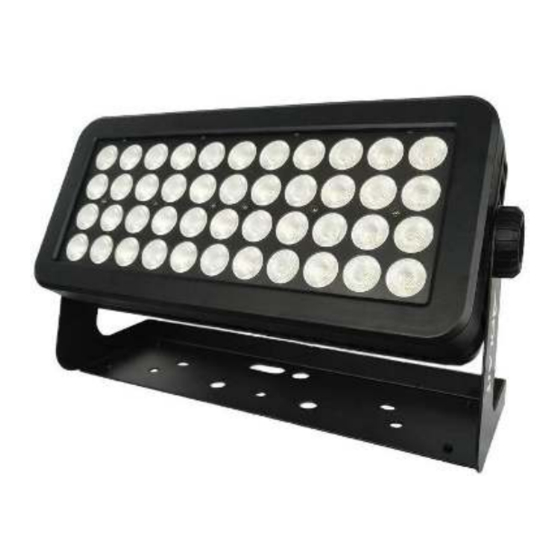

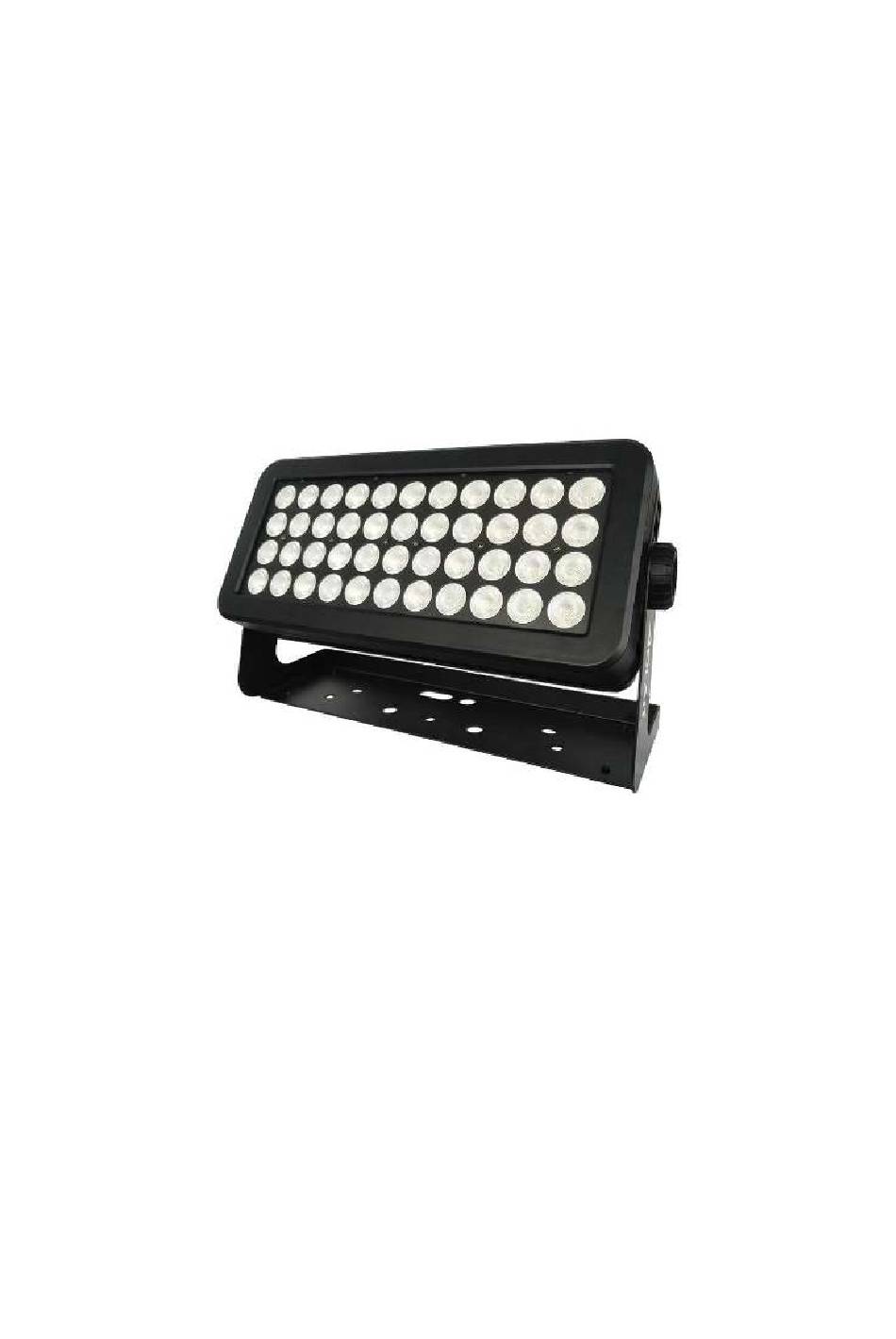

- Page 1 LED Outdoor Wash Light 44X10W RGBW 4in1 LED USER MANUAL Thank you very much for choosing our product. For safety purpose, please read this manual carefully before your operation. This manual included installation and using information. Please install and operate it according to this manual.
- Page 2 Part 1 PRODUCT 1.1 Product introduction This product is designed for indoor/outdoor use. Suitable applications include wash or effect lighting for architectural, stage or nightclub applications. This product can also be installed for use in signage and advertising using the dynamic functions available with DMX512 control.
- Page 3 ● A minimum distance of 0.5m must be maintained between the equipment and combustible surface. ● The product must always be placed in a well ventilated area. ● Always make sure that the equipment is installed securely. ● DO NOT stand close to the equipment and stare directly into the LED light source.
- Page 4 PART 2 INSTALLATION 2.1 Mounting 2.1-1 Hanging The product can be mounted in a hanging position using the supporting bracket. The bracket should be secured to the mounting truss or structure using a standard mounting clamp. Please note that when hanging the unit a safety cable should also be used 2.1-2 Upright The product can be mounted in an upright or sitting position using...
- Page 5 64-95 Green 96-127 Blue 128-159 White 160-191 Red+Green 192-223 Red+Blue 224-255 Green+Blue 0-50 No function 101-150 Color Change Macro Function 151-200 Color Gradual 201-255 Color Pulse Speed 0-255 Speed from slow to fast 2.3 Special construction for DMX connection ☆ At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors.
- Page 6 PART 3 Display Panel Operation 3.1 Disp la y panel menu instruction ] menu selection or return to previous menu. [MENU confirm & quit out current function setting. [ENTER] press [UP] through the menu list to increase/change the value [UP] of the current function.
- Page 7 Flash Fade Pulse Speed 0-255 Host Mode OFF/ON Language English/Chinese Backlight setting Auto/Keep on Cuve 1 System Cuve 2 Cuve Cuve 3 Cuve 4 Blackout Time(ms) 0-200 Devide Tou(min) Information About Soft version Part 4 Maintenance The cleaning of internal must be carried out periodically to optimize light output.
