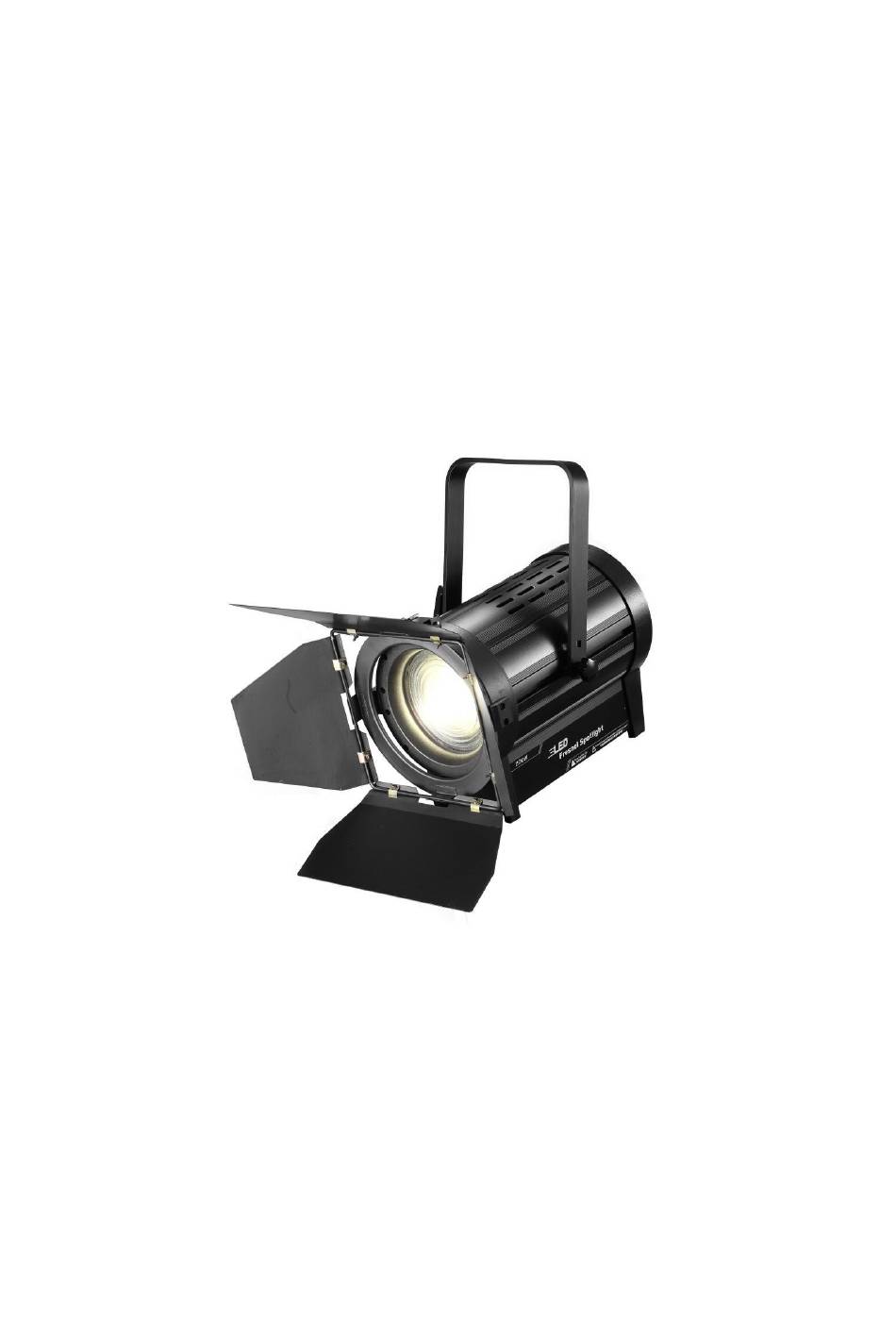

- Page 1 LED Fresnel Spotlight User Manual Professional lighting equipment Caution: please read this user manual carefully before you initially start-up...
-
Page 2: Table Of Contents
Catalogue 、Overview ....................3 、Packing list ....................4 、Product data ....................4 Product name ..................... 4 Product features ..................4 Scope of application ................... 5 Product description ..................5 、Technical parameters .................. 6 Technical parameters..................6 、Dimension、Mappings & Pictures of fittings ..........7 Dimension .................... - Page 3 Guarantee card All products sold by us are covered by 12 months warranty from the date of purchase. During this period, we will guarantee to keep the goods in repair if a failure occurs under normal operation. We assumes no responsibility for the following circumstance 1.
-
Page 4: Overview
Operation, Programming and Safety Manual 、Overview Thank you for purchasing our product. Before carrying out any operations with the product，carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. Please strictly follow it. -
Page 5: Packing List
Manual/Certificate If you need other fittings, please list them in your order. 、Product data Product name： 200W LED Fresnel Spotlight Product features 1) Made by fire-resistant Nylon material and aluminum profile which makes the lamp more lighter... -
Page 6: Scope Of Application
and installation 5) Much smoother dimming curve than the competitors 6) Efficient cooperation between the control system and the power-supply system ensure to avoid the current noise. Scope of application The surface light of stage and television, video conference system, film,etc. -
Page 7: Technical Parameters
floodlight according to the need. No matter the large range lighting for taking dolly shot, or the accumulation point light for high lighting shot, the lamp with continuous focusing function can be consistent with all shooting demands. The controlled and adjusted beam: precisely control the beam to make the actors stand out from the background, effective lighting device can avoid the overflow effect of astigmatism. -
Page 8: Dimension、Mappings & Pictures Of Fittings
➢ Color rendering index: CRI 90 ➢ Manual Dimmer：0%～100% ➢ Beam angle: 12°～55° ➢ Control system：16 Bit dimming,STM32 control chip,DMX512 ➢ Max Clock frequency: 72m/Hz ➢ Dimming Frequency: 8k/Hz ➢ Channels：1CH/2CH/3CH Optional ➢ Display screen：LCD ➢ Working Environment：-20℃～35℃ ➢ Tilt：±90° ➢... -
Page 9: Fittings
Fittings Connection of the power line Connection of the signal line... - Page 10 Moving yoke（Rail-type yoke with adjustable barycenter and angel） Manual zoom fitting Four-leaf Light barrier Mounting bolt hole（Φ13MM）...
-
Page 11: Control System Description
、Control system description Lamp power supply & connection of signal cable 1）Connection and control of the lamp power source The product uses 1.5 SQMM copper core cables to be the input line for power supply. When connecting the power line, the maximum of connecting lamps is 12 under voltage 220V;... -
Page 12: Operating Instructions
Diagram of signal connection 、Operating instructions Menu instruction ➢ Display screen Press the Menu until one of the following had been displayed: Menu Menu Menu Value Notes DMX address 0-512 Set DMX address CH01 Dimmer CHAN CH02 DimmerFine CH03 Strobe... - Page 13 0-255 Dimmer MANUAL 0-255 DimmerFine 0-255 Strobe Linear Linear curve Curve Index Index curve Logarithm curve RESET YES/NO Recover to manufactory default C.000 0-255 Current temperature TEMP Protecting temperature,factory T.060 setting is 55℃-60℃ Auto Fan speed auto control Manur 0-255 Fan speed manual control VERSION A106.4...
-
Page 14: The Characteristic Of Control System
DMX512 Channel table 1CH Channel table Channel Value Control function Rate Dimming, brightness from 0% Dimmer 0-255 2CH Channel table Channel Value Control function Rate Dimming, brightness from 0% Dimmer 0-255 DimmerFine 0-255 Brightness micro adjustment 3CH Channel table Channel Value Control function Rate... -
Page 15: Safety Instructions
then the system will enter the running mode saved before last power off in 1 second. ➢ Running mode: DMX mode and Manual dimming ◼ DMX mode: Enter this mode with DMX Address SET interface. In this mode, the lamp receives the signal from the DMX console; ◼... -
Page 16: 2）Warning
maximum of lamps is 12 under the voltage 220V; the maximum of lamps is 6 under the voltage 110V. The number of lamps for using the DMX512 input and output signal line is not limited; ➢ Do not install the lights near the heat source to avoid the rising of lamp temperature and affecting the normal use of lamps and lanterns, even damaging the lamp;... -
Page 17: Notes For Installation And Operation
、Notes for installation and operation ➢ 1. Installation ➢ （1)Before the location and installation of the lamp, ensure the stability of its installation point, which can hold at least 10 times the weight of the lamp. (2) Installation method: use one piece of professional clamp, M13 ➢... -
Page 18: Comparison Of Common Faults
、Comparison of common faults Comparison of common faults Problems Reason and resolution 1、Check if the power line is connected Lamp not work 2、Check if the lamp work under the required voltage Lamp work，not 1、Check if the DIP starting address code setting control by the is correct controller...
