Daikin RKD24HV2S Service Manual page 5

Si001168

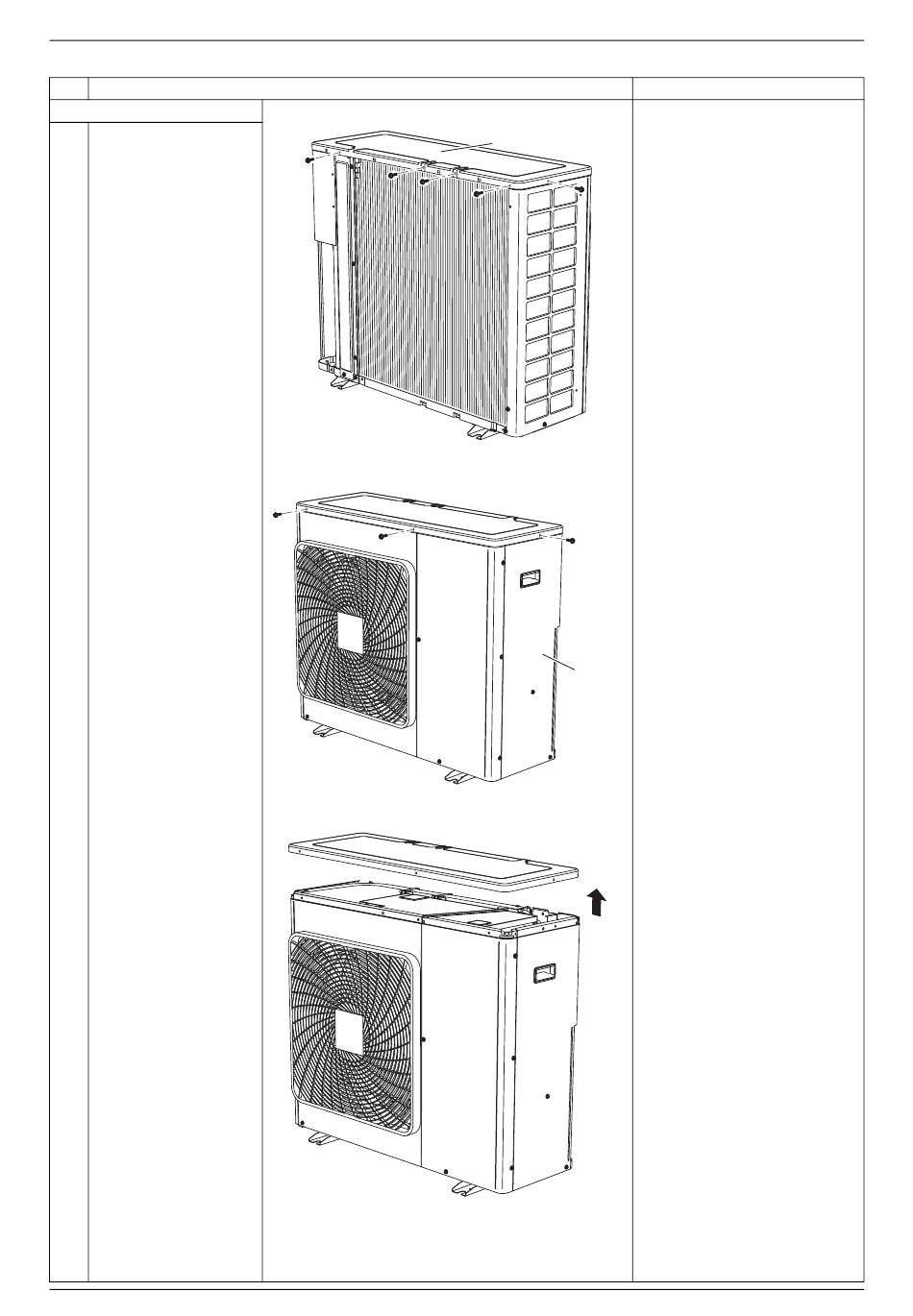

Step
3. Remove the top panel.
Remove the 4 screws
1
on the back and the
screw on the left side.
Remove the 2 screws
2
on the front and the
screw on the right side
panel.
Lift the top panel and
3
remove it.
Removal Procedure
Procedure
Top panel
(R6373)
Right side
panel
(R17070)
(R6189)
Removal of Outer Panels
Points
3
