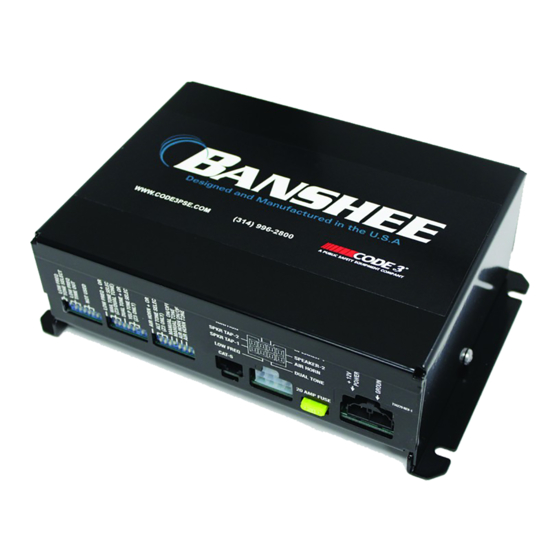

INSTALLATION & OPERATION MANUAL
ALL-IN-ONE
Low Frequency,
Dual Amplifier,
& Electronic Air Horn
Secondary Acoustical
Warning Device
Model 3450
WARNING
Sirens produce loud sounds that may damage hearing
•
Wear hearing protection when testing
•
Use siren only for emergency response
•
Roll up windows when siren is operating
•
Avoid exposure to the siren sound outside of vehicle
Read all instruction and warnings before installing and using.
IMPORTANT:
INSTALLER:
B
ANSHEE
This manual must be delivered to the end user of this equipment.
Contents:
Introduction.............................................................................2
Standard Features...................................................................2
Low Frequency Configuration.................................................3
Low Frequency Tone.....................................................3
Low Frequency Time-Out..............................................3
Dual Tone Configuration..........................................................4
Z3 Dual Tone Operation..................................................4
Z3 Dual Tone Operation (WAIL).................................4
Z3 Dual Tone Operation (YELP).................................4
Z3 Dual Tone Operation (ALT TONE).........................5
Universal Dual Tone (non-Z3 systems)..........................5
Electronic Air Horn Configuration...........................................5
Input Polarity Configuration....................................................6
Additional Z3 Functions...........................................................6
Z3 MANUAL Operation..................................................6
Z3 AIR HORN Operation.................................................6
Unpacking & Pre-installation...................................................7
Installation & Mounting............................................................7
Power Harness Connections...................................................8
Input/Output Harness Connections........................................8
Siren Wiring Diagram...............................................................9
Siren Specifications..............................................................10
Troubleshooting....................................................................11
Warranty.................................................................................12
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Code 3 Banshee
-
Page 1: Table Of Contents
INSTALLATION & OPERATION MANUAL ALL-IN-ONE Low Frequency, Dual Amplifier, & Electronic Air Horn Secondary Acoustical Warning Device Model 3450 ANSHEE Contents: Introduction................2 Standard Features..............2 Low Frequency Configuration..........3 Low Frequency Tone.............3 Low Frequency Time-Out..........3 Dual Tone Configuration............4 WARNING Z3 Dual Tone Operation..........4 Z3 Dual Tone Operation (WAIL).........4 Z3 Dual Tone Operation (YELP).........4 Z3 Dual Tone Operation (ALT TONE)......5... -
Page 2: Introduction
Electronic Air Horn. All features can be quickly configured by setting the easy to access DIP switches. The Banshee Siren is designed to be used as a secondary acoustical warning device. It is not certified to meet SAE J1849 or California Title 13. -
Page 3: Low Frequency Configuration
Low Frequency input is activated, the Banshee can generate one of three Low Frequency tones. The Low Frequency input can be activated with a momentary switch and the Banshee will generate the Low Frequency tone for 7.5 to 60 seconds based on the Time-Out configuration settings (see Low Frequency Time-Out). -
Page 4: Dual Tone Configuration
Banshee Dual Tone operation. Z3 Dual Tone Operation - The Banshee can be connected with a CAT5 Cable to the AMP-2 port on the Z3 or to any port on the Z3 HUB. The Dual Tone input does not need to be connected when the Banshee is used with a Z3. The Dual Tone feature will operate automatically when one of the three siren tone buttons on the Z3 Control Head are active (WAIL, YELP, ALT TONE) and the Z3 is generating a tone. -
Page 5: Z3 Dual Tone Operation (Alt Tone)
Electronic Air Horn Configuration The Electronic Air Horn can be used with a primary siren or as an independent Electronic Air Horn. The Banshee does not require a signal from a primary siren to activate the Electronic Air Horn feature. The Banshee will generate the configured tone as long as the Air Horn input is activated. -
Page 6: Input Polarity Configuration
Z3 AIR HORN Operation - To enable the AIR HORN feature, move the appropriate DIP switch to the ‘Up’ position (see Figure 9, Position 7). If this feature is enabled, the Banshee will generate the Electronic Air Horn tone when the AIR HORN button on the Z3 Control Head is pressed. -
Page 7: Unpacking & Pre-Installation
Figure 10 The Banshee may be mounted in the trunk or a console near the primary siren. There are four mounting slots on the Banshee (mounting hardware not included). All connections are made on one side of the siren (see Figure 10). Mount the siren to allow for easy access to this side. All connections are made to the quick disconnect harnesses. -
Page 8: Power Harness Connections
Power Harness Connections The Banshee is designed so that the main Power Harness can be connected to the vehicle battery at all times. The siren will enter into a low current standby mode when none of the inputs are activated. Connect the BLACK ground wire to the negative terminal of the battery. Use the appropriate wire gauge rated at 125% of the current required to operate the Banshee (see Specifications for current draw). -
Page 10: Siren Specifications
~ 66 Vpp Weight: 3.2 lbs (1.4 Kg) Size: 8.5”L x 5.7”W x 2.8”H Temperature: -22F thru +149F (-30C thru +65C) SAE Equipment Type EVS1 Banshee Siren System - Parts List Ref No. Description Part No. Qty. Banshee Amplifier T54124... -
Page 11: Troubleshooting
D. NO INPUT SIGNAL D. CHECK WIRING AND DIP SWITCH SETTINGS E. LOW VOLTAGE TO SIREN AMPLIFIER E. CHECK WIRING AND VERIFY VEHICLE (< 10VDC AT BANSHEE POWER PORT) VOLTAGE EXTERNAL 20A FUSE BLOWS A. AMPLIFIER POWER WIRES REVERSED A. CHECK POLARITY... -
Page 12: Warranty
*Code 3®, Inc. reserves the right to repair or replace at its discretion. Code 3®, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or reinstallation of products requiring service and/or repair; nor for the packaging, handling, and shipping: nor for the handling of products returned to sender after the service has been rendered.
