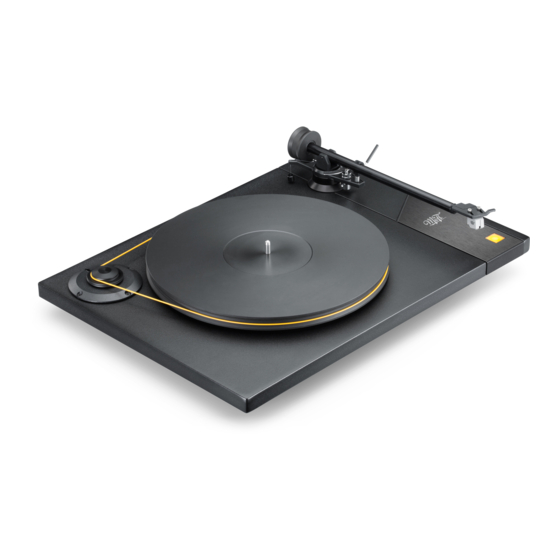

- Page 2 IN THE BOX PrecisionDeck Turntable Power Cord Dustcover Counterweight Delrin Platter Additional Parts ‰ • Hex Wrench (2) Platter Belt • Anti-skate Weight • Stylus Brush RCA Interconnects...
- Page 3 ASSEMBLY Make sure PrecisionDeck is placed on a level surface If cartridge is not included, follow cartridge manufacturer’s installation instructions Carefully place the Delrin platter ‰ on the bearing hub, making sure it spins freely. Install the turntable belt, with the belt attached to the top pulley for 33 RPM records, and the bottom pulley for 45 RPM records.
- Page 4 If your model came with a preinstalled MoFi cartridge, simply install the counterweight until it lines up to the assigned location on the endstub.
- Page 5 VTA AND AZIMUTH If PrecisionDeck came with MasterTracker™ preinstalled, the following steps were completed at the factory After setting tracking force and anti-skate, adjust the tonearm’s height. Loosen the hex screw located at the base of the tonearm to raise or lower the arm height, and tighten once the arm is Front Lines parallel to the record surface.
- Page 6 CONNECTIONS AND LEVELING Install the RCA interconnects and ground wire to your preamp’s phono section, and then connect the power cord from the turntable to any outlet or power conditioner of your choice. If the turntable is on an unleveled surface, place a bubble level on the platter, then carefully adjust each foot until the turntable’s...
- Page 7 STYLUS CARE AND DUSTCOVER Back to Front Keep your records clean by using a high-quality record brush and record cleaner After each play, gently clean your stylus, always brushing back-to- front using the supplied stylus brush. We also recommend using a liquid stylus cleaner such as Mobile Fidelity LP#9.
- Page 8 PrecisionDeck Motor 300 RPM AC Synchronous Speeds 33 1/3 RPM, 45.0 RPM Platter 6.8 lb Delrin ‰ Wow & Flutter 0.017% – 0.025% Signal-To-Noise Ratio 74dB Power Supply Requirements 120V 60Hz, 220-230V 50Hz, 100V 50Hz Power Consumption < 5W Dimensions 20.75"...
- Page 9 Fuse Information Before changing the fuse, unplug the power cord. Brand Model 5ST 500R Instructions for Changing the Fuse Technical Data Slow Blow, Glass, 5mm x 20mm, .5A x 250VAC Rotate the fuse head counterclockwise with a flat 5mm screwdriver, remove fuse, and Location Back panel of turntable change if needed.
- Page 10 MoFi Electronics – 1811 W Bryn Mawr Ave Chicago IL...
