Before You Begin:

Recommended Tools:

Note on Anchor Bolts:

Note on Electric Drills:

Note on Cutting and Drilling:

1) Please read all instructions and notes carefully. Check the Parts List or Bill of Materials for
any missing parts and gather necessary tools. To prevent scratching of painted materials,
place on a tarp, paper, or other protective material.
2) You may be required to obtain a building permit for this structure from your local building
authority. Contact your local building department for details.
3) Note that this shade structure is not designed to carry additional loads such as hanging
heavy plants, swings, people, or other objects.
Saftey Glasses, Tape Measure, Carpenters Level, Framing Square, Hex Head Nut Drivers,
Chalk Line, Electric Drill w/ Bits, Pliers, Metal Hack Saw, Silicone Caulking,
Regular and Phillips Screw Drivers
Anchors to attach the cover to the existing structure are not included, and must be purchased
separately. Be sure the structure is solid and capable of supporting this cover. The required minimum
specifications for anchor bolts are: able to withstand 800 lbs. shear force and 800 lbs. pull-out strength.
We recommend lowering the speed of your drill during this installation. Installing Tek screws
at a high rpm may cause the Tek screws to become damaged or break during installation.
Cutting and drilling will cause metal shavings. These shavings must be carefully removed by
sweeping or brushing. If this is not done, the metal shavings will quickly rust and stain the
surface finish.

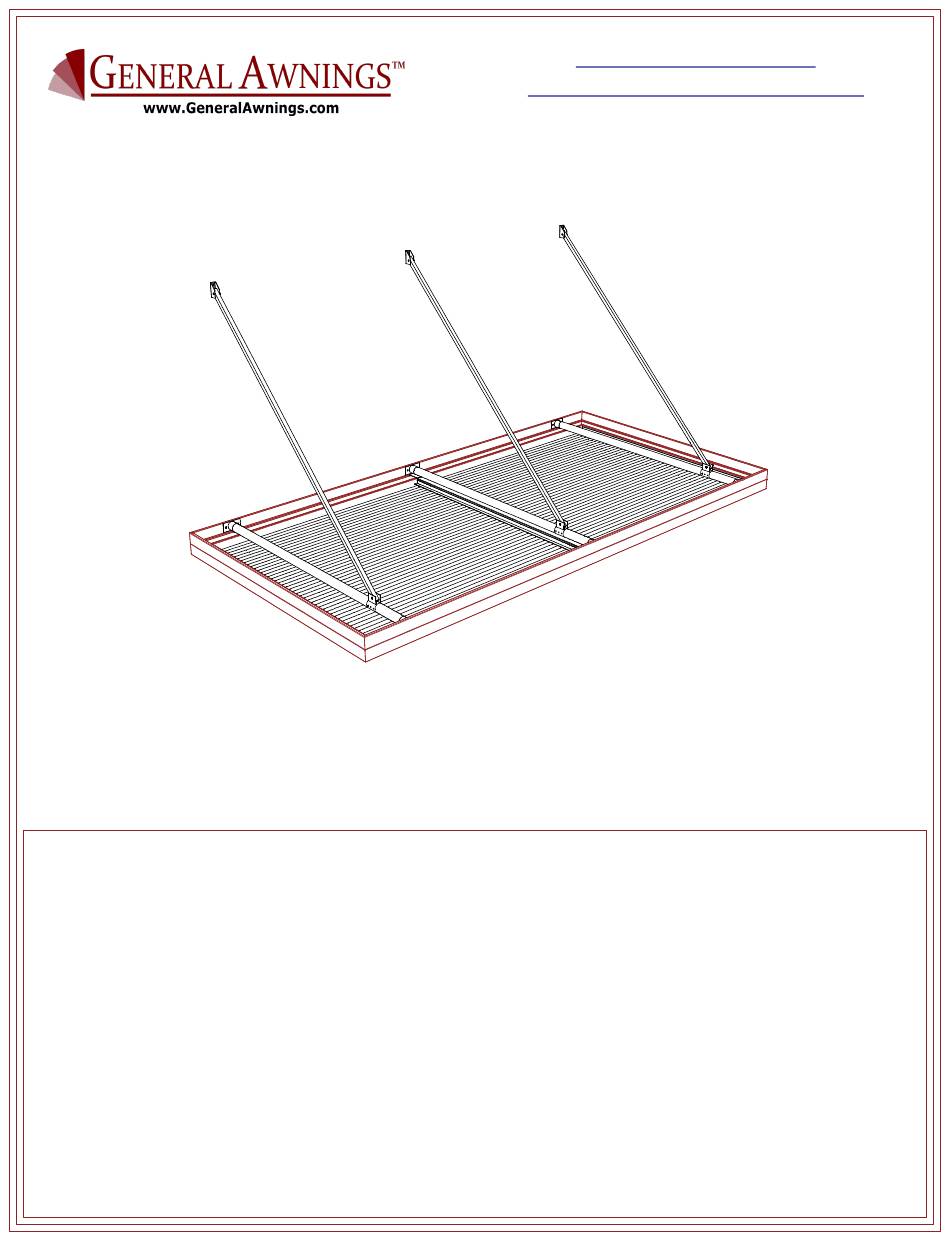

IMPERIAL LATTICE
ASSEMBLY INSTRUCTIONS
Orig. - 1/12/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMPERIAL LATTICE and is the answer not in the manual?

Questions and answers

Related Manuals for General Awnings IMPERIAL LATTICE

Summary of Contents for General Awnings IMPERIAL LATTICE

  • Page 1 IMPERIAL LATTICE ASSEMBLY INSTRUCTIONS Before You Begin: 1) Please read all instructions and notes carefully. Check the Parts List or Bill of Materials for any missing parts and gather necessary tools. To prevent scratching of painted materials, place on a tarp, paper, or other protective material.
  • Page 2 IMPERIAL LATTICE PARTS LIST 1. Horizontal Support Tube 2. Diagonal Support Tube 3. Fascia Fitting Bracket 4. Slide Fitting Bracket Part Code: 30300 Part Code: 30308 Part Code: 50156 Part Code: 50130 5. Mounting Bracket 6. Front & Rear Gutter 7.
  • Page 3 GUTTER SPLICE (OPTIONAL) -If the gutter is in two or more pieces, insert an equal amount of the provided gutter splices into each of the square ends of the gutters and secure as shown using (12) 1/4" - 20 x 3/4" Machine Screws with Nuts (see Fig. S-1). -Apply a generous amount of caulk around the bottom of the splice to prevent water leaks through the splice (see Fig.
  • Page 4 STEP 1 -Mark the locations of each support brace on the front and rear gutters. Be sure to match the spacing on both gutters so that the supports will line up properly. If drawings were received from the manufacturer, use those as the guide. -At each center support mark, attach a lattice splice bracket to the front and rear gutters using (4) #12 x 1-1/4"...
  • Page 5 STEP 2 -Position a lattice splice tube over each lattice splice bracket on the rear gutter. Attach the tube to the bracket using (4) #12 x 1-1/4" HWH #5 Tek screws per bracket as shown in Fig. 2-1. -Insert a horizontal support tube into each slide fitting bracket on the rear gutter. It may be necessary to set up a temporary support (such as two ladders and a 2x4 board spanning between them) to hold up the ends of the horizontal support braces and the lattice splice tubes until the support braces are completed.
  • Page 6 STEP 3 -If not already done, attach the bottom angle trim to the projection fascia using #8 x 3/4" HWH #2 Tek screws at 12" on center beginning approximately 3/4" from the mitered edge (see Fig. 3-1). Also attach the bottom angle trim to both sides of the lattice splice tube, following the same pattern for the projection fascia.
  • Page 7 STEP 5 -Determine how many lattice tubes will go in each roof section (the area between splices), and place that amount in one section. -Place the top piece of angle trim on top of the lattice tubes. Attach the angle trim to the projection fascia / splice tube using #8 x 3/4"...
