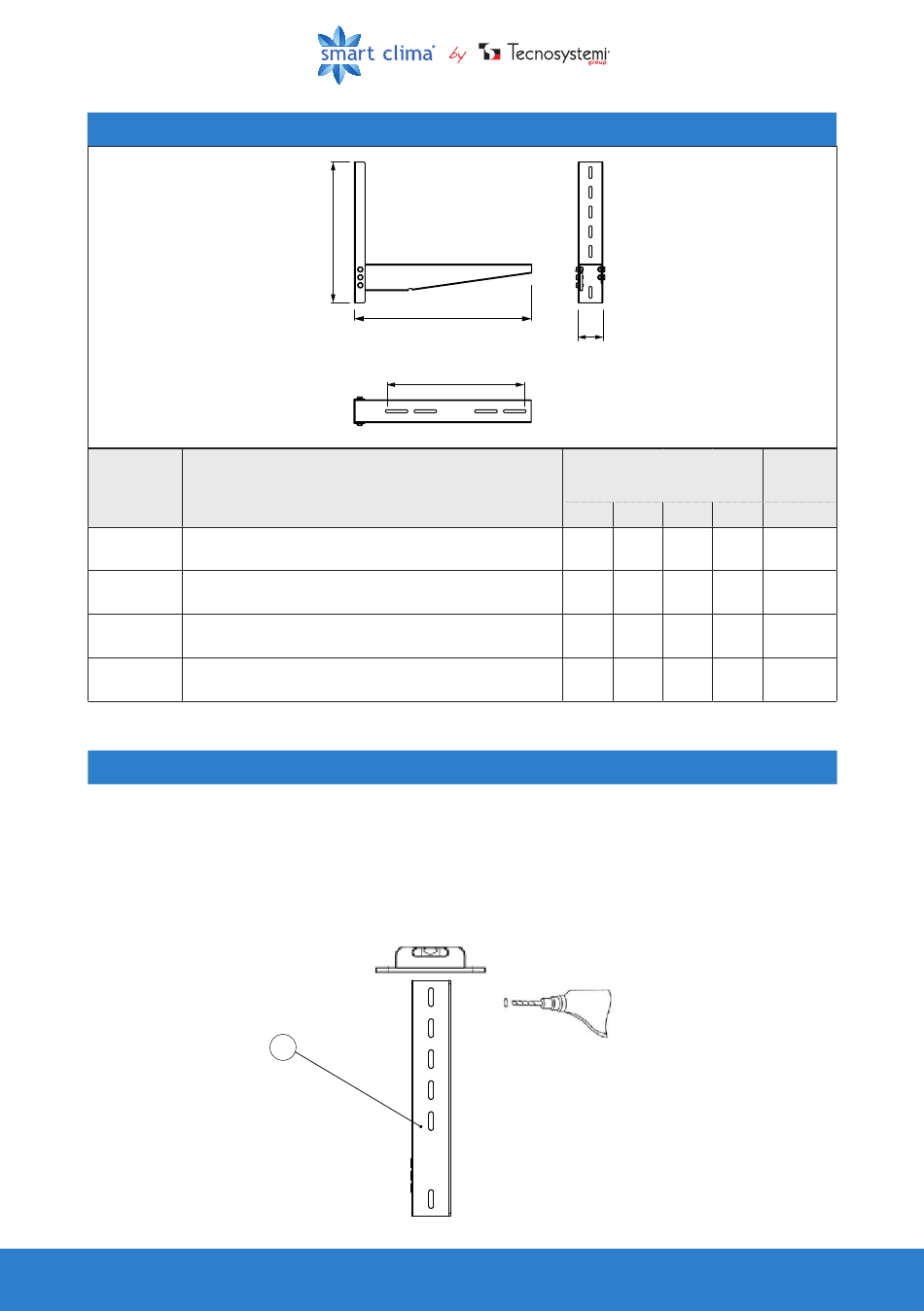

DIMENSIONI / DIMENSIONS
CODICE / DESCRIZIONE /
CODE DESCRIPTION
MENSOLA INDUSTRIALE TSE 400 /
SCD500008
"INDUSTRIAL TSE" 400 BRACKET
MENSOLA INDUSTRIALE TSE 450 /
SCD500009
"INDUSTRIAL TSE" 450 BRACKET
MENSOLA INDUSTRIALE TSE 500 /
SCD500022
"INDUSTRIAL TSE" 500 BRACKET
MENSOLA INDUSTRIALE TSE 550 /
SCD500023
"INDUSTRIAL TSE" 550 BRACKET
ASSEMBLAGGIO MESSA IN OPERA / ASSEMBLY AND COMMISSIONING
STEP 1
Posizionare il particolare mensola sx (2) a muro verificando che sia correttamente in bolla.
Procedere con il fissaggio utilizzando tasselli idonei.
Fix the bracket (2) on the wall to get the perfect levelling using proper dowel pins.
2
Accessories for
Air Conditioning
Ventilation
B
Solutions
C
Accessories
For Heating
D
2
Air Curtains and
Accessories
Multi - Zone
Air Control System
Instruments &
Tools
A

DIMENSIONS /

DIMENSIONS
A (mm) B (mm) C (mm) D (mm)
140 800
140 800
140 850
140 850
PORTATA
WEIGHT
CAPACITY
Kg
1006 780 400
1205 940 450
1405 1180 500
1605 1380 550
