Summary of Contents for PCB PCB Load & Torque 1630-06C
- Page 1 Model 1630-06C STRAIN GAGE LOAD CELL Installation and Operating Manual For assistance with the operation of this product,contact: PCB Load & Torque, Inc. Toll-free: 866-684-7107 24-hour SensorLine™: 716-684-0001 Fax: 248-888-8266 E-mail: LTInfo@pcbloadtorque.com Web: www.pcbLoadTorque.com...
- Page 2 “Lifetime Warranty Plus” on all Platinum Stock Products number, which we use to reference any information you sold by PCB and through its limited warranties on all other have already provided and expedite the repair process. PCB Stock, Standard and Special products. Due to the...
- Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
- Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料...
- Page 5 Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
-
Page 6: Table Of Contents
9.1 Mechanical Trouble Shooting ......................5 9.2 Electrical Trouble Shooting ....................... 5 10.0 CALIBRATION / REPAIR SERVICES ................5 10.1 RMA / Purchase Order ........................5 11.0 WARRANTY ........................5 PCB Load & Torque, Inc. Toll-Free in USA 866-684-7107 716-684-0001 www.pcbloadtorque.com... -
Page 7: Introduction

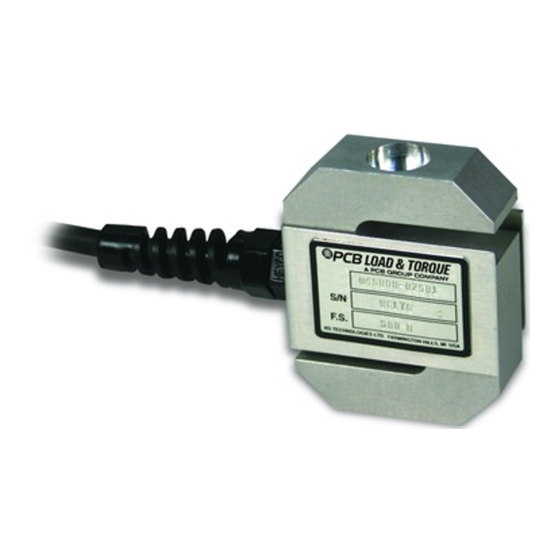

S-TYPE LOAD CELL OPERATION MANUAL 3.1 Dimensions 1.0 INTRODUCTION S-type load cells manufactured by PCB Load & Torque, Inc. are accurate strain gage sensors used for weighing and force measurement. Their high accuracy makes them ideally suited for critical weighing applications. S-type load cells are... -
Page 8: Electrical Drawing / Western Regional Std
5.2 Output Polarity 6.0 CALIBRATION The following figure describes the output polarity. Every S-type load cell manufactured by PCB Load & Torque, Inc. has been fully calibrated per ISO/IEC 17025 procedures, and meets all published specifications. Each load cell will... -
Page 9: Hysteresis
Such devices should only be wiped with a damp cloth, and never be submerged or have liquids poured on them. Never use a pressure washer on the load cells. PCB Load & Torque, Inc. Toll-Free in USA 866-684-7107 716-684-0001... -
Page 10: Trouble Shooting
If an initial evaluation shows that a transducer requires repair, 9.1 Mechanical Trouble Shooting PCB will provide the customer with an estimate prior to taking A mechanical checklist includes: any corrective action. - Page 11 Size (Length x Height x Width) 2.00 in x 2.50 in x 0.625 in 51 mm x 64 mm x 16 mm [7] Weight 0.23 lb 104 g PCB Load & Torque, Inc. Mounting Thread 1/4-28 thread No Metric Equivalent 24350 Indoplex Circle Housing Material...
- Page 12 PCB Load & Torque Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others without DESCRIPTION the written consent of PCB Load and Torque Inc. ADDED NOTE 1 - 04.09.20, PTE...
